Using the effects of the VariOS (Mixer)
V-Producer has a Mixer window in which you can control the level, pan, etc., of the six parts of the
VariOS, and an Effect window in which you can adjust the effect parameters.

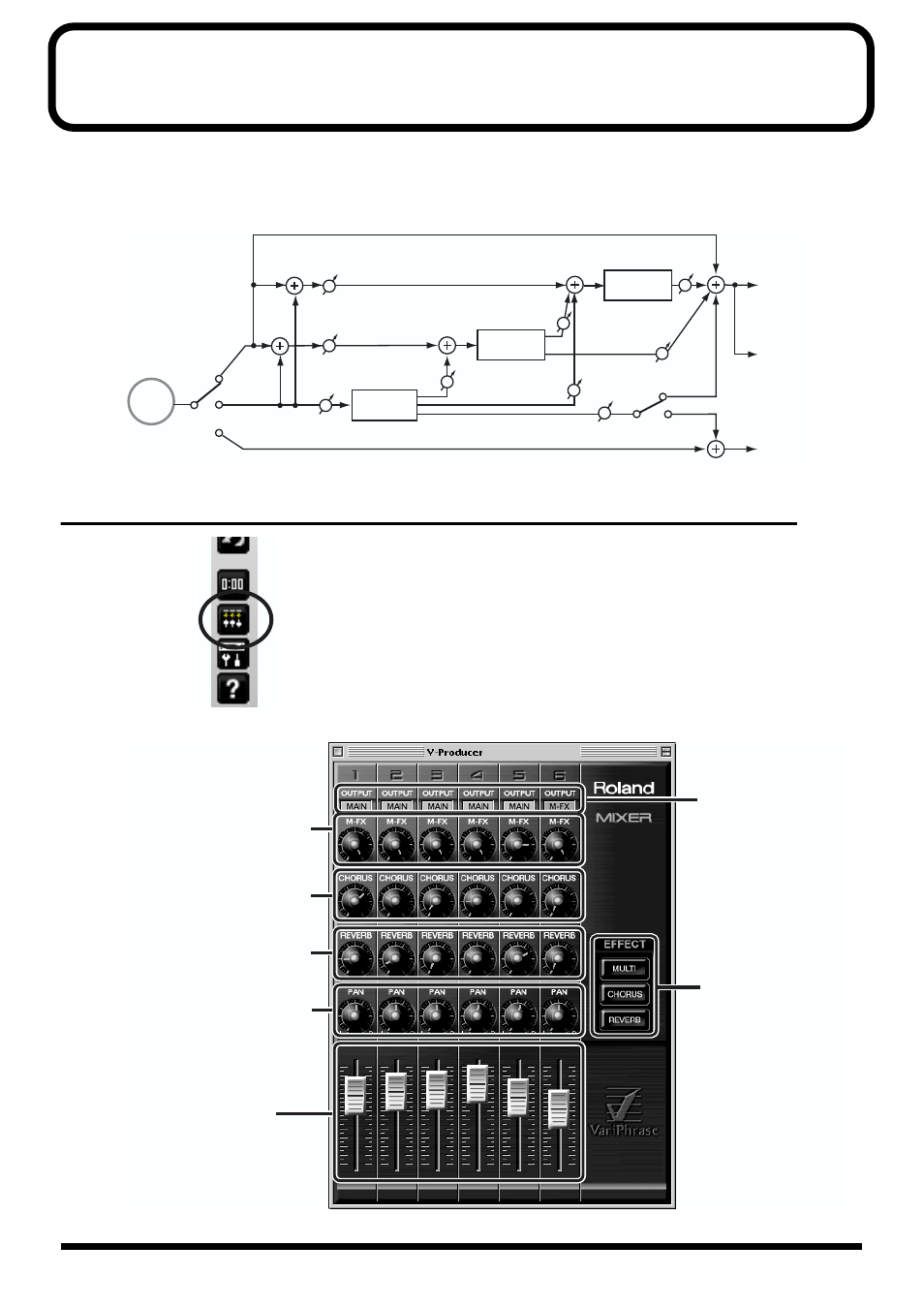

The following diagram shows the effect signal flow.
fig.newmixer_80
Using the Mixer
fig.04-MIX01
The mixer window will appear when you click the mixer button in the tool bar
of the main window.
fig.04-MIX02E
Multi-FX
Chorus
Reverb
MAIN
OUT
DIGITAL
OUT
DIRECT
OUT
Chorus Rev
Send Level
Multi-FX Cho
Send Level
Multi-FX Rev
Send Level
Multi-FX
Master Level
Chorus
Master Level
Reverb
Master Level
Multi-FX Send
Level
Chorus Send
Level
Reverb Send
Level
Multi-FX
Out Assign
OUTPUT
MAIN
M-FX
DIR
Sound
Generator
Effects
Opens the effect window
corresponding to each
button
M-FX send level
Adjusts the depth of the multi-effect
* Valid only when output assign is set to
[M-FX]
Chorus send level
Adjusts the depth of the chorus
* This has no effect if output assign is
set to [DIR]
Reverb send level
Adjusts the depth of the reverb
* This has no effect if output assign is
set to [DIR]
Panpot
Adjusts the stereo position of
each part
Slider (level)
Adjusts the volume of each
Output assign
Specifies the output
destination of the original
sound
