Installation
fig.02-oms-set-3.eps_30

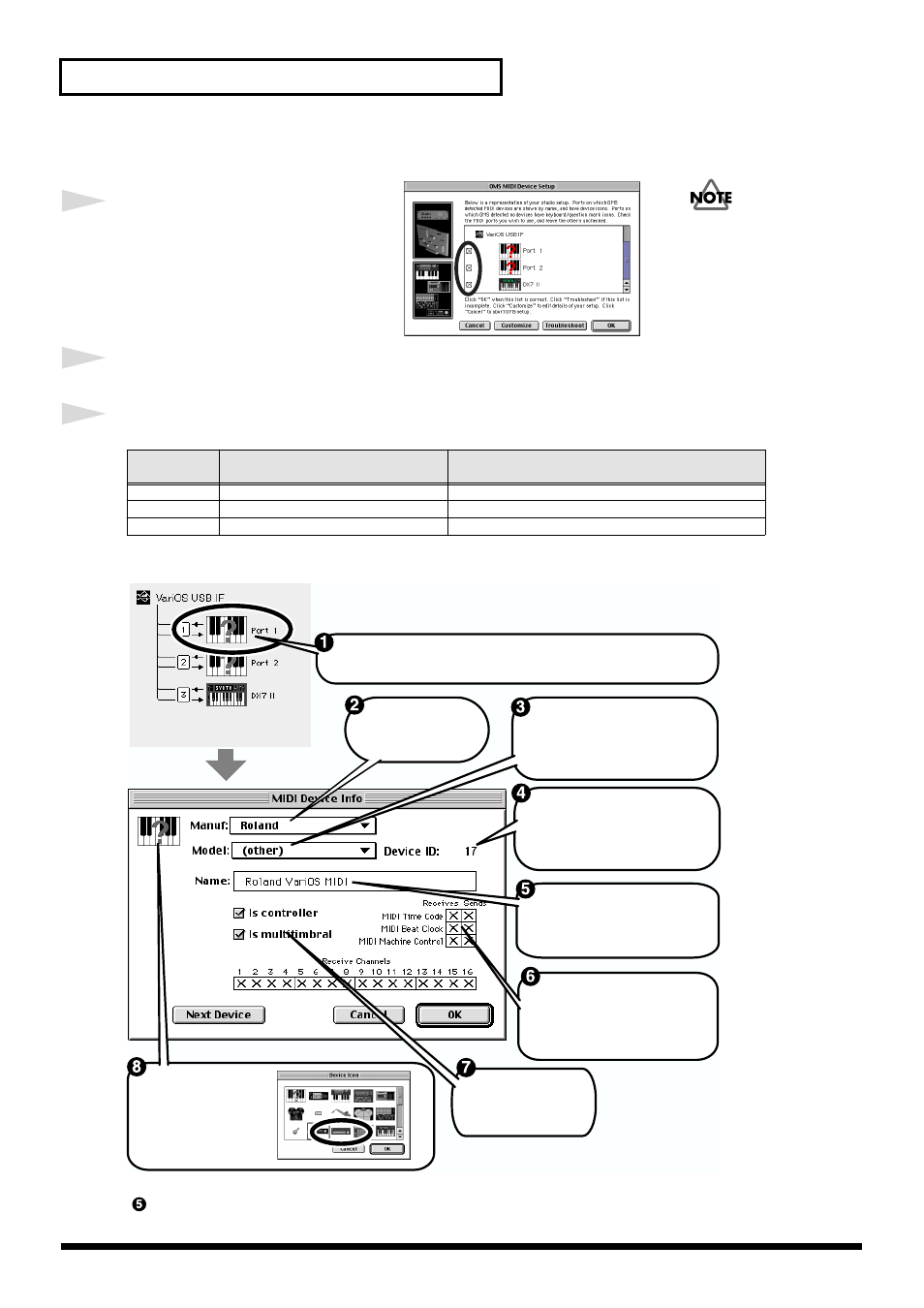

6
The OMS MIDI Device Setup window
will appear.
Add a check mark to all of the VariOS
USB IF ports (Port 1, Port 2, DX7 II),
and click [OK] .
7
In the screen for saving the studio setup, click [Save] to save the setup.
8
The ports for VariOS USB IF will be displayed. Each port has the following function.
Use the following procedure to specify the MIDI device for each VariOS port.
fig.02-oms-set-4.eps
Use the same procedure to make settings for the other ports (“Port 2” and “DX7 II”). Input field
as follows.
Port name
displayed
Assign the following port name Function
Port 1 Roland VariOS MIDI Port for the VariOS sound module section
Port 2 Roland VariOS External MIDI Port for the VariOS rear panel MIDI connector
DX7 II Roland VariOS Sync Macintosh internal synchronization (sync) port
A problem with the OMS
Setup program causes the
third port to be displayed
as
“DX7 II.” Please rename
this port in step 8.
Double-click "Port 1" for "Roland VariOS." The MIDI device
information dialog box shown below will appear.
Specify "Roland" as
the manufacturer
name.
Select the model. Since the
VariOS does not appear in the
list, select "Other."
Input the device ID number of the
sound module. Click the number
and enter it from the keyboard.
For the VariOS, enter "17."
Assign a name to the sound
module. Click the mouse here,
and enter "Roland VariOS MIDI."
Make transmission and reception
settings for synchronization
messages such as MIDI time
code. Check all of these boxes.
Check "Controller,"
"Multitimbral," and all
"Receive Channels."
Click the question mark
icon, and in the window
that appears, choose
an icon that you like
and double-click it.
