BATTERY REPLACEMENT SPECIFICATIONS
USE ONE 9-VOLT BATTERY

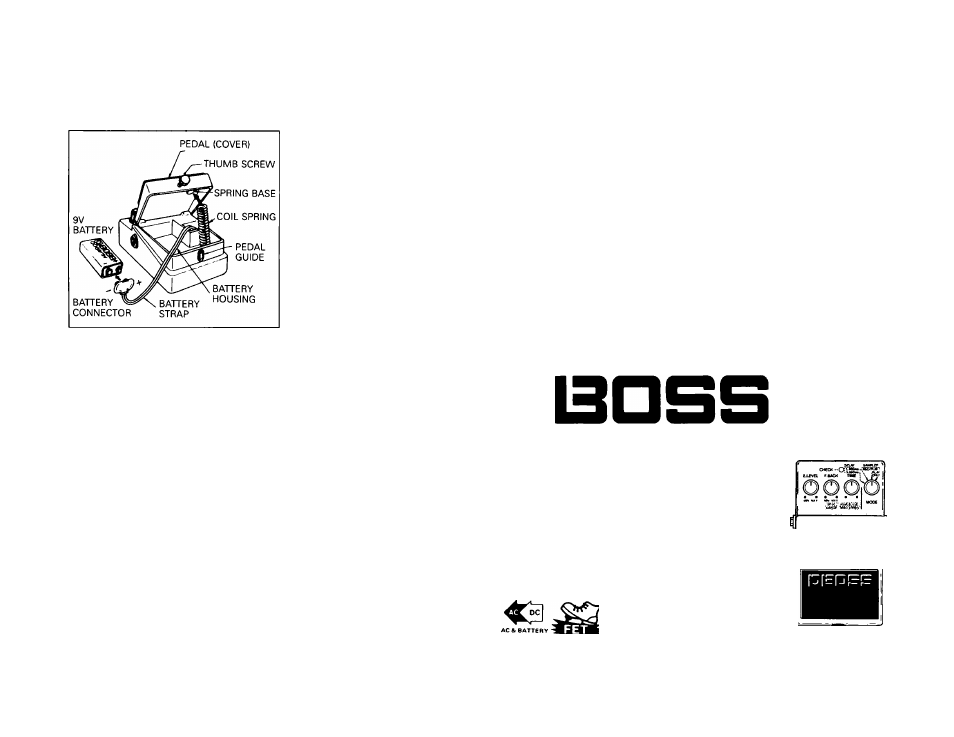

• Loosen the Screw of pedal to open it.
• Take out the battery from the Battery Housing
and disconnect the Battery Strap.
• Replace with a new battery and connect the
Battery Strap.
• Put the Coil Spring to the Spring Base and
close the Pedal.
• Make sure that the Battery Strap is not
caught in the Pedal or Coil Spring.
• Insert the screw into the Pedal Guide and
firmly tighten the screw.
Power ............................................ 9V Dry Battery x 1, AC adaptor (BOSS PSA Series)
Current Draw ............................... 45 mA to 60mA (9VDC)
Controls ........................................Effect Level, Feedback Level, Time (Sampling/Delay)
Others ........................................... Mode Selector Switch, Pedal Switch (Normal/Effect Selector
in Delay mode. Trigger Switch in Sampler mode)
LED Indicator (= Battery Check Indicator)
Jacks .............................................. Input, Output, Trigger In, AC Adaptor (PSA Series)
Sampling Time ............................. 200ms (MIN) to 800ms (MAX)
Delay Time ................................... 50ms (MIN) to 800ms (MAX)
Frequency Response ................Sampling/Delay sound: 40Hz to 7kHz (ijdB)
Direct Sound: 10 Hz to 60kHz (ii dB)
Residual Noise ............................Sampling/Delay mode: -95dBm (IHF-A)
Normal mode: — lOOdBm or less (IHF-A)
Input Impedance .........................1 Mil (FET Input)
Output Load Impedance ............lOkilormore
Dimensions ...................................70(W) x 55(H) x 125(D) mm/2%"(W) x 2yi6"{H) x 4'5/i6"(D)
Weight ...........................................450g/1lb
‘ Specifications are subject to change without notice.
Printed in Japan '85 Feb E-3
RADIO AND TELEVISION INTERFERENCE
"Warning - This equipment has been verified to comply with the limits for a Class B computing device,
pursuant to Subpart J, of Part 15, of FCC rules. Operation with non>certified or non-verified equip­
ment is likely to result in interference to radio and TV reception."
The equipment described in this manual generates and uses radio-frequency energy. If it is not
installed and used properly, that Is. in strict accordance with our instructions. It may cause interfer­
ence with radio and television reception.
This equipment has been tested and found to comply with the limits for a Class B computing
device in accordance with the specifications in Subpart J. of Part 15, of FCC Rules. These rules are
designed to provide reasonable protection against such a interference in a residential installation.
However, there is no guarantee that the interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by turning
the equipment on and off, the user is encouraged to try to correct the interference by the
following measure:
•
Disconnect other devices and their input/output cables one at a time. If the interference stops, it
is caused by either the other device or its t 'O cable.
These devices usually require Roland designated shielded I/O cables. For Roland devices, you can
obtain the proper shielded cable from your dealer. For non Roland devices, contact the manufacturer
or dealer for assistance.
If your equipment does cause interference to radio or television reception, you can try to correct
the interference by using one or more of the following measures:
•
Turn the TV or radio antenna until the interferences stops.
• Move the equipment to one side or the other of the TV or radio.
• Move the equipment farther away from the TV or radio.
• Plug the equiprnent into an outlet that is on a different circuit than the TV or radio. (That is, make
certain the equipment and the radio or television set are on circuits controlled by different circuit
breakers or fuses.)
• Consider installing a rooftop television antenna with coaxial cable lead-in between the antenna and
TV.
If necessary, you should consult your dealer or an experienced radio/television technician for
additional suggestions. You may find helpful the following booklet prepared by the Federal Com­
munications Commision:
"How to Identify and Resolve Radio-TV Interference Problems"
This booklet is available from the U.S. Government Printing Office, Washington, D.C.. 20402
Stock No. 004-000-00345-4.
O
INSTRUCTIONS
FEATURES
The BOSS DSD-2 is an effect unit that features both the sampler func­
tion 1800ms digital recorder) and the delay function (50 to 800ms).
The Trigger In Jack can be used to sync the OSD-2 with a rhythm
machine, or to sample a sound and use it as an external sound source,
or to obtain an echo effect that perfectly syncs to the rhythm.
DSD-2
Digital Sampler
/Delay
<-OUTPUT INPUT <-
T«G.IN<- I
Digital Sampler
/Delay DSD-2
> Please read these instructions carefully for proper operating procedures for the BOSS DSD-2.
