20
Connections with external devices
Connecting MIDI and audio devices

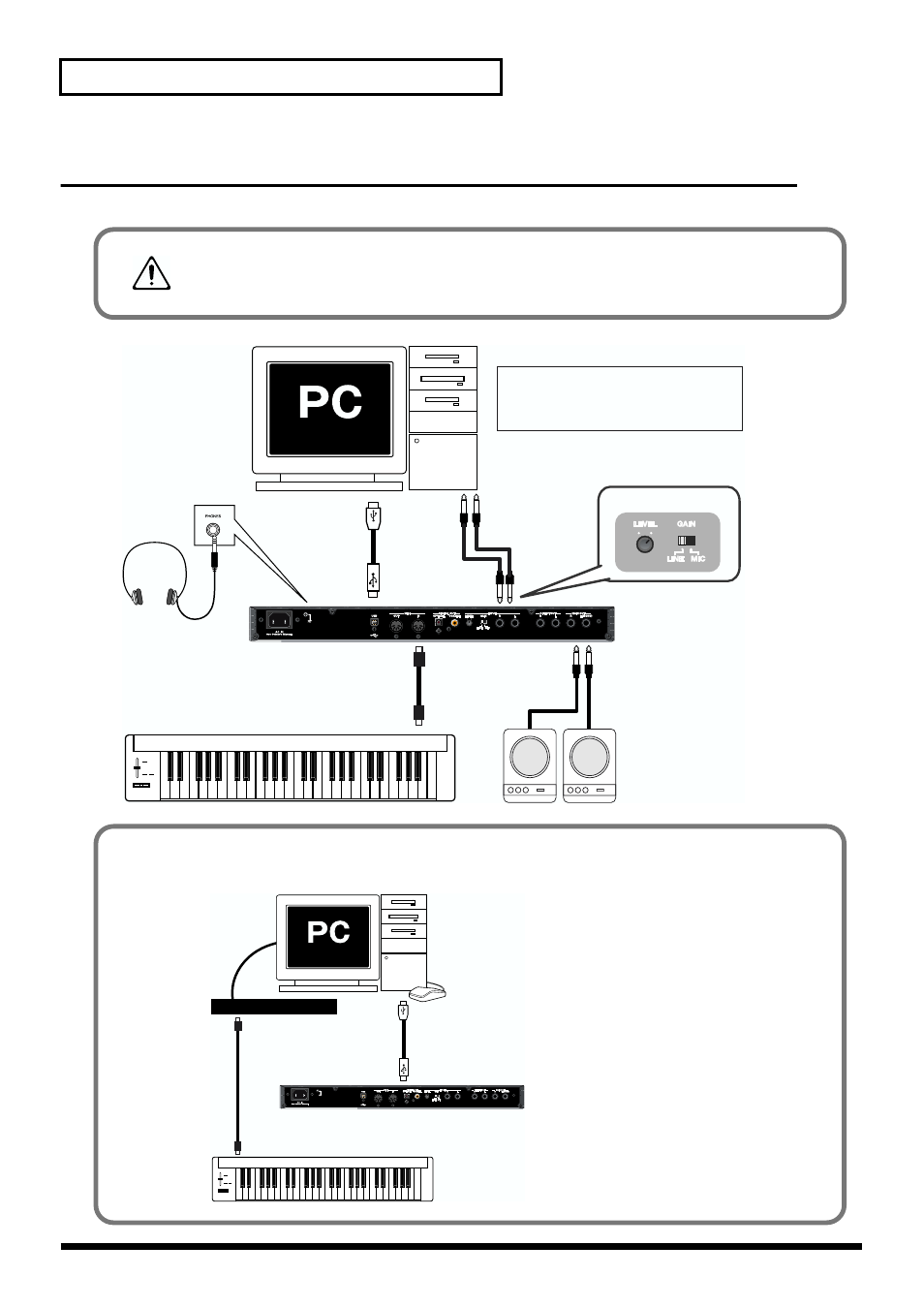

Connect your MIDI and audio devices to the VariOS as shown in the diagram below.
fig.02-connect.eps
Do not connect the USB cable at this time. You will connect it later during the
“Installation” (p. 21) procedure. (If you connect the USB cable to your computer,
installation of the USB driver will begin.)
INPUT
Front
* To prevent malfunction and/or damage to
speakers or other devices, always turn down
the volume, and turn off the power on all
devices before making any connections.
INPUT
USB cable
USB
USB connector
OUTPUT(MAIN) MIDI IN
MIDI OUT
MIDI cable
VariOS
MIDI keyboard
Headphones
Audio
outputs
Powered
Speaker
Set the GAIN switch to LINE, and
adjust the INPUT level.
* This can be switched by Audio
Input Jack (p. 113).
If you have a MIDI interface that you are already using, you may connect your MIDI keyboard
to the MIDI interface as shown below.
fig.02-MIDI.eps
USB cable
USB VariOS
MIDI keyboard MIDI OUT
MIDI IN
MIDI cable
MIDI interface
