A. Menu Hierarchy
A-2 September 2002 9128-A2-GB20-80
02-17304a

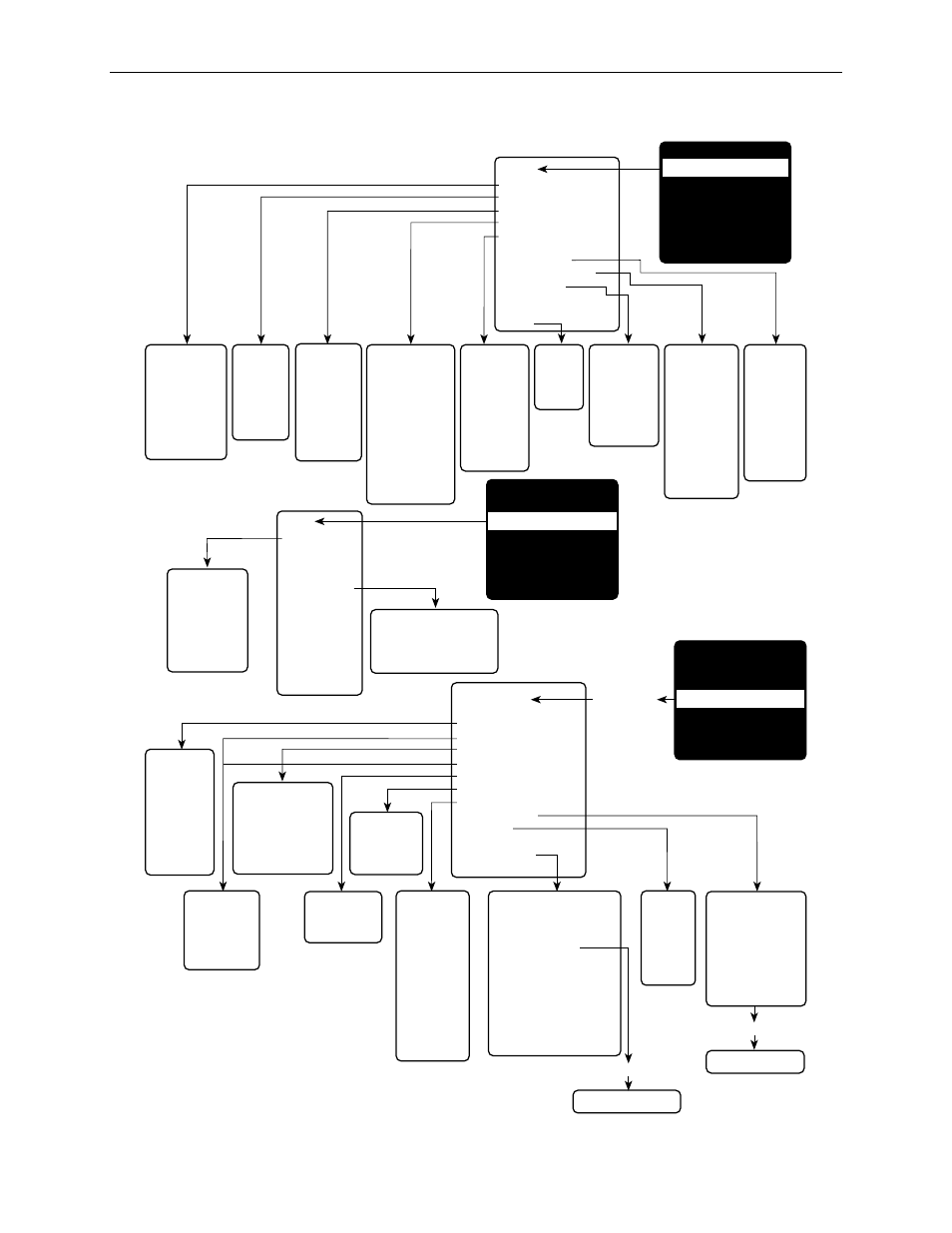

MAIN MENU
Status
Test
Configuration
Auto-Configuration
Control
Easy Install
Physical Tests
• Local Loopbacks
• Remote Loopbacks
• Send/Monitor Patterm Tests
Test
PVC Tests:
Network
Data Port
ISDN Call/
Physical Tests:
Network
Data Port
DSX-1
PRI (9128-II)
Other:
IP Ping
Lamp Test
Abort All Tests
PVC Tests
(DLCI Number)
• PVC Loopback
• Send Pattern
• Monitor Pattern
• Connectivity
• Test Call
Load
Configuration
from:
Configuration
Edit/Display
System
Network
DSX-1
Data Ports (CSU/DSUs)
Virtual Router Ports (Routers)
ISDN
Time Slot Assignment
PVC Connections
IP Path List
Management and
Communication
Auto Backup Criteria
Network and
Data Ports
• Physical
• Frame Relay
• DLCI Records
ISDN
• Physical
• Link Profiles
• DLCI Record s
MAIN MENU
Status
Test
Configuration
Auto-Configuration
Control
Easy Install
System
• Frame Relay
and LMI
• Class of
Service
Definitions
• Service Level
Verification
• General
Time Slot
Assignment
• Frame Relay
Network
Assignments
• DSX-1 to
Network
Assignments
• Sync Data Port
Assignments
(9128-II NAM)
• Clear
Assignments
PVC Connection
Table
• Source Link, DLCI,
EDLCI
• Primary Destination
Link, DLCI, EDLCI
• Alternate Destination
Link, DLCI, EDLCI
New or Modify
PVC Connection Entry
Management and
Communication Options
• Node IP
• Management PVCs
• General SNMP Management
• Telnet and FTP Session
• SNMP NMS Security
• SNMP Traps
• Ethernet
• Communication Port
• Modem Port
New or Modify
Management PVC Entry
Status
System and Test Status
LMI Reported DLCIs
IP Path Connection Status
PVC Connection Status
Timeslot Assignment Status
DBM Interface Status
IP Routing Table
Performance Statistics
Trap Event Log
Display LEDs
and Control Leads
Identity
Identity
• System
• NAM
• DBM
LMI
Reported
DLCIs
• DLCI
• Status
• CIR (bps)
PVC Connection
Status
• Source Link,
DLCI, EDLCI
• Primary
Destination Link,
DLCI, EDLCI,
Status
• Alternate
Destination Link,
DLCI, EDLCI,
Status
MAIN MENU
Status
Test
Configuration
Auto-Configuration
Control
Easy Install
Performance
Statistics
• Service Level
Verification
• DLCI
• Frame Relay
• ESF Line
• DBM Call
• Ethernet
• Clear All
Statistics
Timeslot
Assignment
Status
• Network
Timeslot
Status
• DSX-1
Timeslot
Status
System and
Test Status
• Self-Test Results
• Last System
Reset
• Health and
Status
• Test Status
IP Routing
Table
• Destination
• Mask
• Gateway
• Hop
• Type
• Interface
• TTL
Trap Event
Log
• Number of
Trap Events
• Time Elapsed
Since Event
• Event
IP Path
Connection
Status
• Device Name
• IP Address
• Status
• Discovery
Source
IP Path
List
• Add and
Display
Static
Paths
DSX-1
• Interface Status
• Line Framing Format
• Line Coding Format
• Line Equalization
• Send All Ones
Virtual Router
Ports
• DLCI Records
