Command Attributes
•
DSCP Priority Table – Shows the DSCP Priority to CoS map.
•
Class of Service Value – Maps a CoS value to the selected DSCP
Priority value. Note that “0” represents low priority and “7” represent
high priority.
Note: IP DSCP settings apply to all interfaces.
Web – Click Priority, IP DSCP Priority. Select an entry from the DSCP
table, enter a value in the Class of Service Value field, then click Apply.

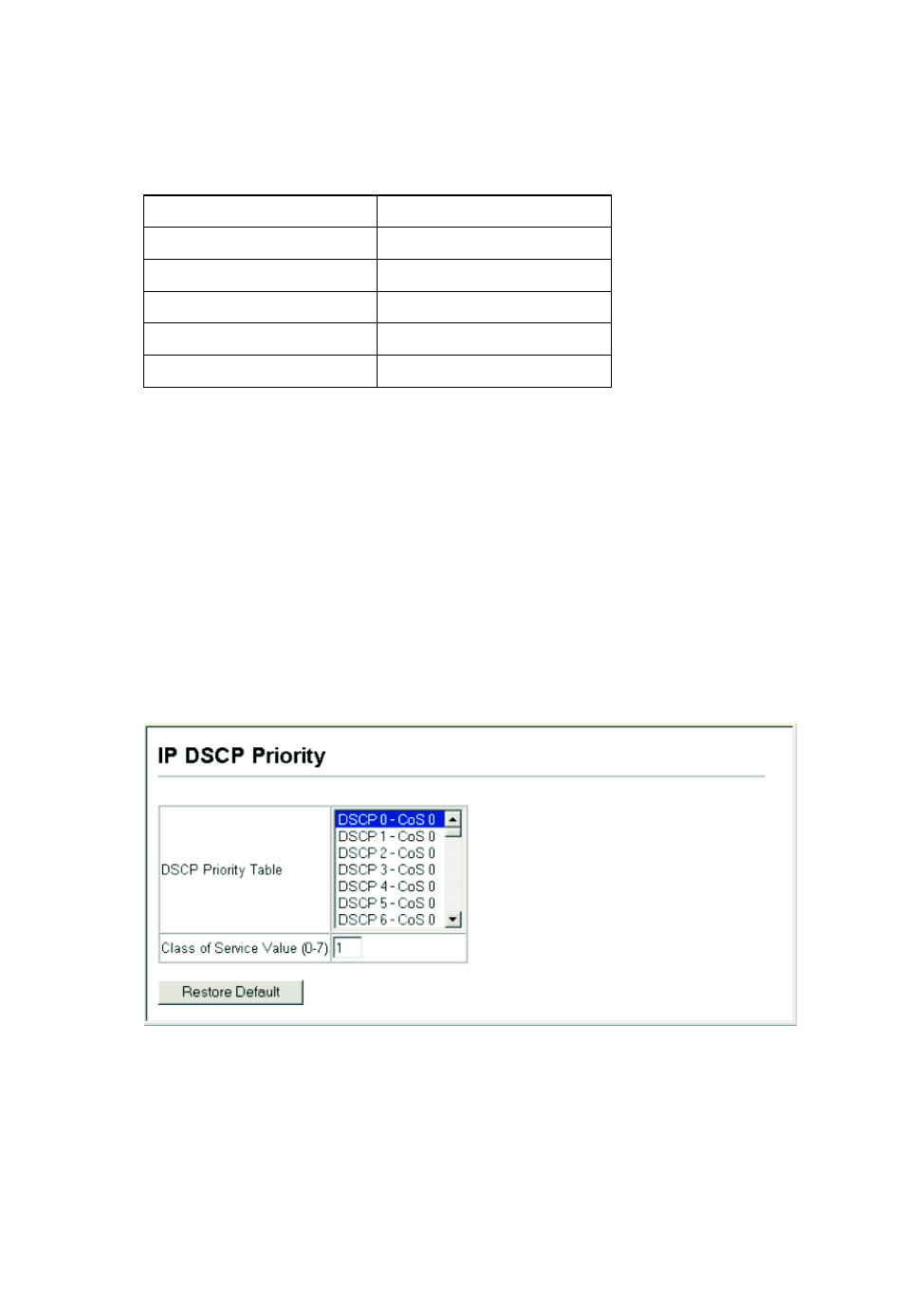

Figure 3-89 IP DSCP Priority
CLI – The following example globally enables DSCP Priority service on
the switch, maps DSCP value 0 to CoS value 1 (on port 1), and then
displays the DSCP Priority settings.
18, 20, 22, 24
3
26, 28, 30, 32, 34, 36
4
38, 40, 42
5
48
6
46, 56
7
Table 3-14 Mapping DSCP Priority (Continued)
IP DSCP Value
CoS Value
