Packet Format – This attribute includes the following packet types:
-
Any – Any Ethernet packet type.
-
Untagged-eth2 – Untagged Ethernet II packets.
-
Untagged-802.3 – Untagged Ethernet 802.3 packets.
-
Tagged-eth2 – Tagged Ethernet II packets.
-
Tagged-802.3 – Tagged Ethernet 802.3 packets.
Command Usage
Egress MAC ACLs only work for destination-mac-known packets, not for
multicast, broadcast, or destination-mac-unknown packets.
Web – Specify the action (i.e., Permit or Deny). Specify the source and/or
destination addresses. Select the address type (Any, Host, or MAC). If you
select “Host,” enter a specific address (e.g., 11-22-33-44-55-66). If you
select “MAC,” enter a base address and a hexidecimal bitmask for an
address range. Set any other required criteria, such as VID, Ethernet type,
or packet format. Then click Add.

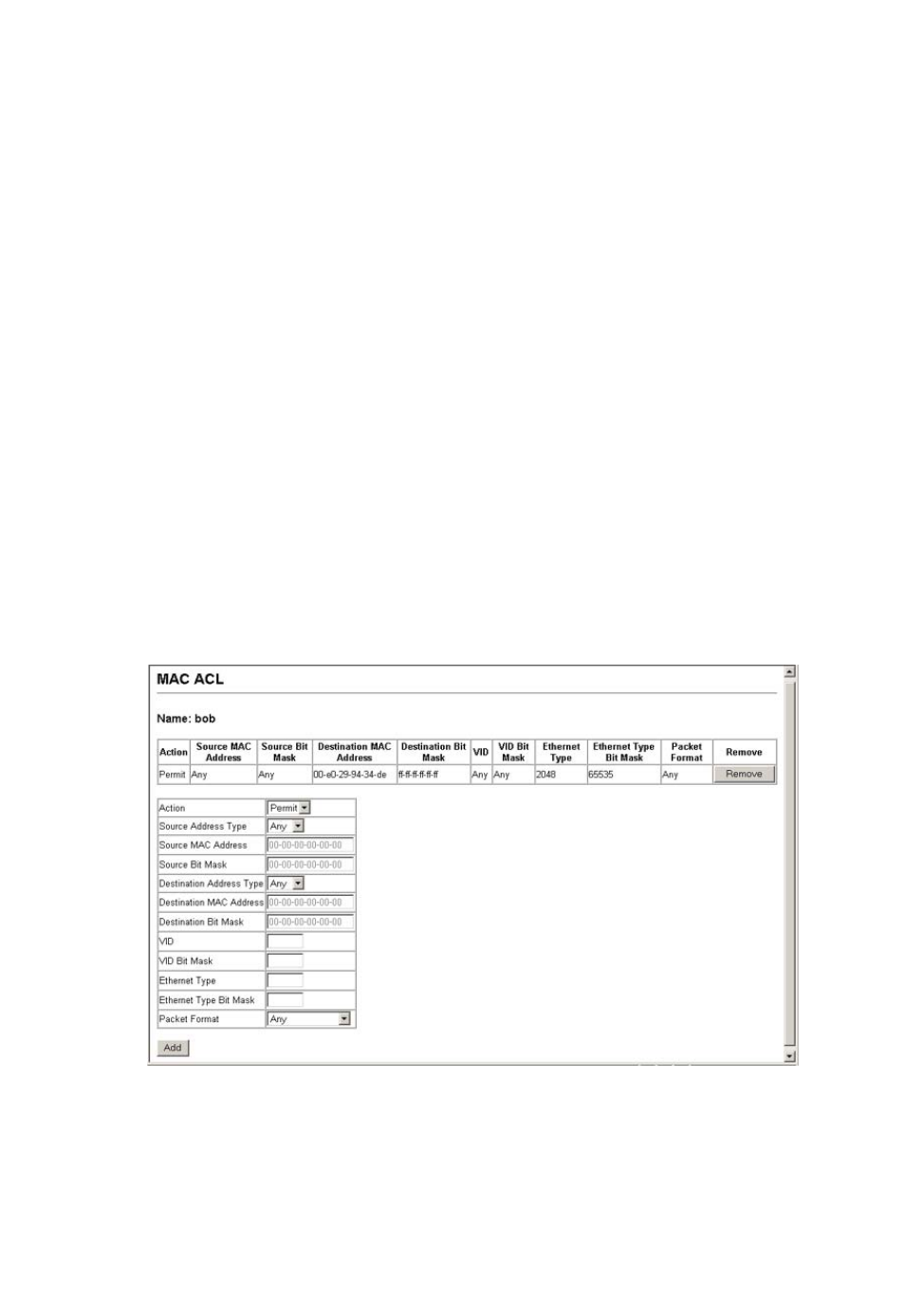

Figure 3-44 ACL Configuration - MAC
