C
ONFIGURING THE
S
WITCH
3-120
Web – Click Port, LACP, Port Internal Information. Select a port channel
to display the corresponding information.

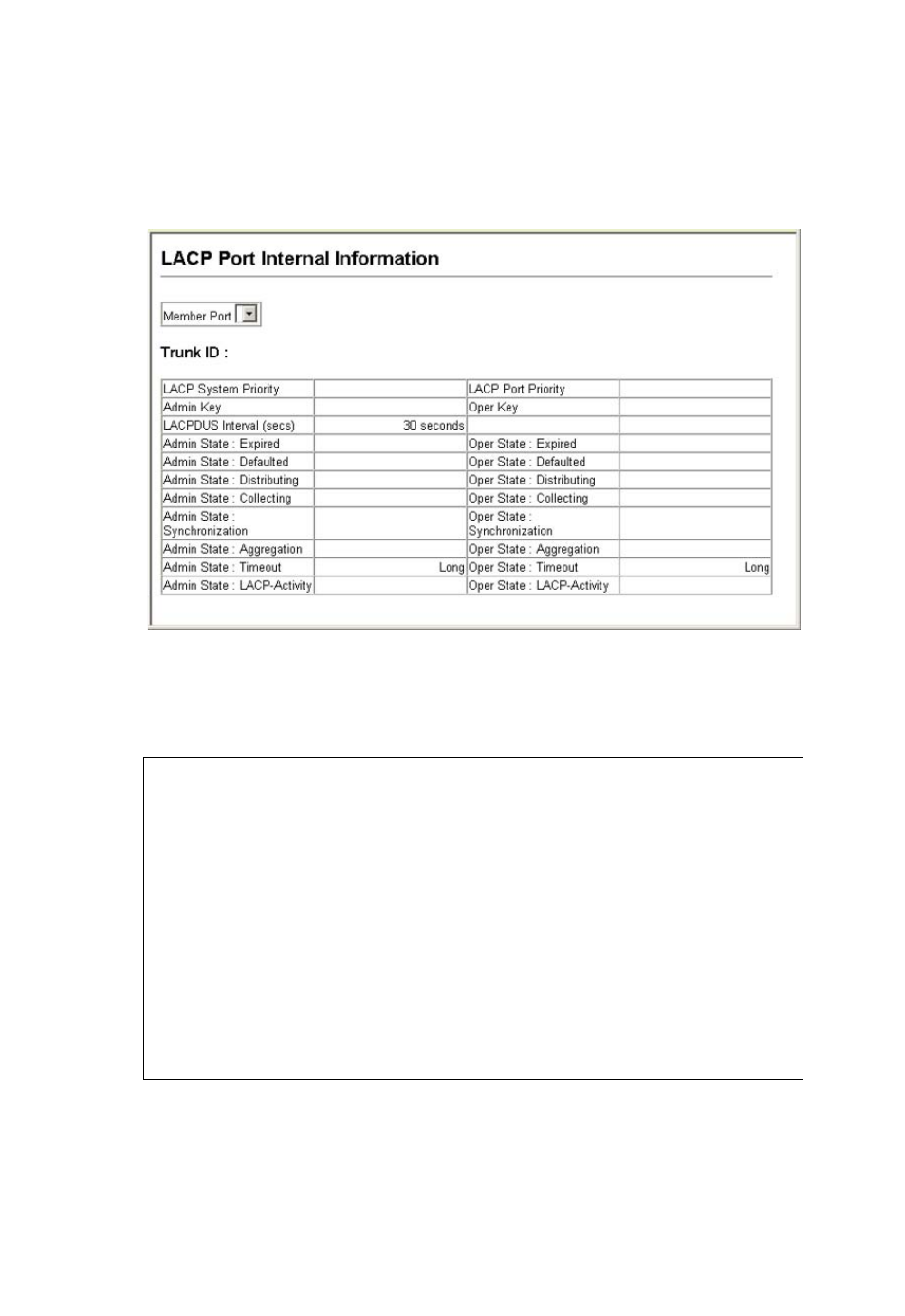

Figure 3-55 LACP - Port Internal Information
CLI – The following example displays the LACP configuration settings
and operational state for the local side of port channel 1.
Console#show lacp 1 internal 4-201
Port channel: 1
-------------------------------------------------------------------
Oper Key: 3
Admin Key: 0
Eth 1/ 2
-------------------------------------------------------------------
LACPDUs Internal: 30 sec
LACP System Priority: 32768
LACP Port Priority: 32768
Admin Key: 3
Oper Key: 3
Admin State: defaulted, aggregation, long timeout, LACP-activity
Oper State: distributing, collecting, synchronization,
aggregation, long timeout, LACP-activity
.
.
.
Console#
