C
ONFIGURING THE
S
WITCH
3-170
Command Attributes (Web)
• VLAN ID – ID of configured VLAN (1-4093).
• Up Time at Creation – Time this VLAN was created (i.e., System Up
Time).
• Status – Shows how this VLAN was added to the switch.
- Dynamic GVRP: Automatically learned via GVRP.
- Permanent: Added as a static entry.
• Egress Ports – Shows all the VLAN port members.
• Untagged Ports – Shows the untagged VLAN port members.
Web – Click VLAN, 802.1Q VLAN, Current Table. Select any ID from
the scroll-down list.

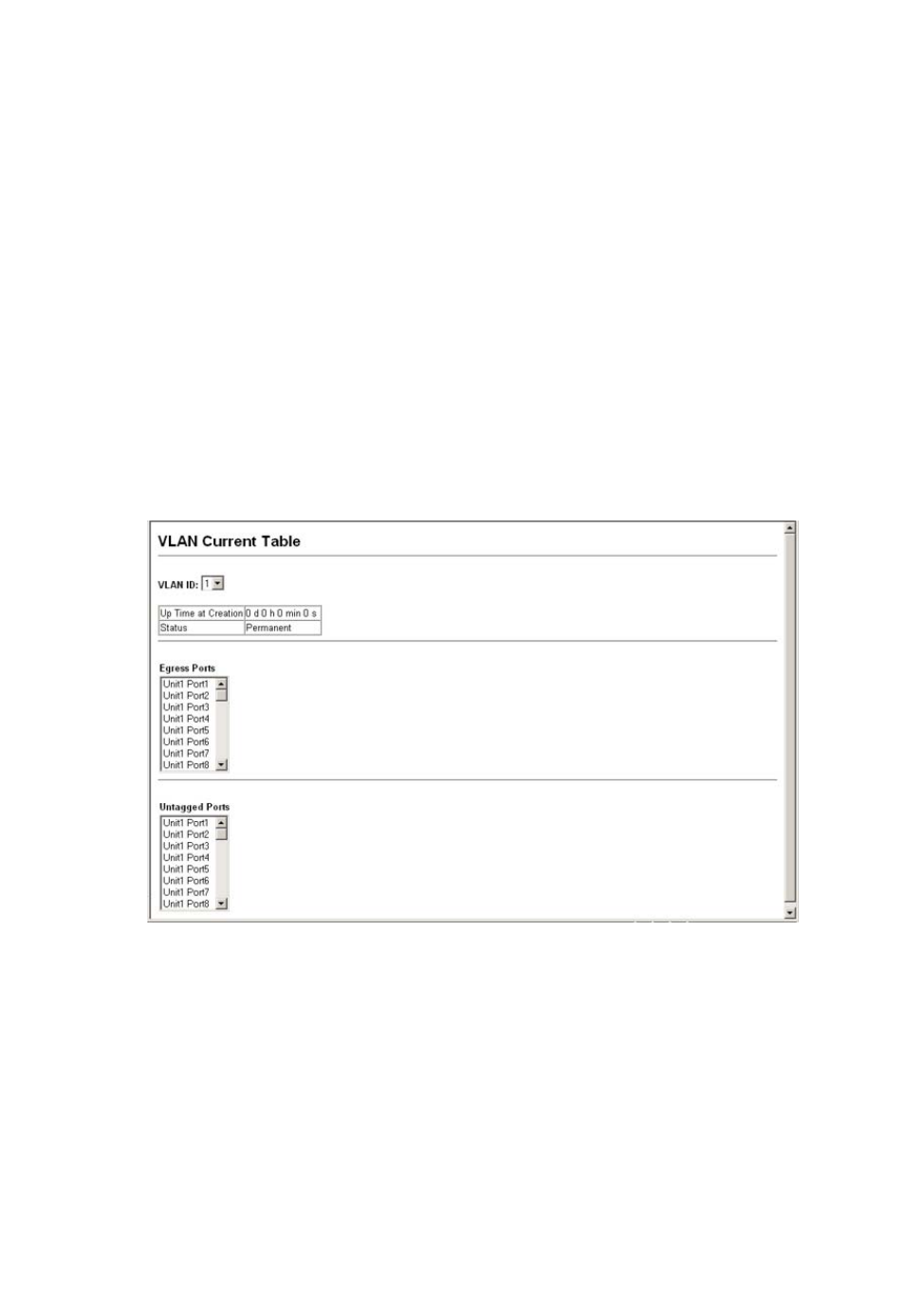

Figure 3-74 VLAN Current Table
Command Attributes (CLI)
• VLAN – ID of configured VLAN (1-4093, no leading zeroes).
• Type – Shows how this VLAN was added to the switch.
- Dynamic: Automatically learned via GVRP.
- Static: Added as a static entry.
• Name – Name of the VLAN (1 to 32 characters).
