C

ONFIGURING

THE

S

WITCH

3-182

Web – Click VLAN, Private VLAN, Link Status. Mark the ports that will
serve as uplinks and downlinks for the private VLAN, then click Apply.

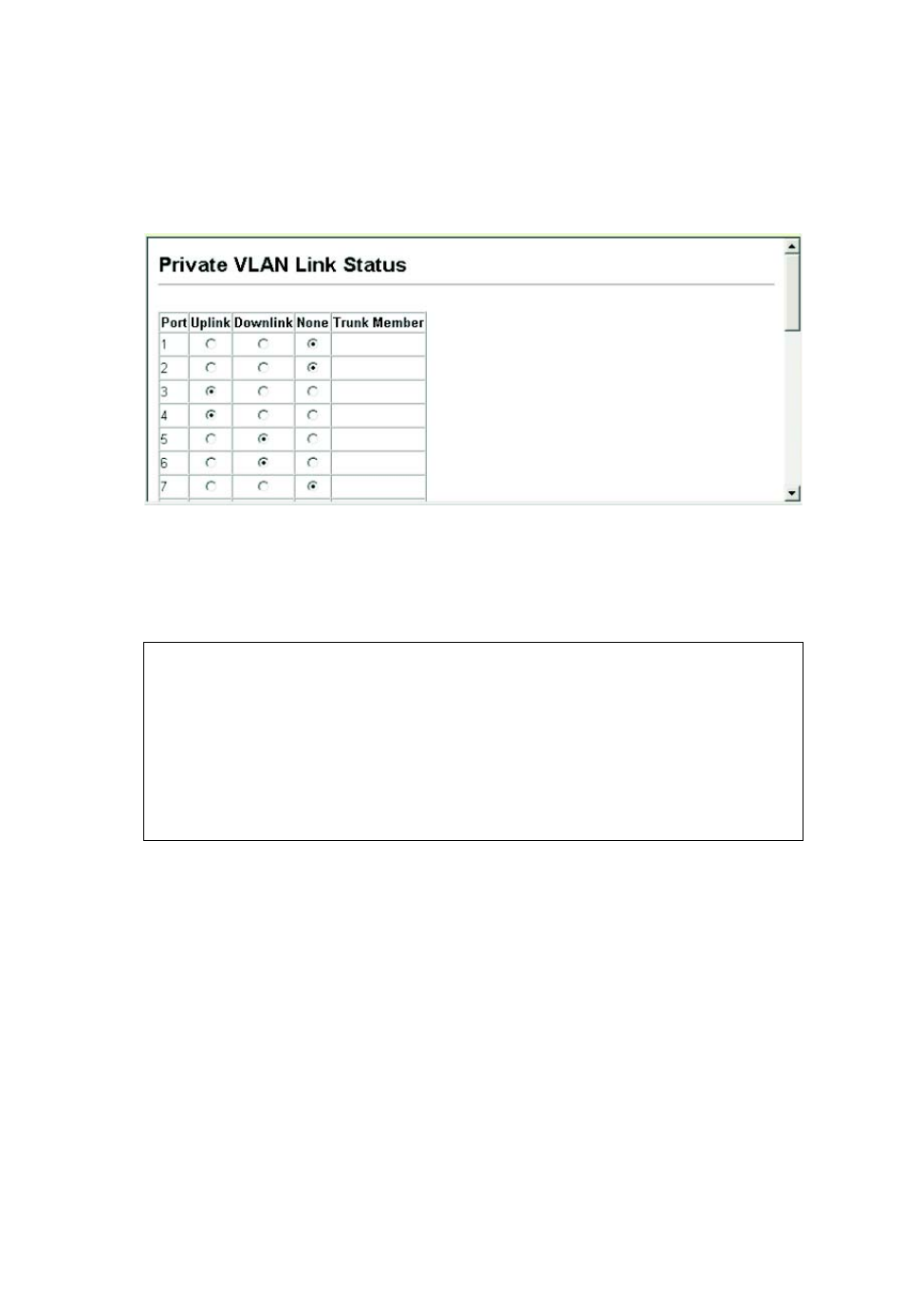

Figure 3-80 Private VLAN Link Status

CLI – This configures ports 3 and 4 as uplinks and ports 5 and 6 as
downlinks.

Configuring Protocol-Based VLANs

The network devices required to support multiple protocols cannot be
easily grouped into a common VLAN. This may require non-standard
devices to pass traffic between different VLANs in order to encompass all
the devices participating in a specific protocol. This kind of configuration
deprives users of the basic benefits of VLANs, including security and easy
accessibility.

Console(config)#pvlan up-link ethernet 1/3 down-link ethernet 1/5

4-247

Console(config)#pvlan up-link ethernet 1/3 down-link ethernet 1/6
Console(config)#end
Console#show pvlan
Private VLAN status: Enabled
Up-link port:
Ethernet 1/3
Down-link port:
Ethernet 1/5
Ethernet 1/6
Console
