Web – Click Spanning Tree, STA, Port Configuration or Trunk
Configuration. Modify the required attributes, then click Apply.

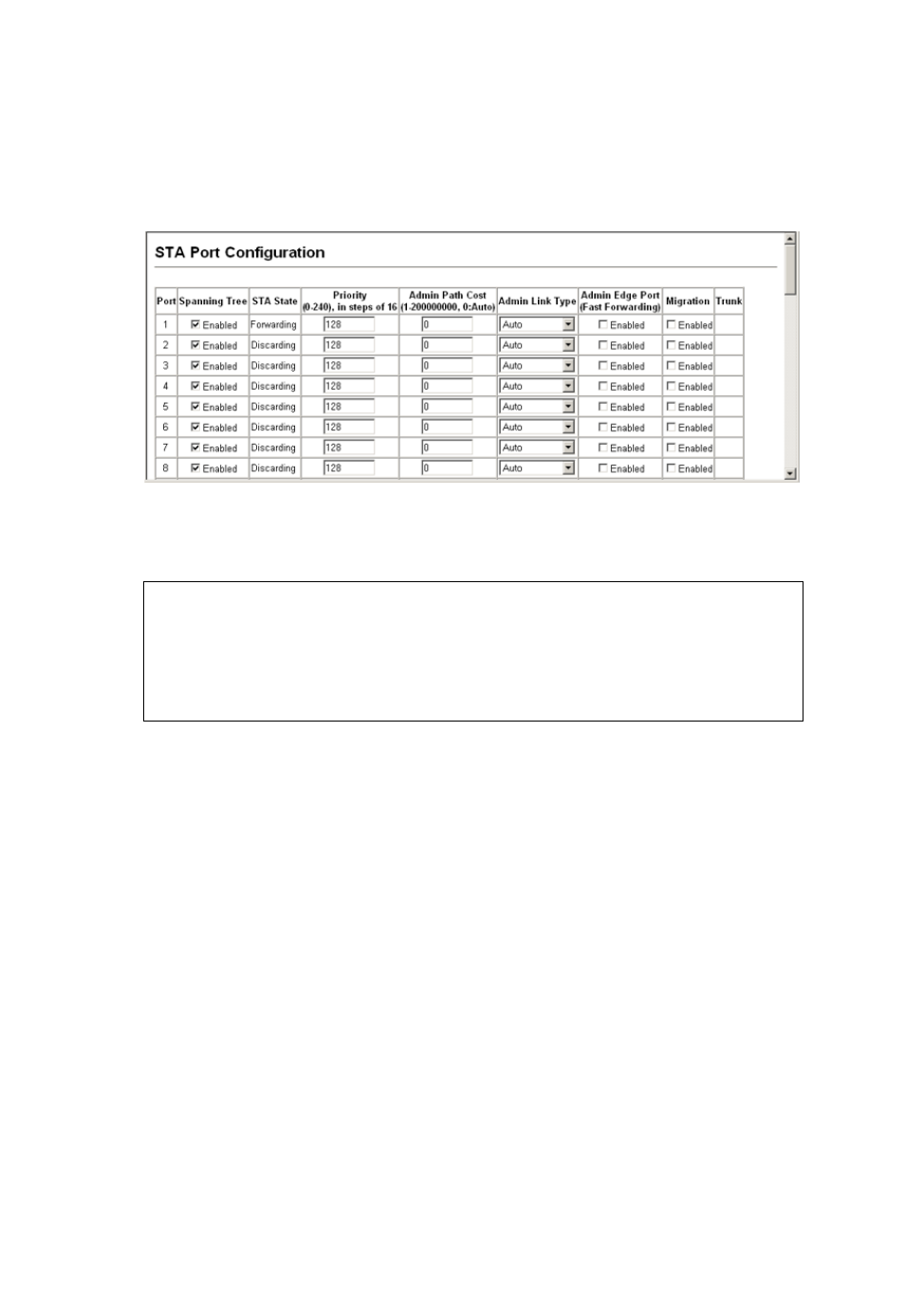

Figure 3-68 STA Port Configuration

CLI – This example sets STA attributes for port 7.

Configuring Multiple Spanning Trees

MSTP generates a unique spanning tree for each instance. This provides
multiple pathways across the network, thereby balancing the traffic load,
preventing wide-scale disruption when a bridge node in a single instance
fails, and allowing for faster convergence of a new topology for the failed
instance.

By default all VLANs are assigned to the Internal Spanning Tree
(MST Instance 0) that connects all bridges and LANs within the MST
region. This switch supports up to 65 instances. You should try to group
VLANs which cover the same general area of your network. However,
remember that you must configure all bridges within the same MSTI
Region (page 3-147) with the same set of instances, and the same instance

Console(config)#interface ethernet 1/7

4-174

Console(config-if)#no spanning-tree spanning-disabled

4-224

Console(config-if)#spanning-tree port-priority 0

4-226

Console(config-if)#spanning-tree cost 50

4-225

Console(config-if)#spanning-tree link-type auto

4-228

Console(config-if)#no spanning-tree edge-port

4-226

Console(config-if)#
