VLAN C
ONFIGURATION
3-181
Enabling Private VLANs
Use the Private VLAN Status page to enable/disable the Private VLAN
function.
Web – Click VLAN, Private VLAN, Status. Select Enabled, and click
Apply.

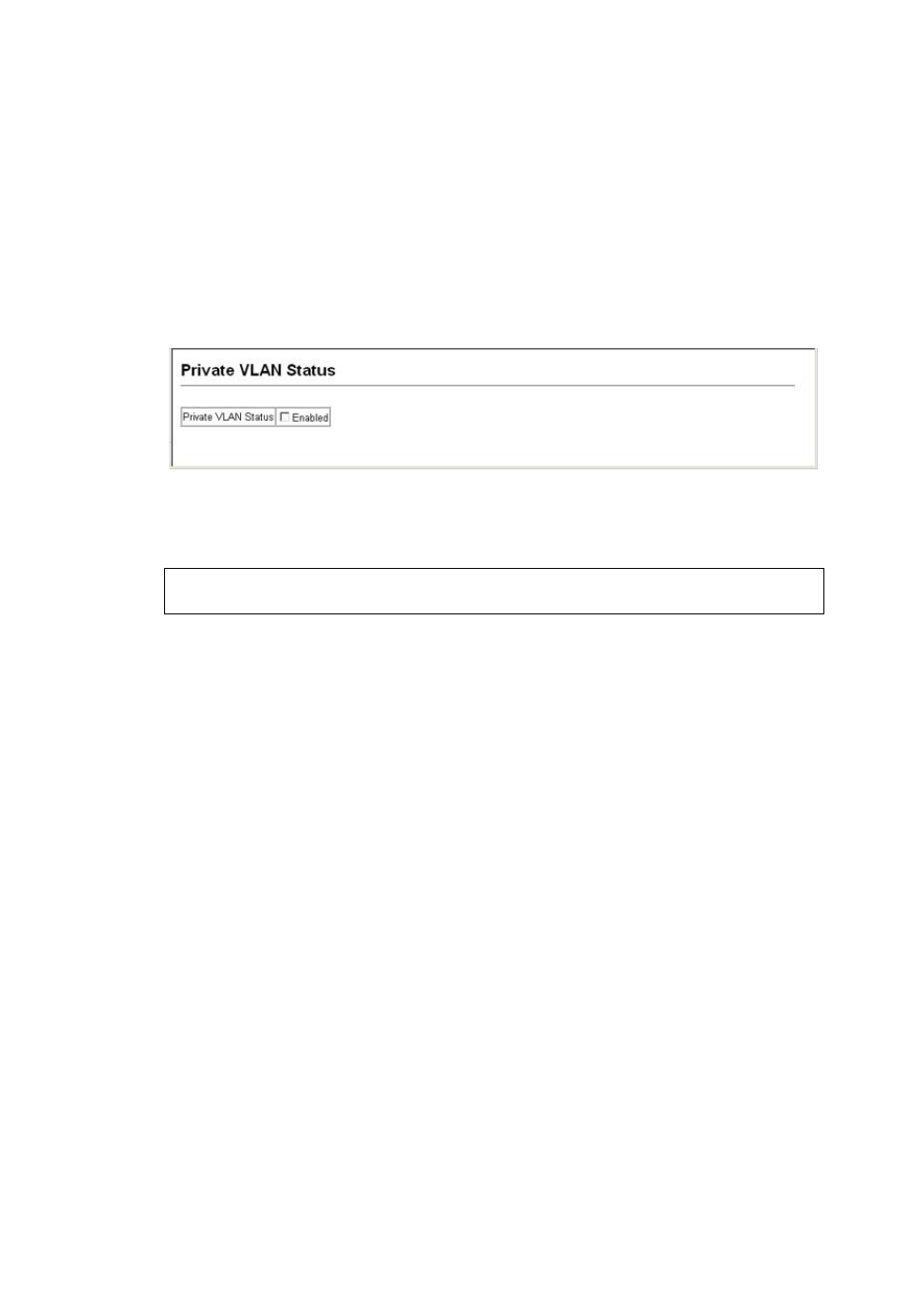

Figure 3-79 Private VLAN Status
CLI – This example enables private VLANs.
Configuring Uplink and Downlink Ports
Use the Private VLAN Link Status page to set ports as downlink or uplink
ports. Ports designated as downlink ports can not communicate with any
other ports on the switch except for the uplink ports. Uplink ports can
communicate with any other ports on the switch and with any designated
downlink ports.
Console(config)#pvlan 4-247
Console(config)#
