Web – Click VLAN, Protocol VLAN, Configuration. Enter a protocol
group ID, frame type and protocol type, then click Apply.

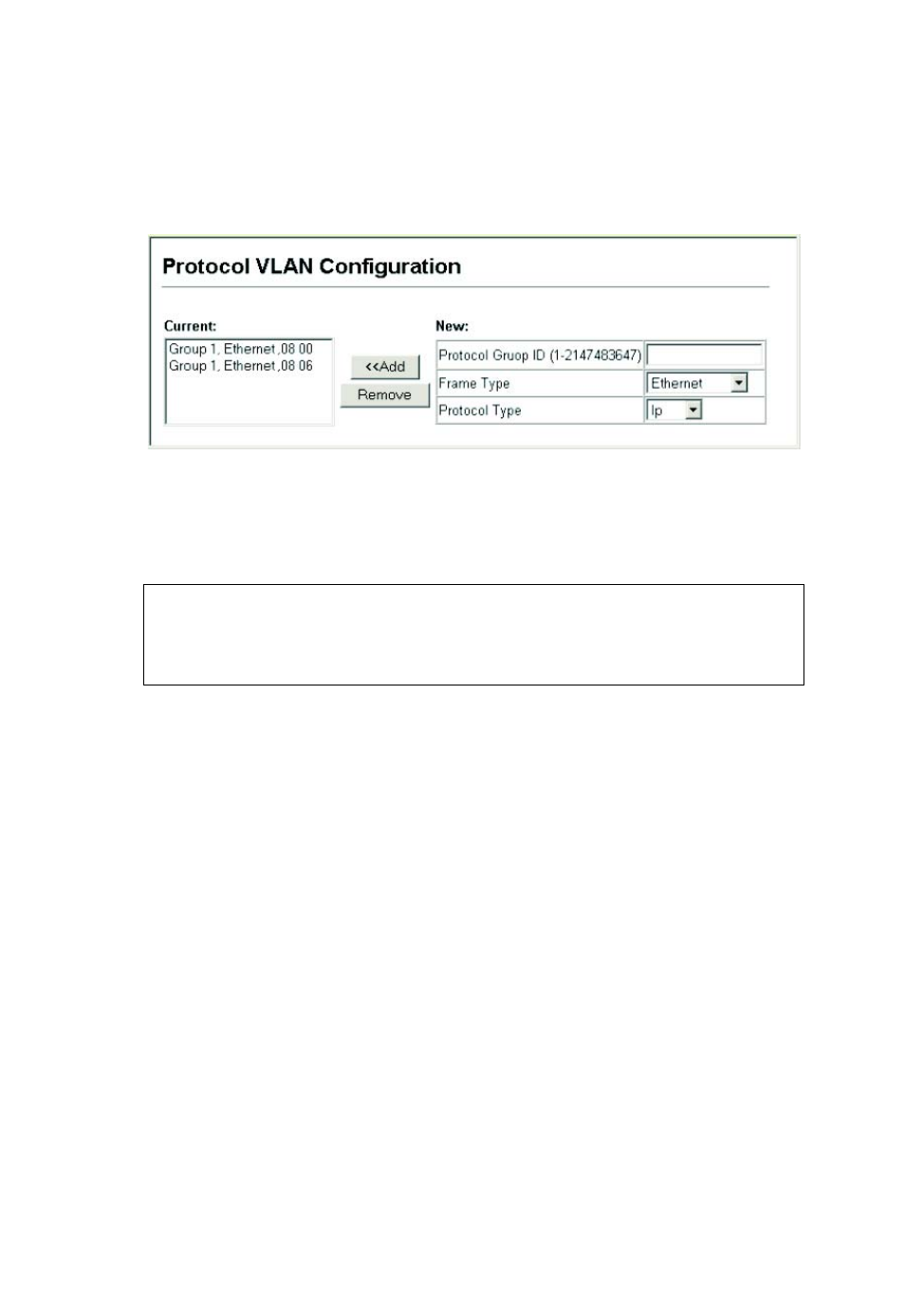

Figure 3-81 Protocol VLAN Configuration
CLI – The following creates protocol group 1, and then specifies Ethernet
frames with IP and ARP protocol types.
Mapping Protocols to VLANs
Map a protocol group to a VLAN for each interface that will participate in
the group.
Command Usage
• When creating a protocol-based VLAN, only assign interfaces using
this configuration screen. If you assign interfaces using any of the other
VLAN commands such as VLAN Static Table (page 3-173) or VLAN
Static Membership (page 3-175), these interfaces will admit traffic of
any protocol type into the associated VLAN.
• When a frame enters a port that has been assigned to a protocol
VLAN, it is processed in the following manner:
- If the frame is tagged, it will be processed according to the standard
rules applied to tagged frames.
- If the frame is untagged and the protocol type matches, the frame is
forwarded to the appropriate VLAN.
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type ip 4-250
Console(config)#protocol-vlan protocol-group 1
add frame-type ethernet protocol-type arp
Console(config)#
