S

PANNING

T

REE

A

LGORITHM

C

ONFIGURATION

3-143

Web – Click Spanning Tree, STA, Information.

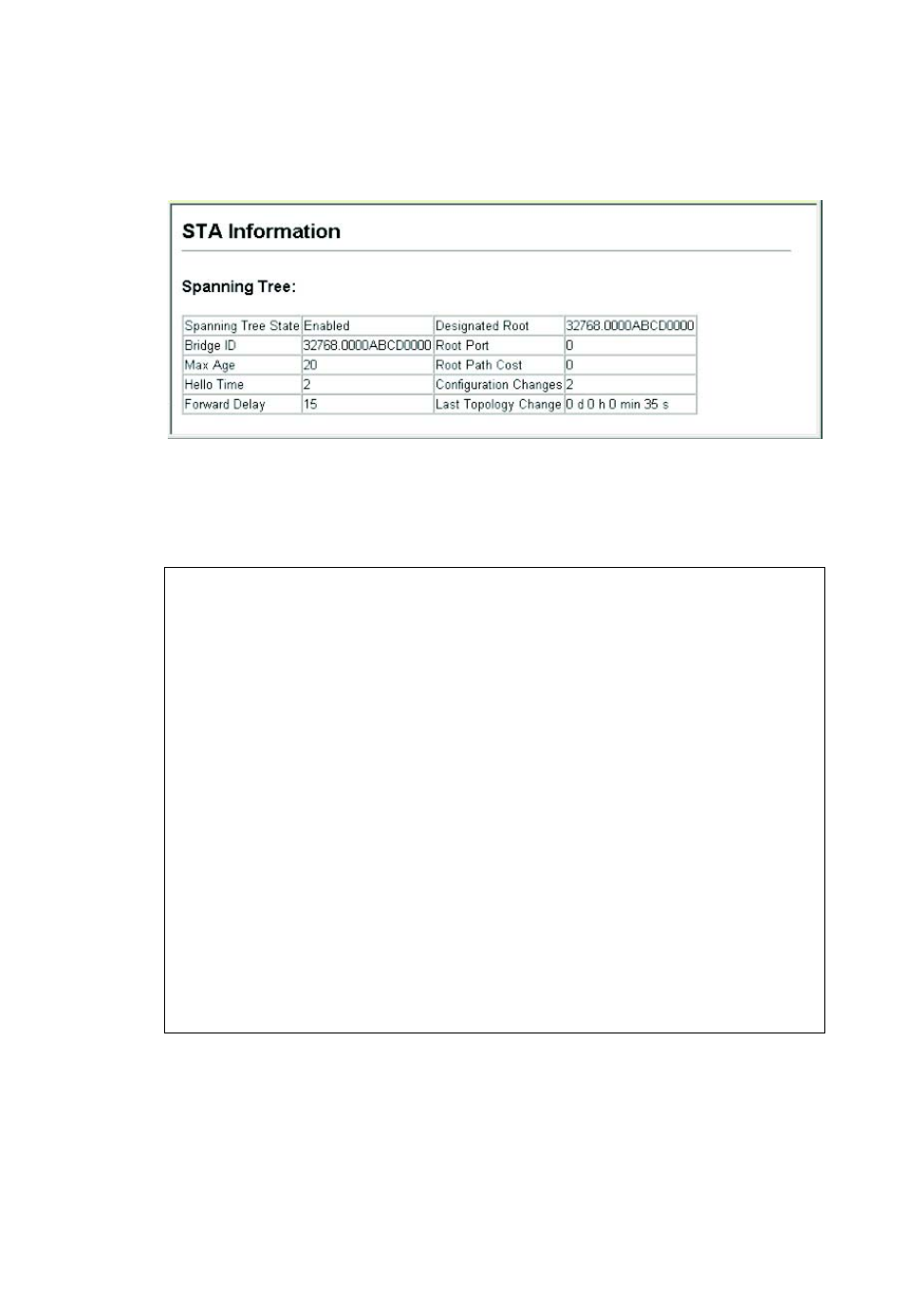

Figure 3-65 STA Information

CLI – This command displays global STA settings, followed by settings for
each port.

Note: The current root port and current root cost display as zero when

this device is not connected to the network.

Console#show spanning-tree

4-233

Spanning-tree information
---------------------------------------------------------------
Spanning tree mode :RSTP
Spanning tree enable/disable :enabled
Instance :0
Vlans configuration :1-4093
Priority :32768
Bridge Hello Time (sec.) :2
Bridge Max Age (sec.) :20
Bridge Forward Delay (sec.) :15
Root Hello Time (sec.) :2
Root Max Age (sec.) :20
Root Forward Delay (sec.) :15
Max hops :20
Remaining hops :20
Designated Root :32768.0.0000ABCD0000
Current root port :1
Current root cost :200000
Number of topology changes :1
Last topology changes time (sec.):13380
Transmission limit :3
Path Cost Method :long
.

.

.
