C

ONFIGURING

THE

S

WITCH

3-138

Aging Time – The time after which a learned entry is discarded.
(Range: 10-1000000 seconds; Default: 300 seconds)

Web – Click Address Table, Address Aging. Specify the new aging time,
click Apply.

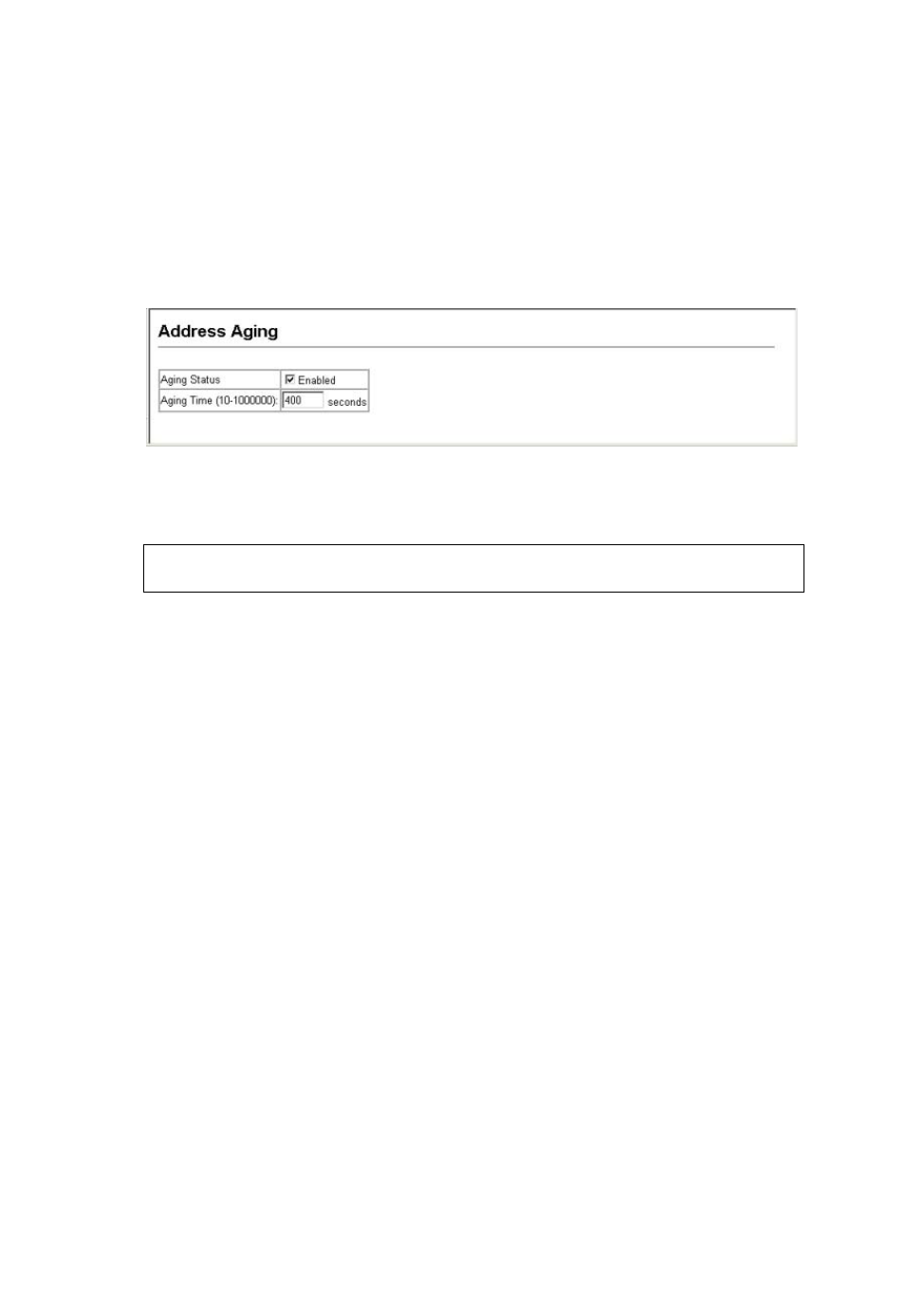

Figure 3-64 Address Aging

CLI – This example sets the aging time to 400 seconds.

Spanning Tree Algorithm Configuration

The Spanning Tree Algorithm (STA) can be used to detect and disable
network loops, and to provide backup links between switches, bridges or
routers. This allows the switch to interact with other bridging devices (that
is, an STA-compliant switch, bridge or router) in your network to ensure
that only one route exists between any two stations on the network, and
provide backup links which automatically take over when a primary link
goes down.

The spanning tree algorithms supported by this switch include these
versions:

STA – Spanning Tree Algorithm (IEEE 802.1D)

RSTP – Rapid Spanning Tree Protocol (IEEE 802.1w)

MSTP – Multiple Spanning Tree Protocol (IEEE 802.1s)

Console(config)#mac-address-table aging-time 400

4-209

Console(config)#
