3.1 bits pot red single-unit operation
“Figure 3-1 Single-unit operation/Controls and mechanicals” shows the controls and mechanicals, and
“Table 3-1 Single-unit operation/Descriptions of the controls and mechanicals” provides descriptions
about them.
SW2, SW3, SW5, and temperature sensor on the board control the operations of the green and red LEDs
and BLDC motor.

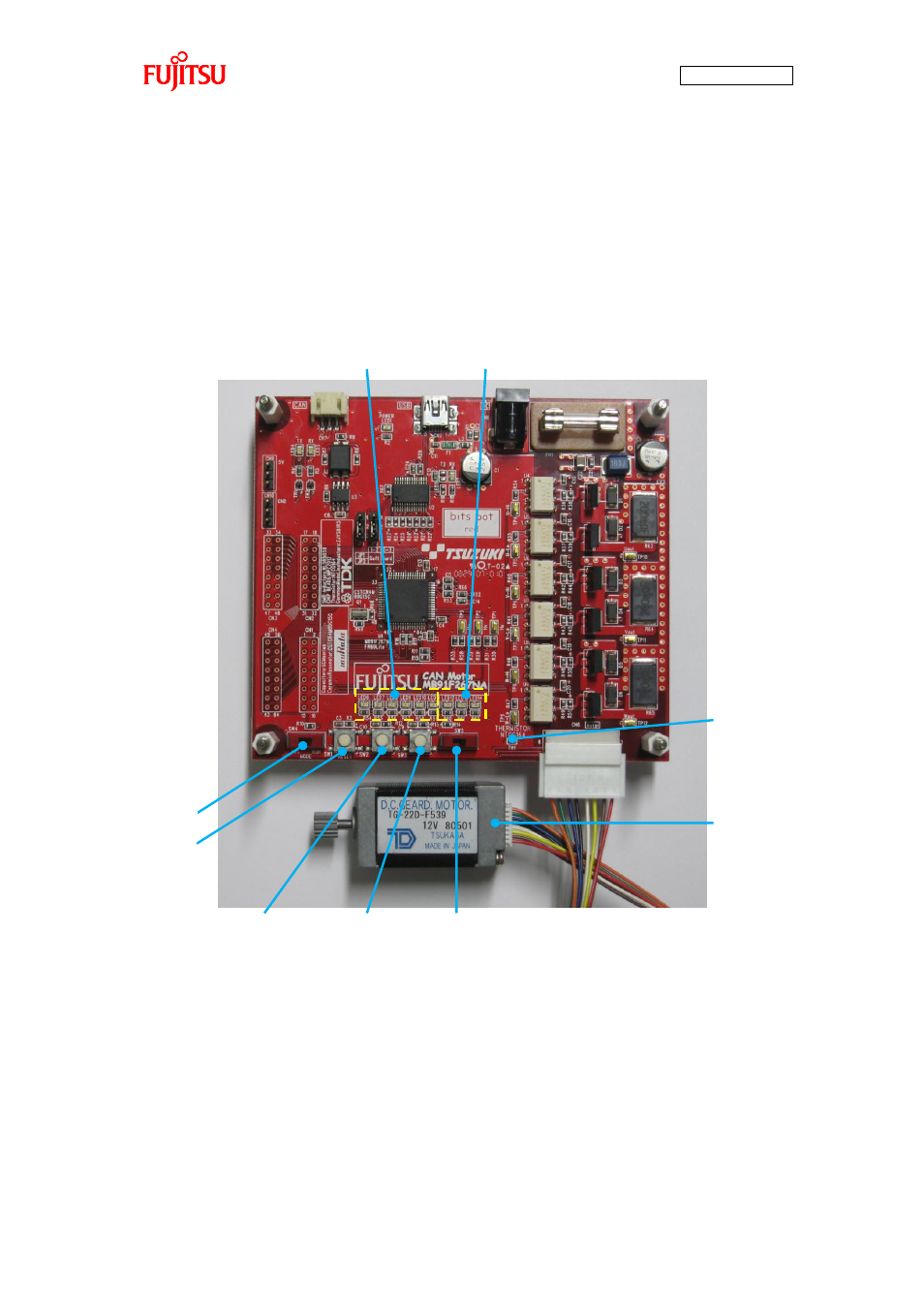

Figure 3-1 Single-unit operation/Controls and mechanicals
(1) Mode SW
(2) Reset SW
(3) SW2 (4) SW3 (5) SW5
(6) Temperature
sensor
(7) LEDs (green) (8) LEDs (red)
(9) BLDC motor
