AN07-00180-3E

- 42 -

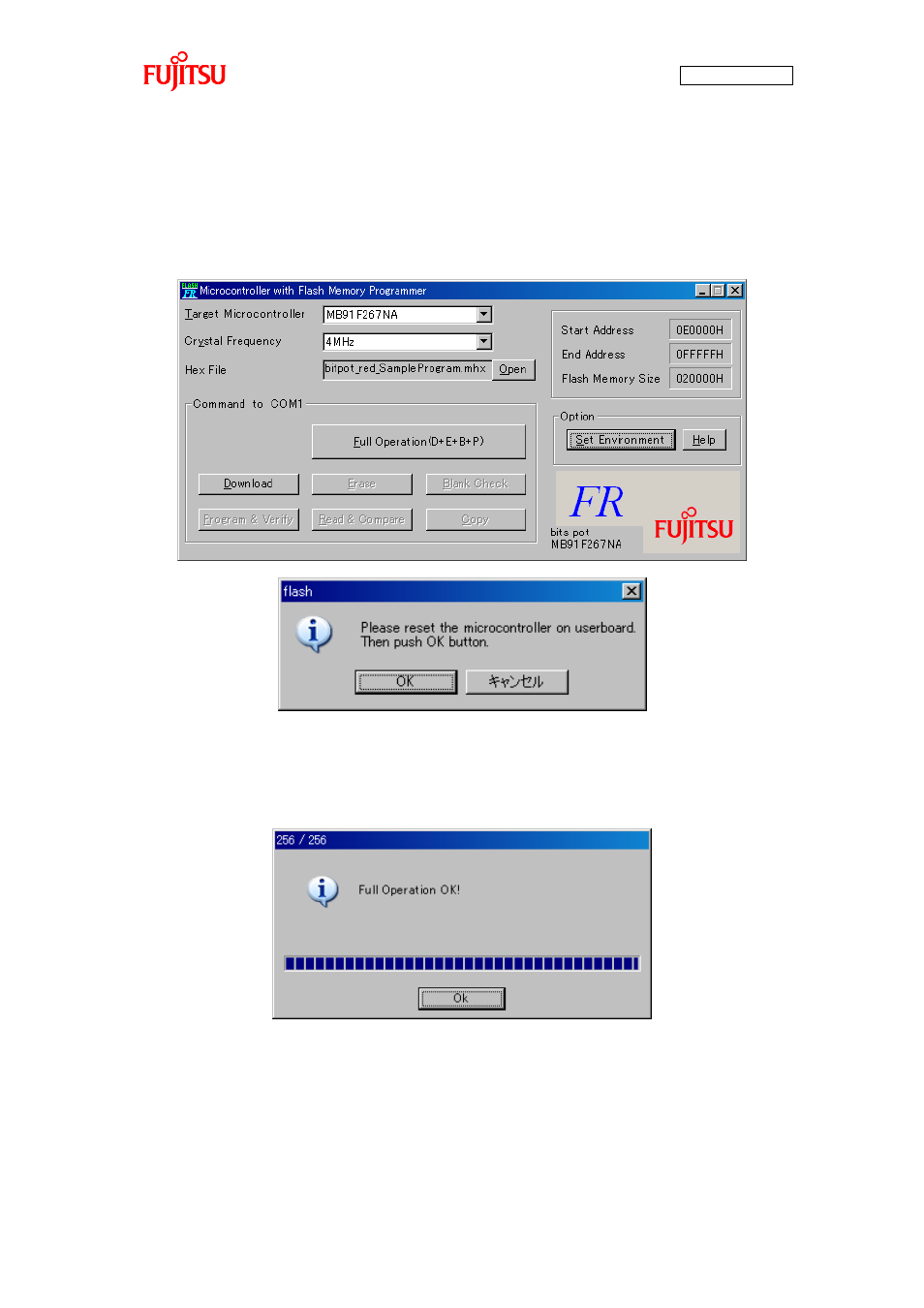

As shown in “Figure 2-9 Writing the program”, press the “Full Operation” button to start writing the

program; the dialog that asks you to press the Reset switch is displayed. Press the Reset SW on the board,

and then click the “OK” button on the dialog; the program write sequence starts. For the location of the

Reset SW, see “Figure 1-1 External board view”.

Figure 2-9 Writing the program

The dialog shown in “Figure 2-10 Completing the program writing” is displayed to notify you of the

completion of the program writing; press the “OK” button to quit PC Writer.

Figure 2-10 Completing the program writing

Set the MODE switch on the board to “RUN” and then press the Reset button; the program starts running.
