Page 56

AN07-00180-3E

- 56 -

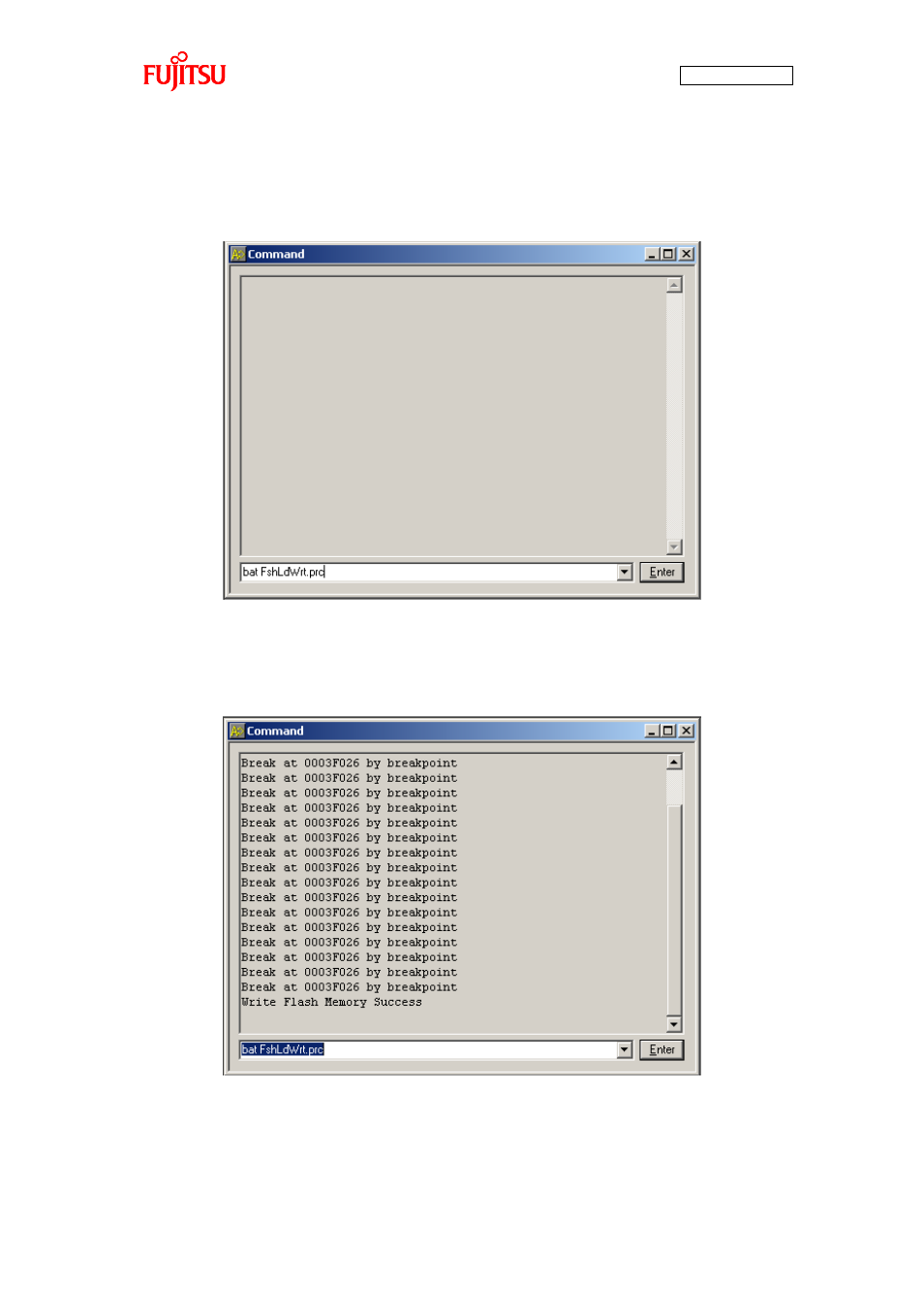

Input the following command into the field as shown in “Figure 2-31 Inputting commands”, and then

click the “Enter” button. The program is started to be written.

bat FshLdWrt.prc

Figure 2-31 Inputting commands

As shown in “Figure 2-32 Completing the program writing”, the command window shows “Write Flash

Memory Success” to notify you of successful completion of the program writing into the microcontroller.

Figure 2-32 Completing the program writing
