Select the device type as shown in “Figure 2-24 Selecting the device type”. Set “RS” to the device name,

set the COM port number to which the board is connected to the port name, set “38400” to the baud rate,

and then click the “Next” button.

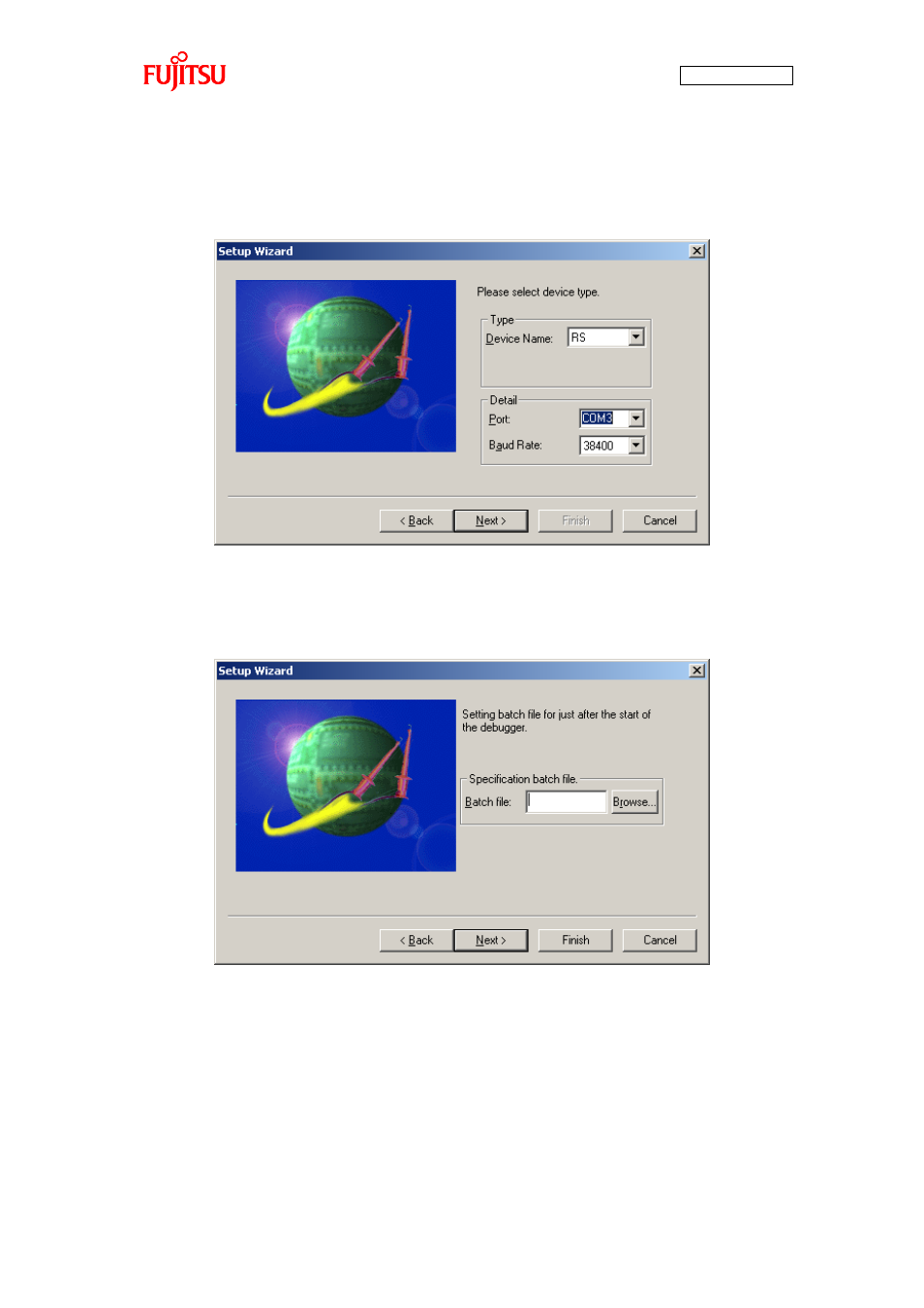

Figure 2-24 Selecting the device type

Specify nothing to the batch file field as shown in “Figure 2-25 Specifying a batch file”; keep the field

left blank and click the “Next” button.

Figure 2-25 Specifying a batch file
