AN07-00180-3E

- 23 -

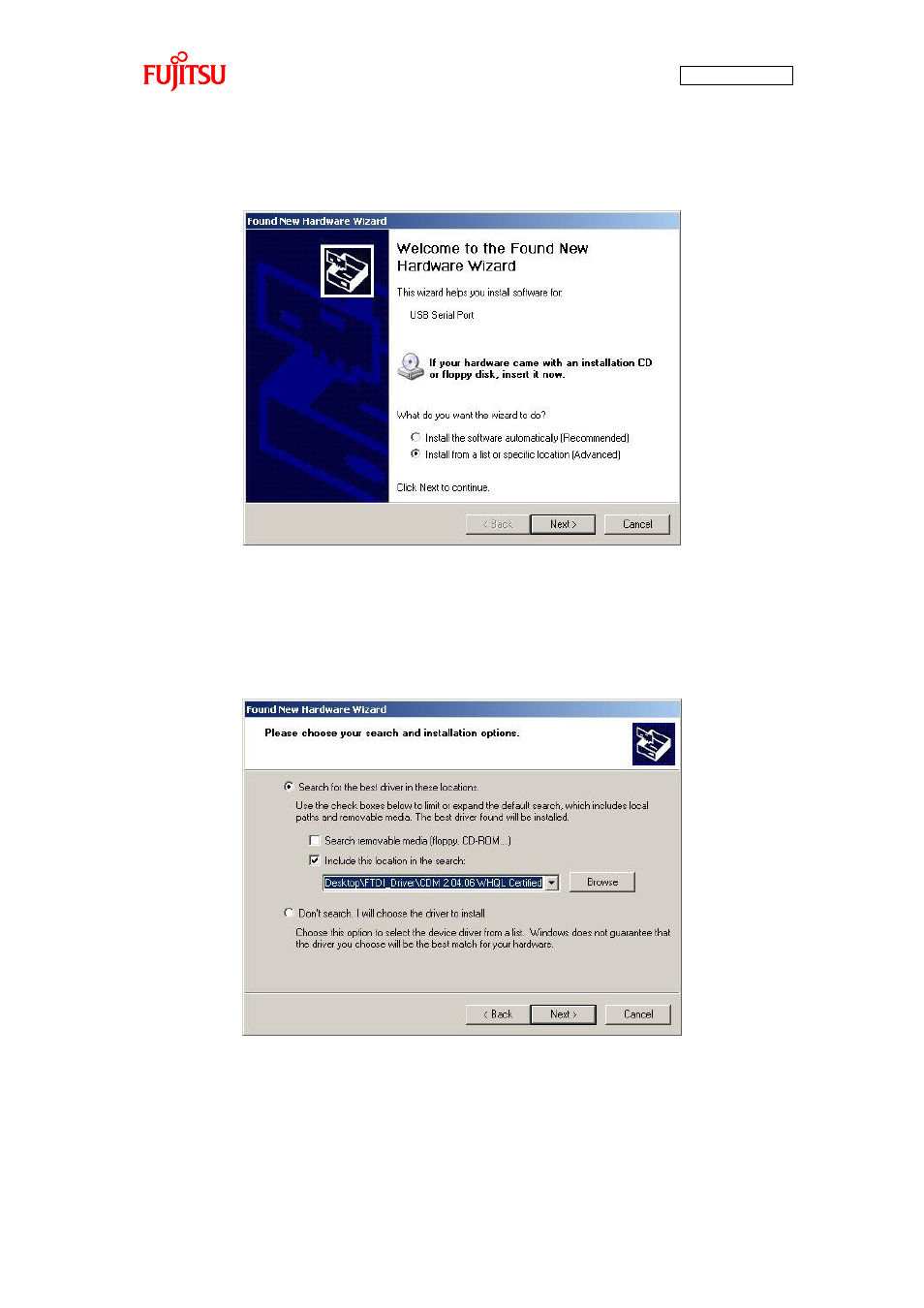

After that, as shown in “Figure 1-7 Installing USB Serial Port”, installation of “USB Serial Port” is

indicated; select “Install from a list or specific location” and then click the “Next” button.

Figure 1-7 Installing USB Serial Port

As shown in “Figure 1-8 Selecting the search locations”, to search for the installation file, check “Search

for the best driver in these locations” and “Include this location in the search” only, select the location at

which the driver was decompressed, and then click the “Next” button; installation of the driver starts.

Figure 1-8 Selecting the search locations
