As shown in “Figure 2-15 Writing the program”, press the “Full Operation” button to start writing the
program; the dialog that asks you to press the Reset switch is displayed. Press the Reset SW on the
board, and then click the “OK” button on the dialog; the program write sequence starts. For the location
of the Reset SW, see “Figure 1-1 External board view”.

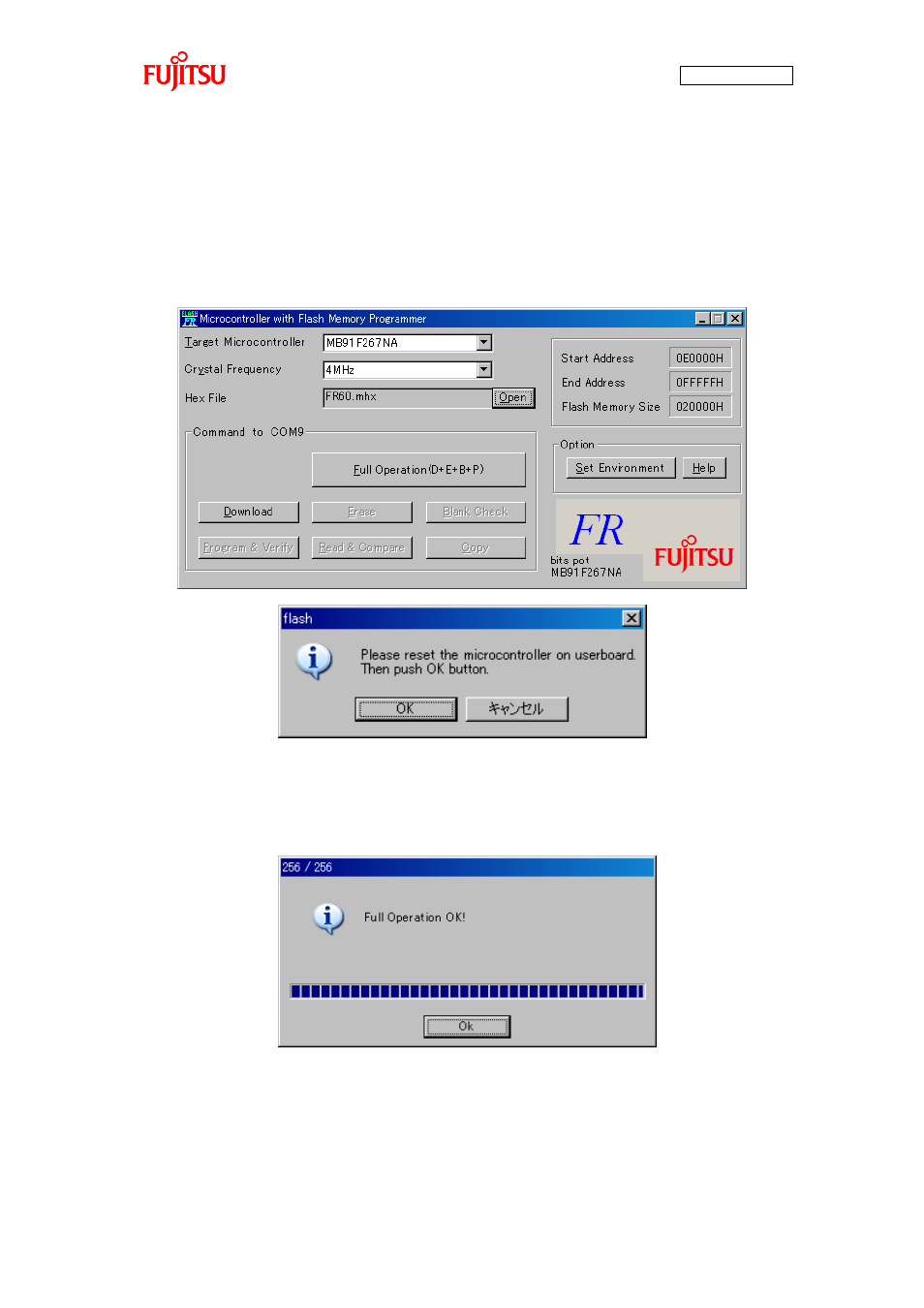

Figure 2-15 Writing the program
The dialog shown in “Figure 2-16 Completing the program writing” is displayed to notify you of the
completion of the program writing; press the “OK” button to quit PC Writer.
Figure 2-16 Completing the program writing
