DM Series Industrial Monitor
Page
73
4.1 AD Board Overview
The DM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing interface signals from a CPU card through cabling. There are
three AD boards used for the DM series monitors: AV-9350, AV-5350 and AV-5300. Refer
to Table 1-2 for a listing of DM series monitors and their associated AD board. The
following sections describe each AD board in detail.
4.2 AV-9350 AD Board
The following sections describe the AV-9350 AD board in detail.
4.2.1 AV-9350 AD Board Overview

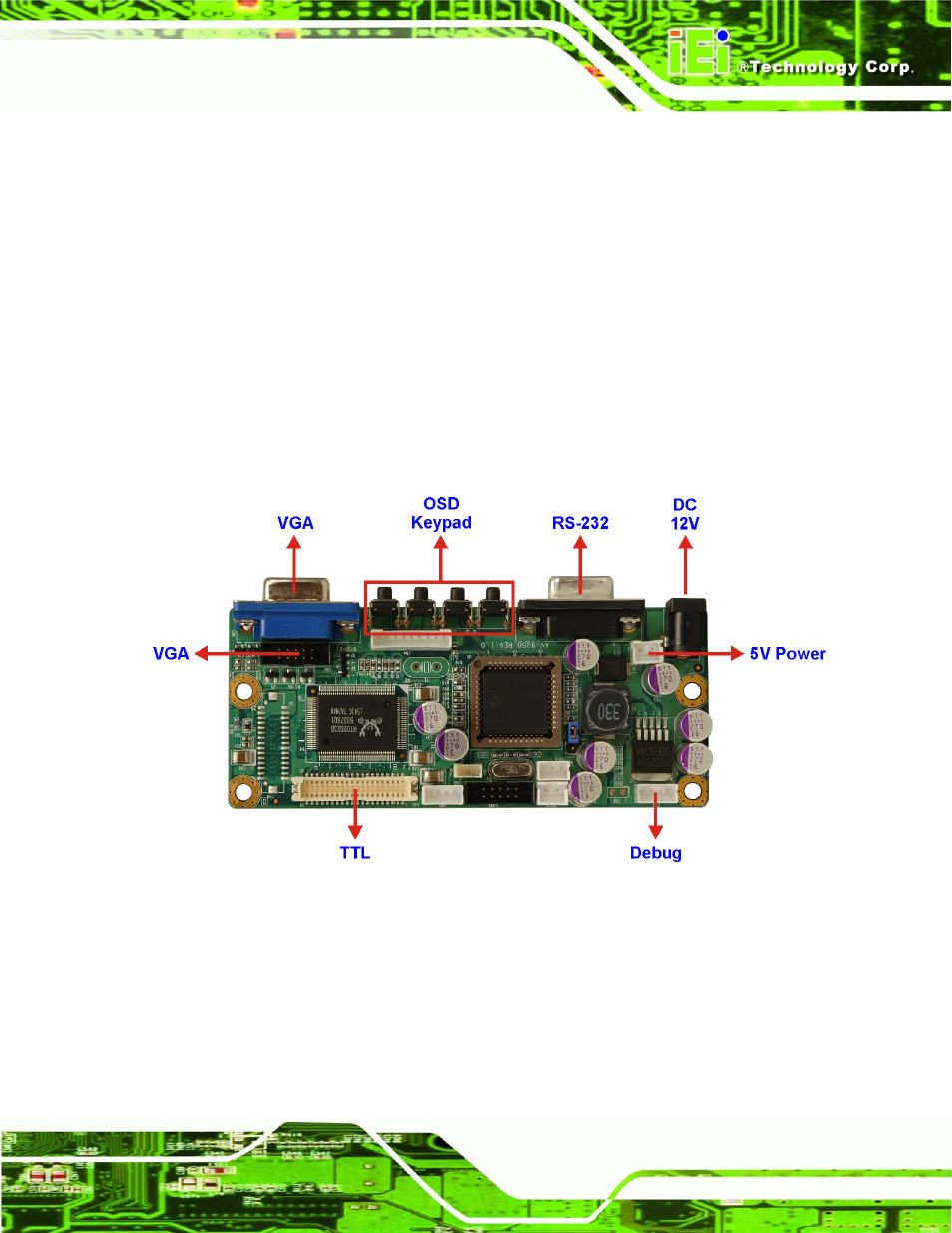

Figure 4-1: AV-9350 AD Board Overview
4.2.2 AV-9350 AD Board Connectors
The AV-9350 AD board has the following connectors onboard:
„ 1 x VGA connector
„ 2 x Debugged port
„ 1 x External OSD and LED Indication connector
