DM Series Industrial Monitor
Page 144

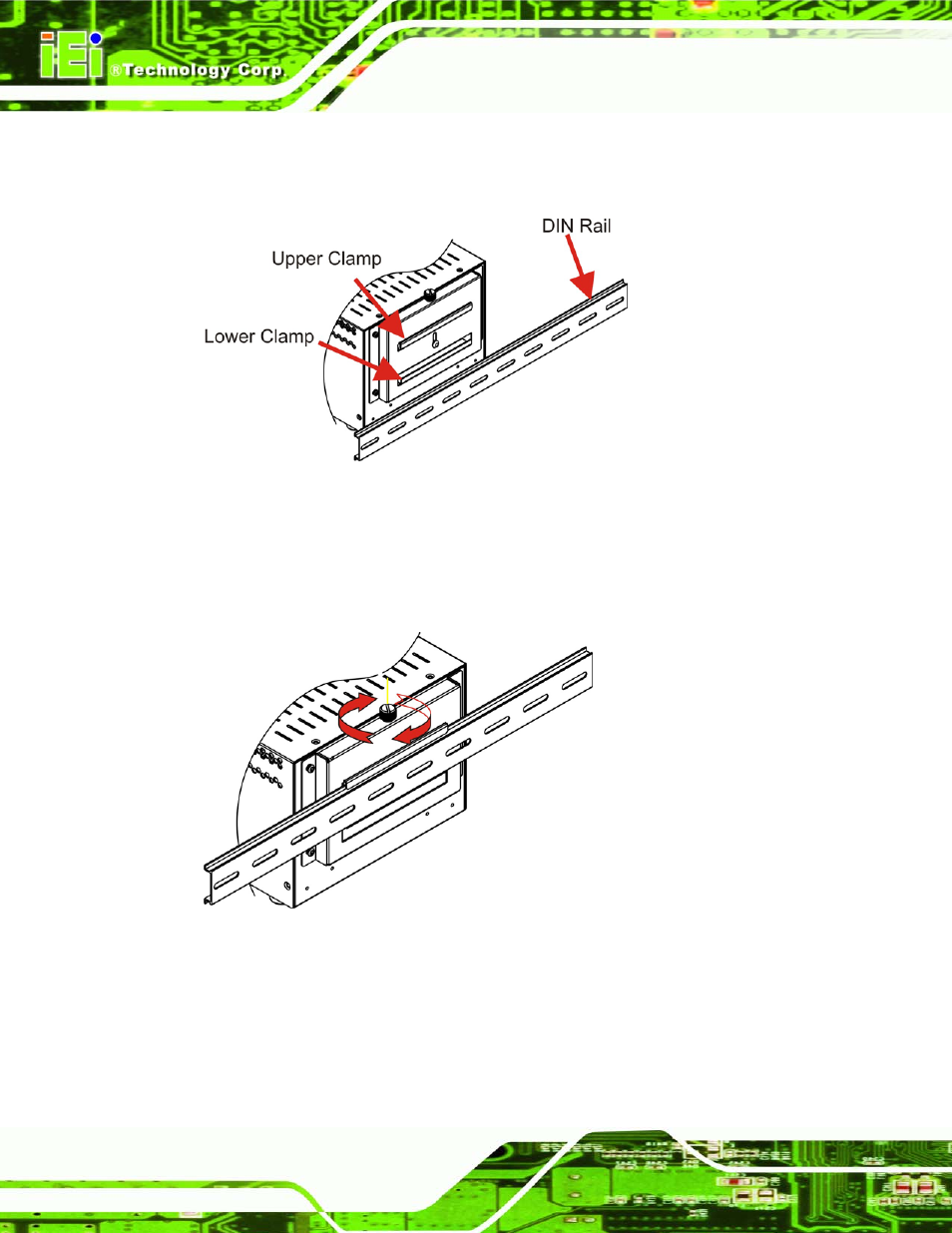

Step 3: Place the DIN rail flush against the back of the mounting bracket making sure
the edges of the rail are between the upper and lower clamps (Figure 5-19).
Figure 5-19: Mounting the DIN RAIL
Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.
This draws the lower clamp up and secures the monitor to the DIN rail (Figure
5-20 ). Step 0:
Figure 5-20: Secure the Assembly to the DIN Rail
