DM Series Industrial Monitor
Page 148

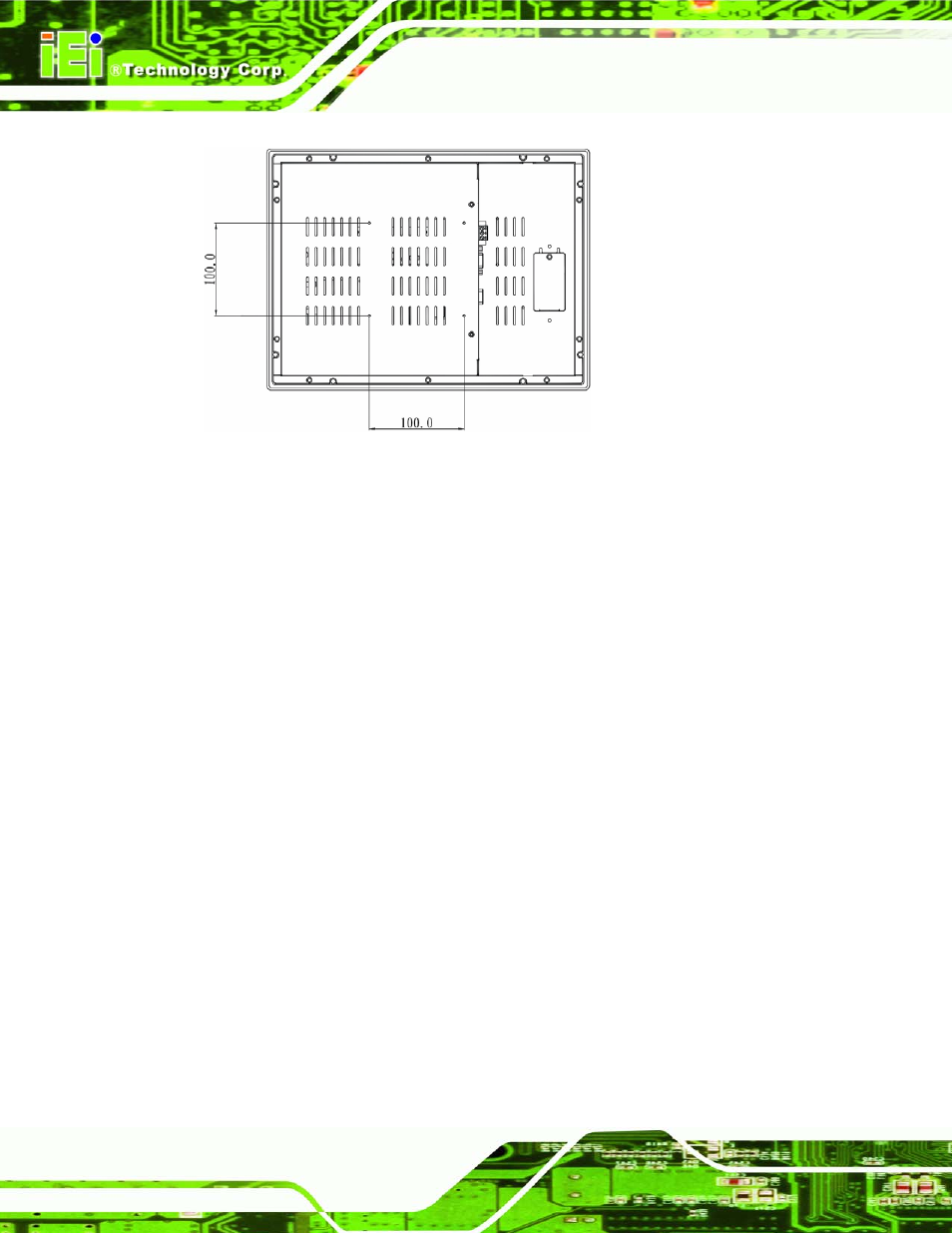

Figure 5-24: VESA Mounting Holes
The monitor stand mounting plate has a matching VESA hole pattern. To mount the DM
series industrial monitor onto a stand, please follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor stand mounting plate.
Step 2: Secure the monitor to the stand with the supplied retention screws (Figure
5-25 ). Step 0:
