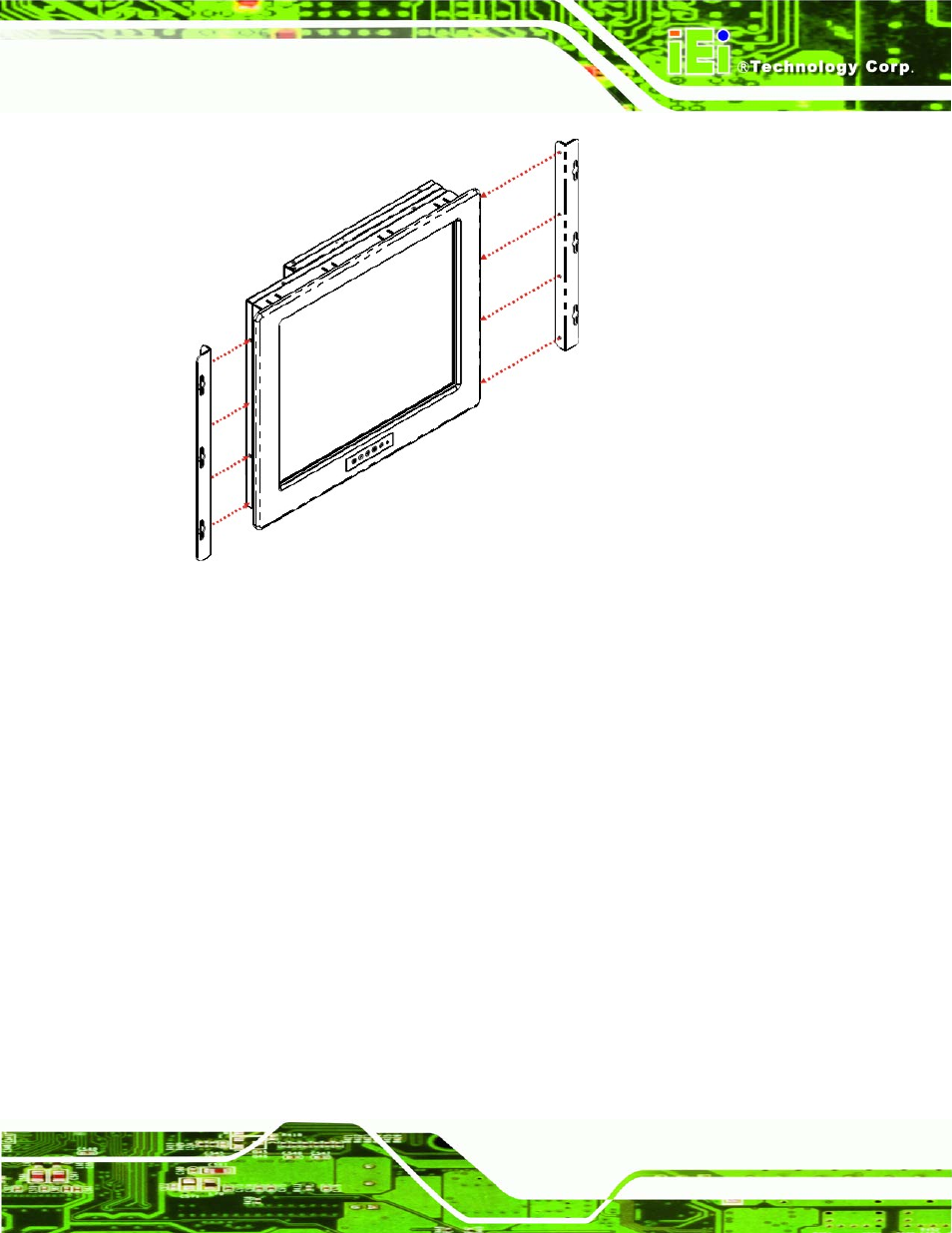

Figure 5-15: Rack Mounting Bracket Installation (DM-190)
Step 3:
Carefully insert the slotted holes of the brackets on the monitor through the bolts
on the rack and gently pull the monitor downwards until the bolts rests securely
in the slotted holes. (See Figure 5-16). Ensure that all six of the bolts fit snuggly
into their respective slotted holes.
Step 0:
