5.5.4 Wall Mounting
CAUTION:
Due to safety concerns, it is highly recommended to use the VESA mounting
kits provided by IEI for wall, stand and arm mounting. If the VESA mounting kit
is purchased separately, please make sure the mounting kit is UL-listed.
To mount the DM series industrial monitor onto a wall, please follow the steps below.
Step 1: Select a location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four bracket screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (Figure 5-21).

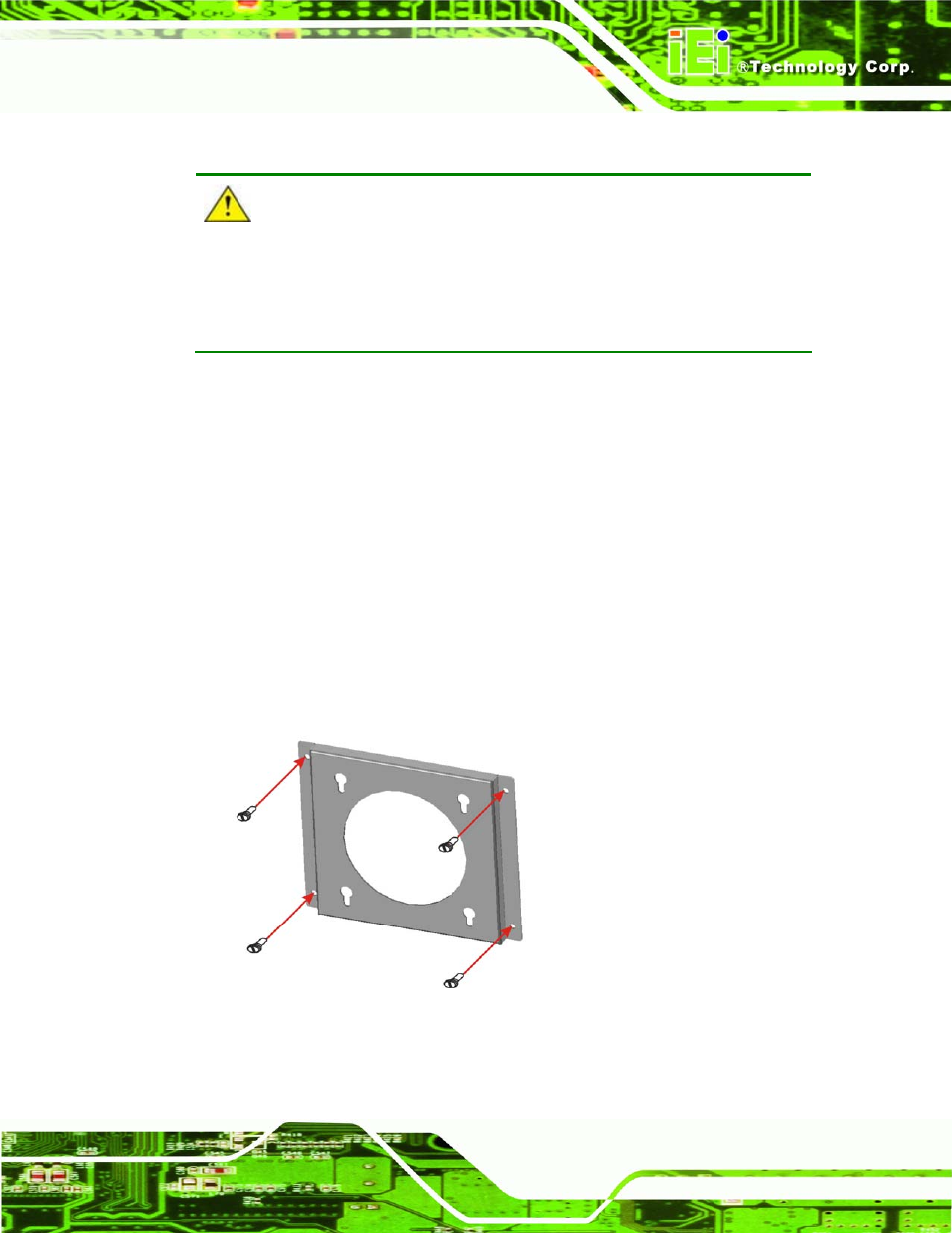

Figure 5-21: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws (M4 screws) provided in the wall
