DM Series Industrial Monitor

Page
51

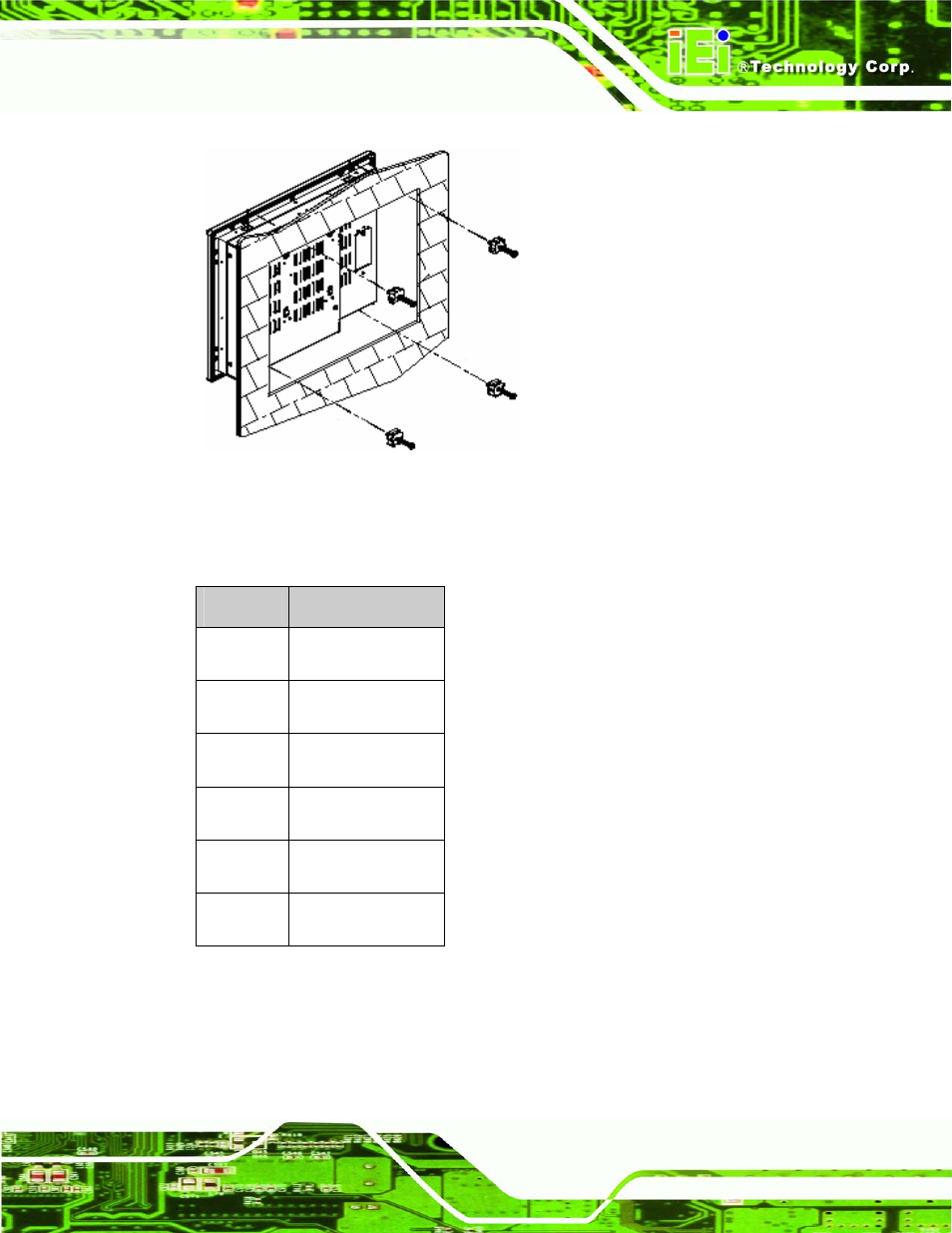

Figure 2-11: Typical Panel Mounting

Table 2-10 lists the number of mounting clamps required to mount the monitor to a panel.

Model

Mounting Clamps

DM-190 14

DM-170 10

DM-150 10

DM-121 10

DM-104 10

DM-84 8

Table 2-10: Panel Mounting Clamps
