DM Series Industrial Monitor
Page 26
1.3.2 Bottom Panel View

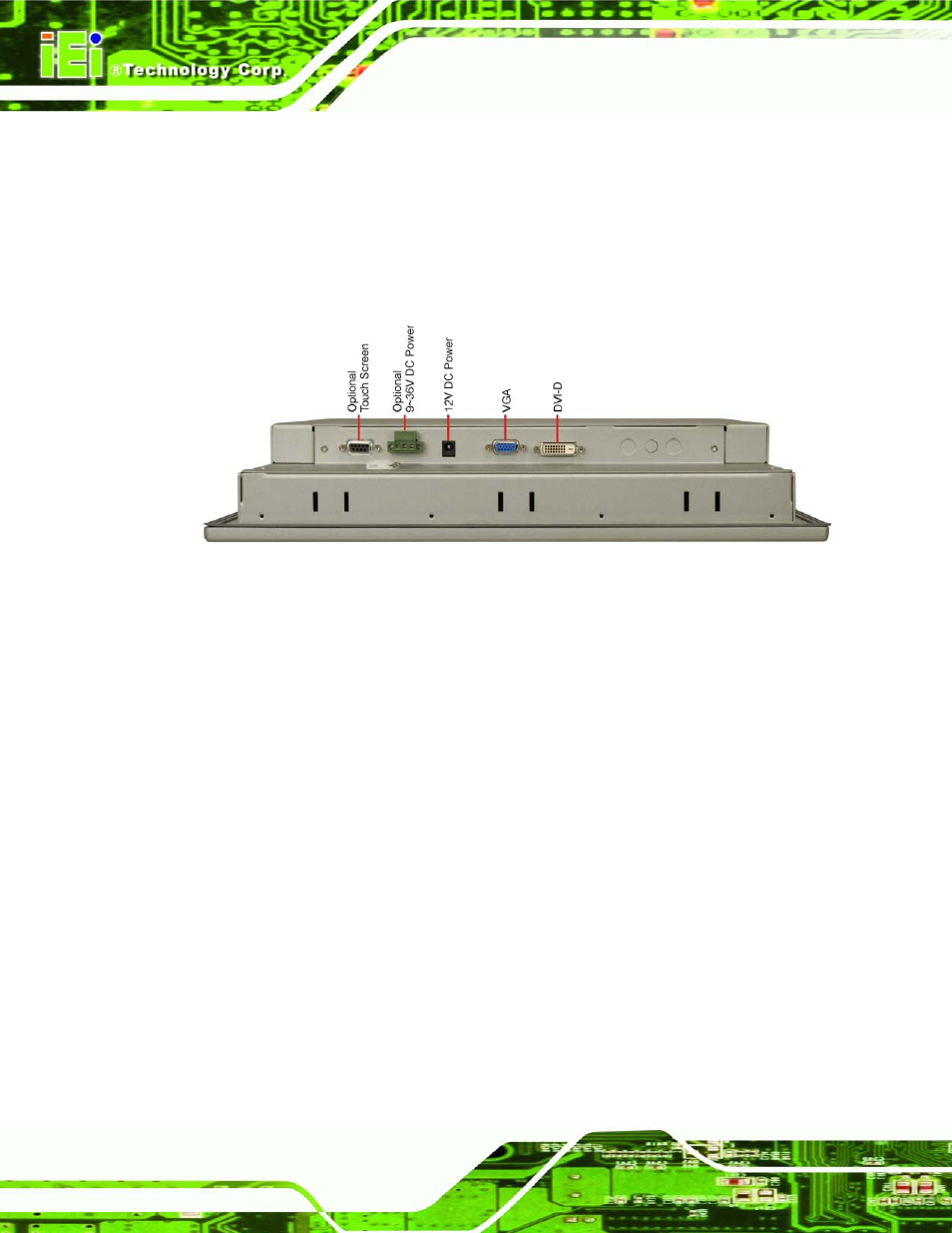

Figure 1-2 shows the bottom panel of the DM-190 monitor. Other models may include or
exclude additional connectors. Refer to Section 2.3 for listings of monitors and their
connectors. All connectors are fully described in Section 5.4.
Figure 1-2: Typical Bottom Panel View
