DM Series Industrial Monitor
Page
135

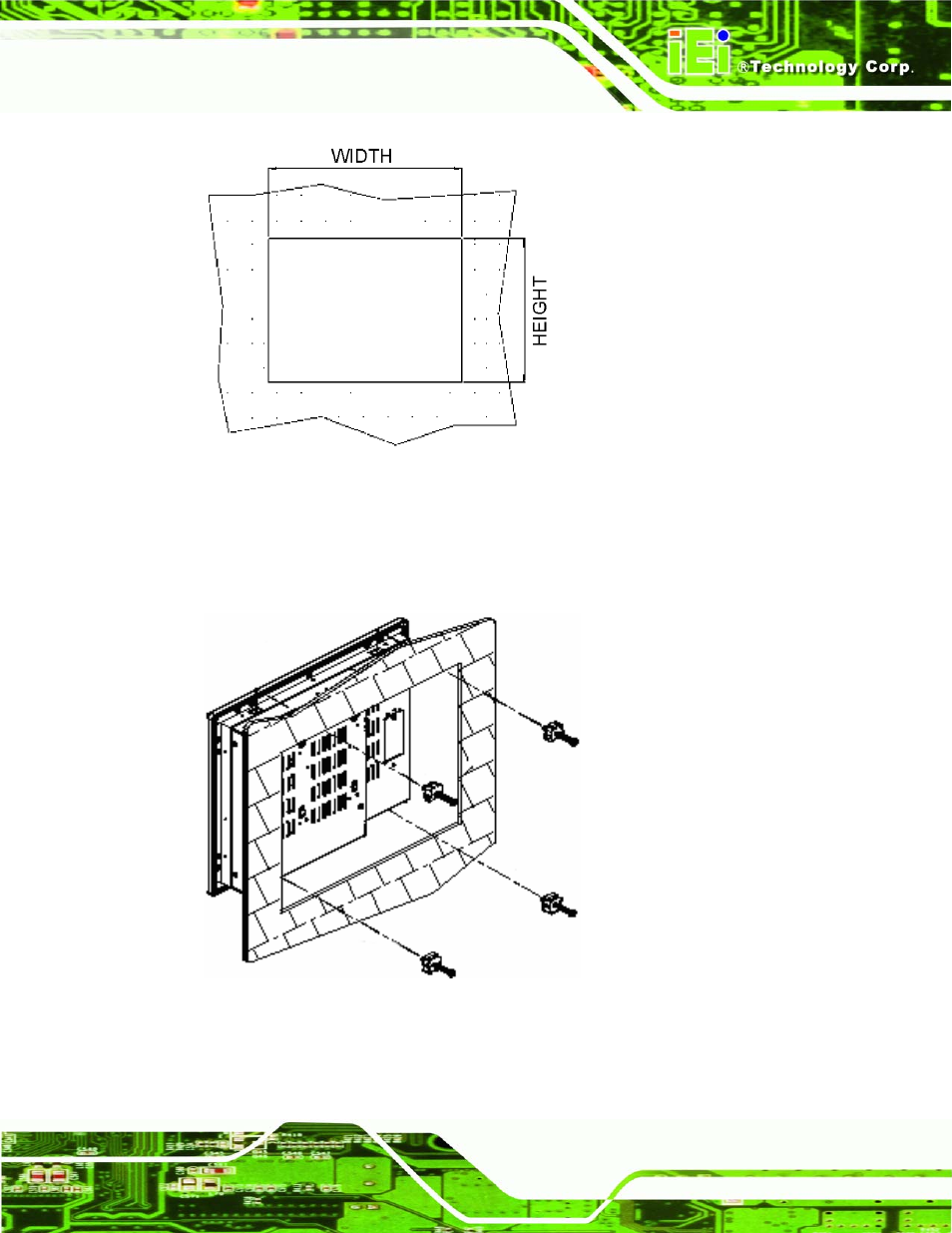

Figure 5-8: Panel Opening
Step 3:
Slide the monitor through the hole until the metal frame is flush against the panel
(Figure 5-9).
Figure 5-9: Insert the Monitor
Step 4:
Insert the panel mounting clamps into the pre-formed holes along the edges of
the monitor, behind the metal frame. Refer to the mounting kit packing list for the
