DM Series Industrial Monitor
Page 102

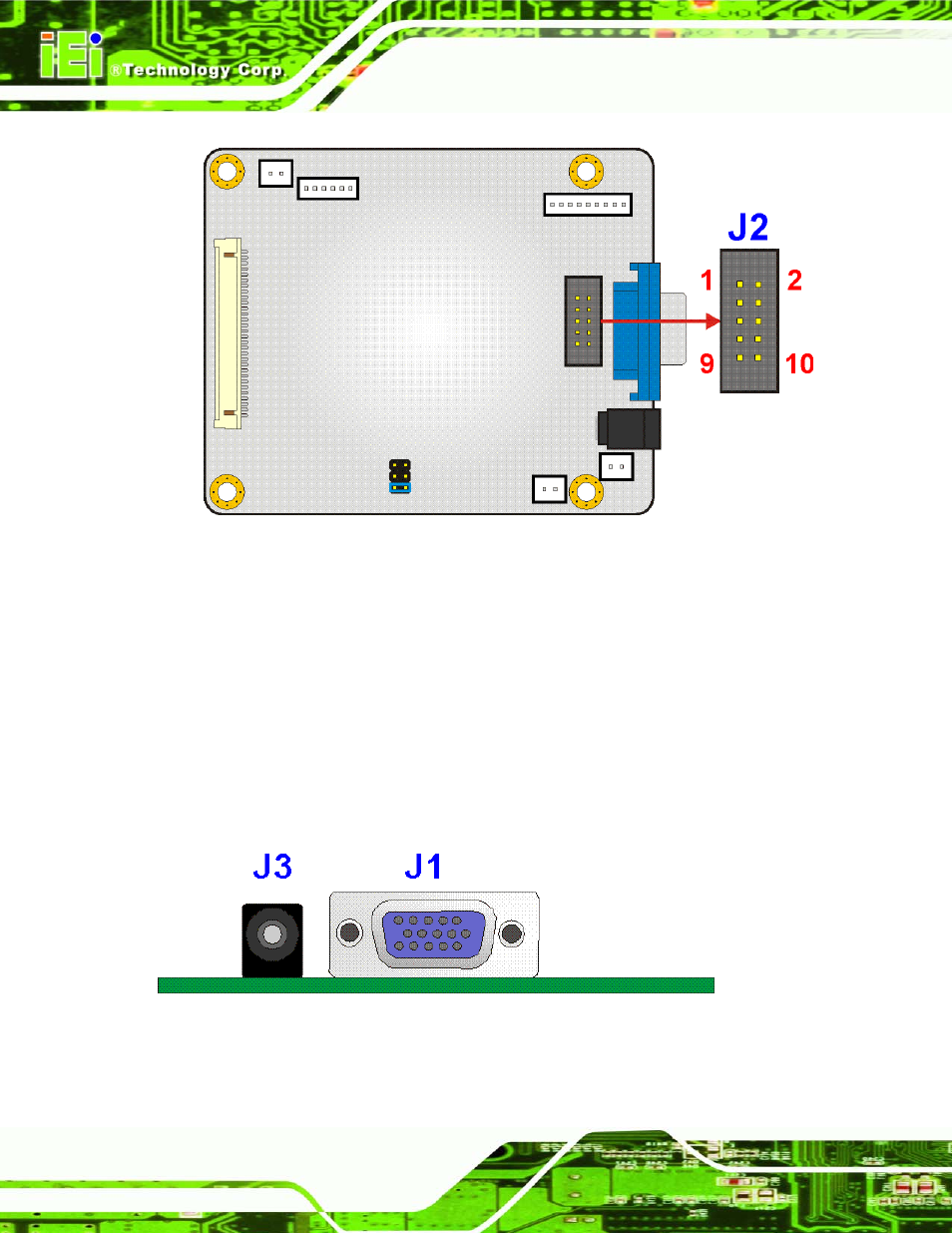

Figure 4-21: VGA Connector Location
4.3.14 AV-5350 External (Rear Panel) Connectors
Figure 4-22 shows the AV-5350 external (rear panel) connectors. The peripheral
connectors on the back panel of the monitor can connect to external devices. The
peripheral connectors on the rear panel are:
„ 1 x DC 12V connector
„ 1 x VGA connector
Figure 4-22: AV-5350 External (Rear Panel) Connectors
