DM Series Industrial Monitor
Page 130
5.4.1 Rear Panel Connectors Overview

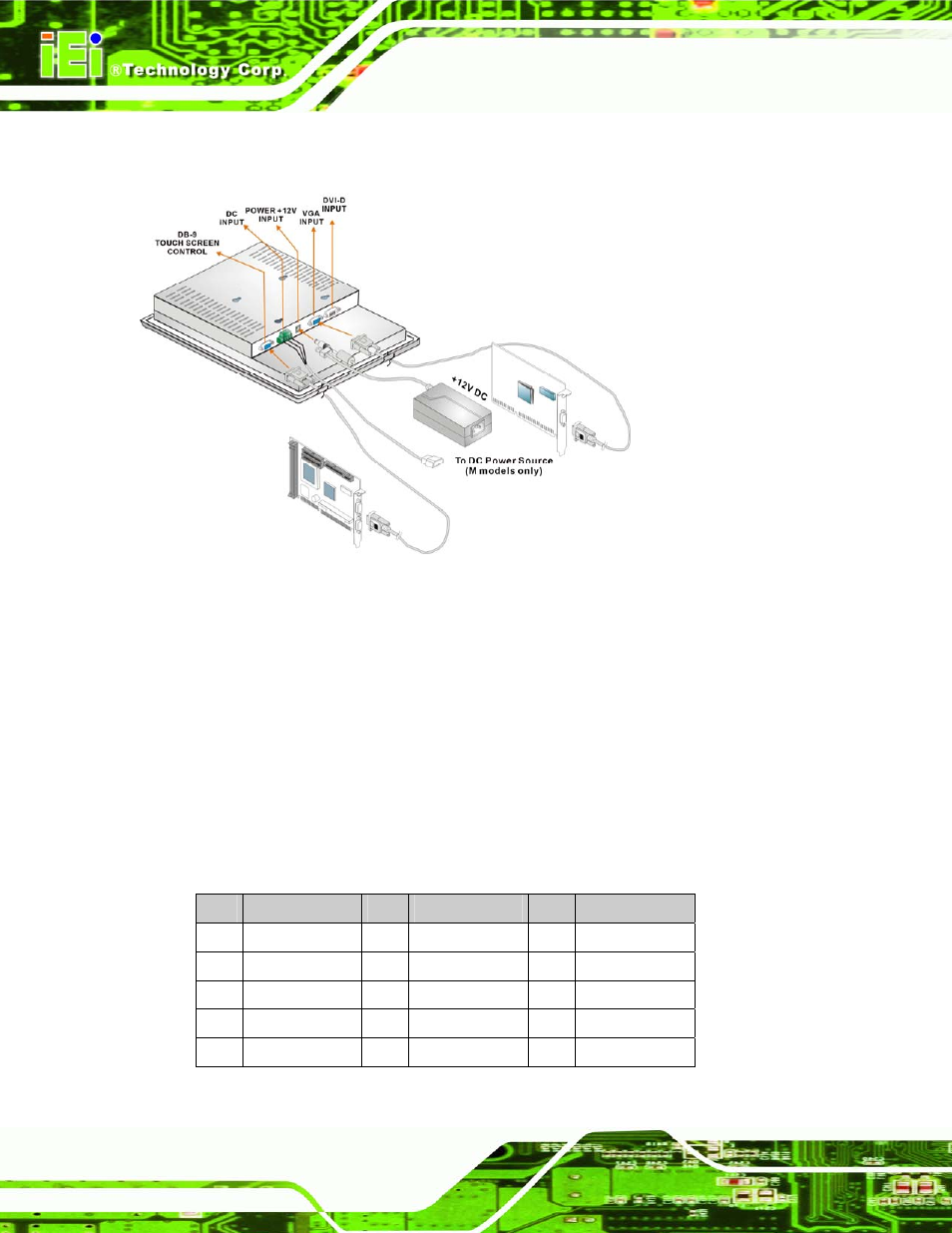

Figure 5-1: Monitor Rear Panel Connections
shows all the possible rear panel connectors for the DM series industrial
monitor. Refer to Table 5-1 for a list of the monitors and their corresponding connectors.
The following sections fully describe the rear panel connectors for the DM series industrial
monitor.
5.4.2 VGA Connector
Use the rear panel standard 15-pin female VGA connector to connect the monitor to the
system graphics interface.
PIN
DESCRIPTION
PIN
DESCRIPTION
PIN
DESCRIPTION
1 RED
6 GROUND
11
NC
2 GREEN
7 GROUND
12
DDCDAT
3 BLUE
8 GROUND
13
HSYNC
4
NC 9
NC 14
VSYNC
5
GROUND 10
GROUND 15
DDCCLK
