DM Series Industrial Monitor
Page
133

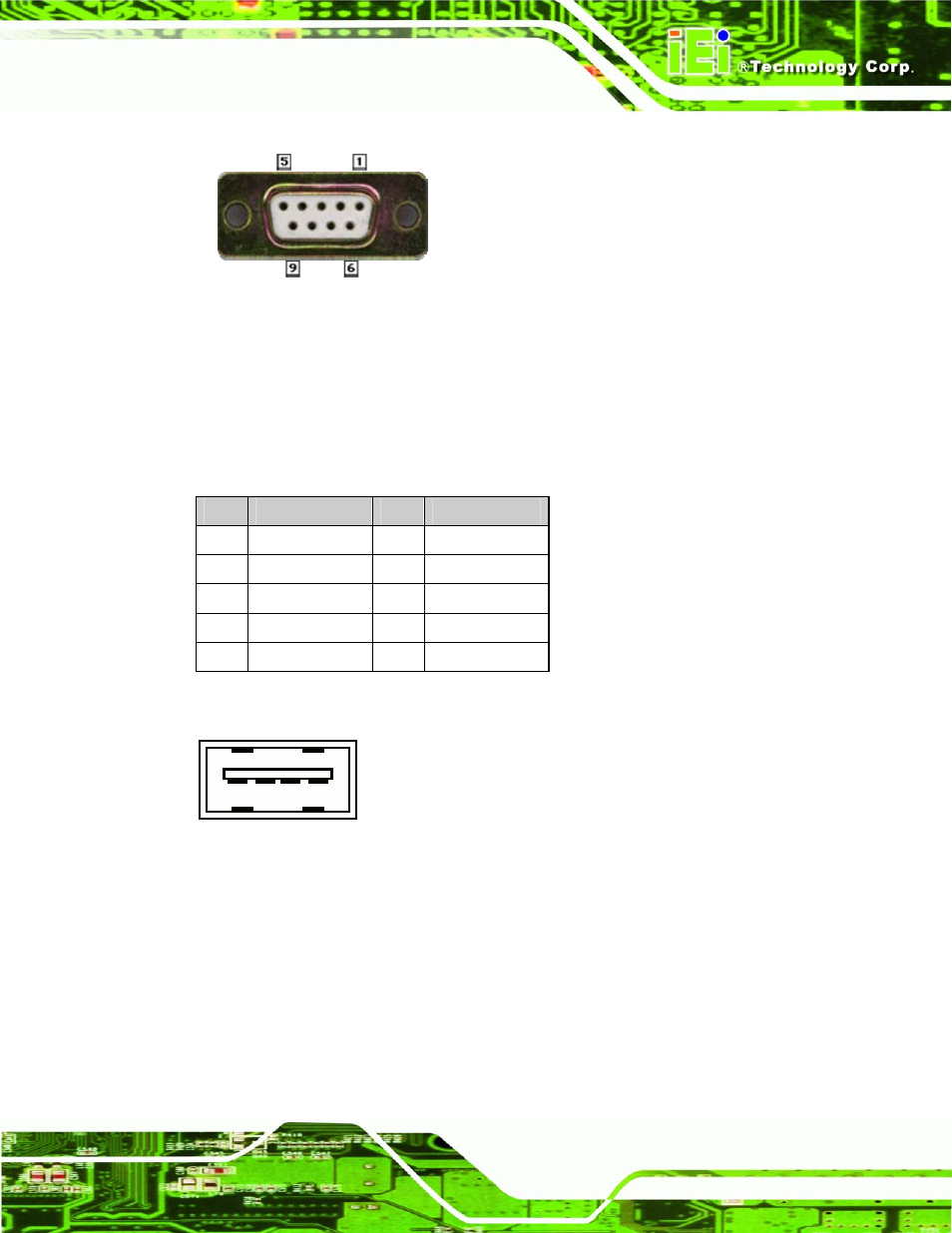

Figure 5-6: Optional RS-232 Touch Panel Connector
5.4.7 Optional USB Touch Panel Connector
Use the rear panel standard USB touch panel connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 DCD1 6 CTS1
2 DSR1 7 DTR1
3 RX1 8 RI1
4 RTS1 9 GND
5 TX1
Table 5-5: Optional USB Touch Panel Connector Pinouts
Figure 5-7: Optional USB Touch Panel Connector
