DM Series Industrial Monitor
Page 104
PIN DESCRIPTION PIN DESCRIPTION
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground

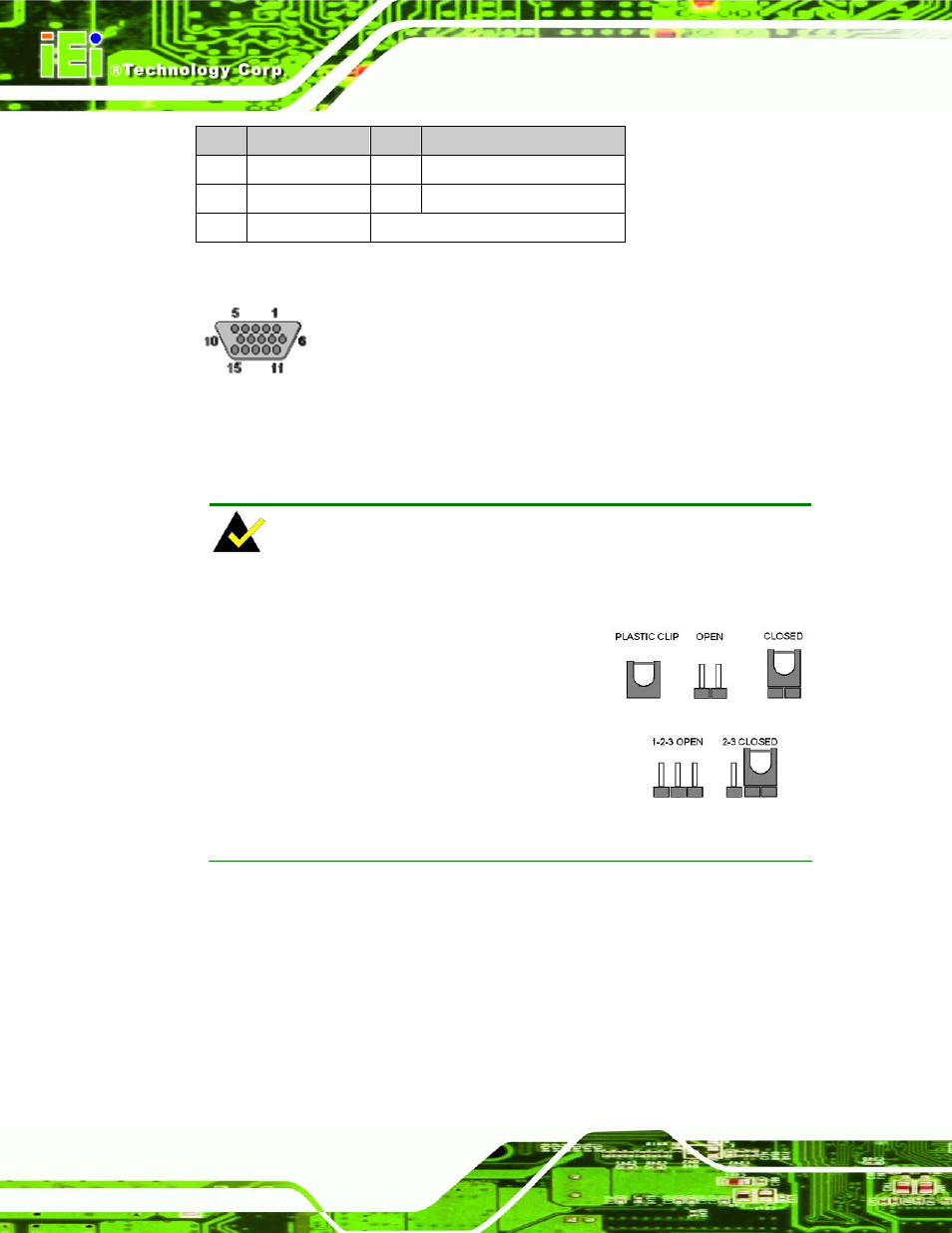

Table 4-28: VGA Connector Pinouts
Figure 4-23: VGA Connector Pinout Locations
4.3.17 AV-5350 Onboard Jumper
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to
connect them. To CLOSE/SHORT a jumper
means connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means
removing the plastic clip from a jumper.
Figure 4-24: Jumpers
The AV-5350 has one onboard jumper (Table 4-20).
