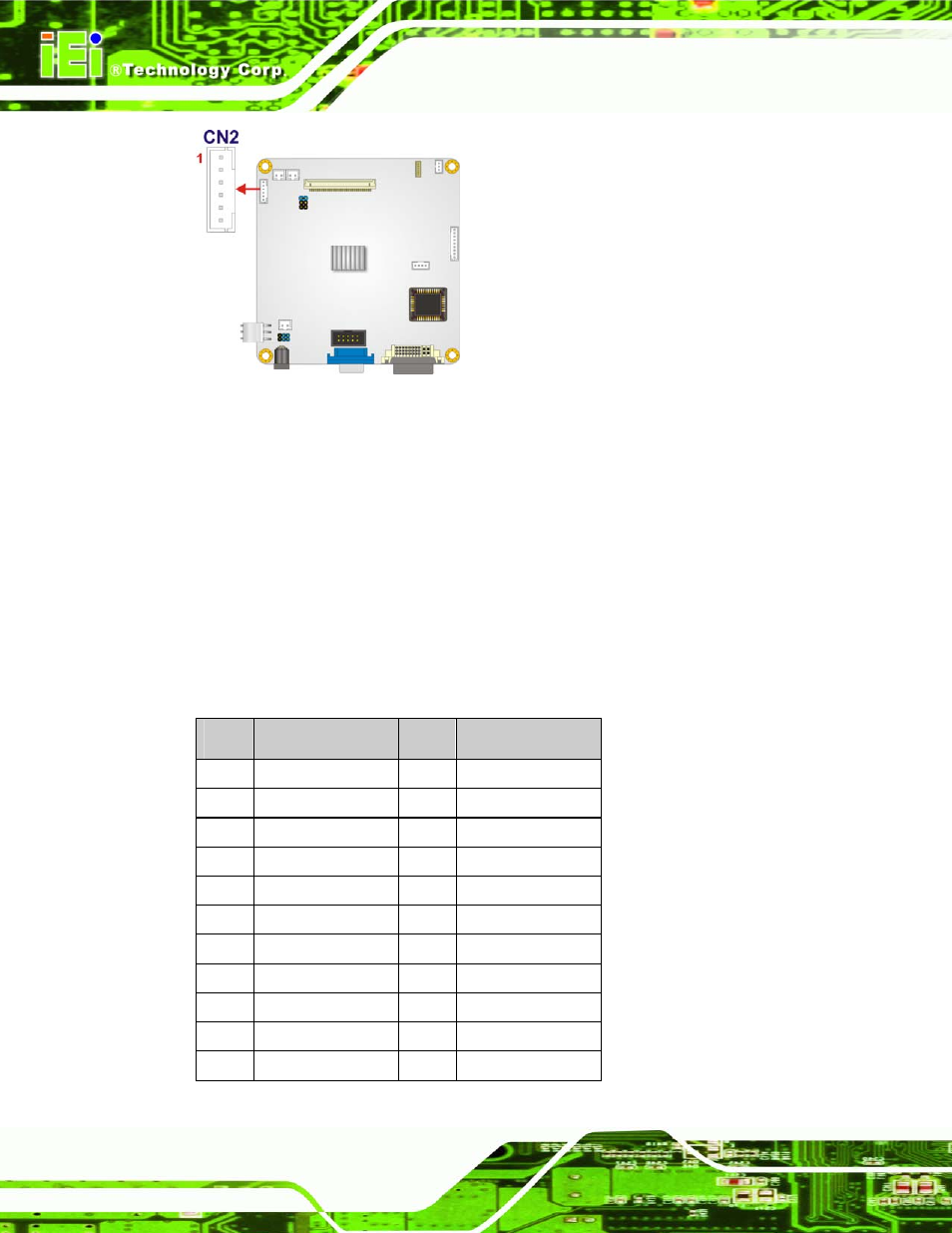

Figure 4-31: Backlight Inverter Connector Location
4.4.11 LVDS Output Connector
CN Label:
CN8
CN Type:
30-pin connector
CN Pinouts:
CN Location:
Use either LVDS output connector to connect the LCD panel to a system.
PIN
DESCRIPTION
PIN
DESCRIPTION
1
GND
2
GND
3
TXO3+
4
TXO3-
5
TXOC+
6
TXOC-
7
TXO2+
8
TXO2-
9
TXO1+
10
TXO1-
11
TXO0+
12
TXO0-
13
GND
14
GND
15
TXE3+
16
TXE3-
17
TXEC+
18
TXEC-
19
TXE2+
20
TXE2-
21
TXE1+
22
TXE1-
