DM Series Industrial Monitor
Page
131

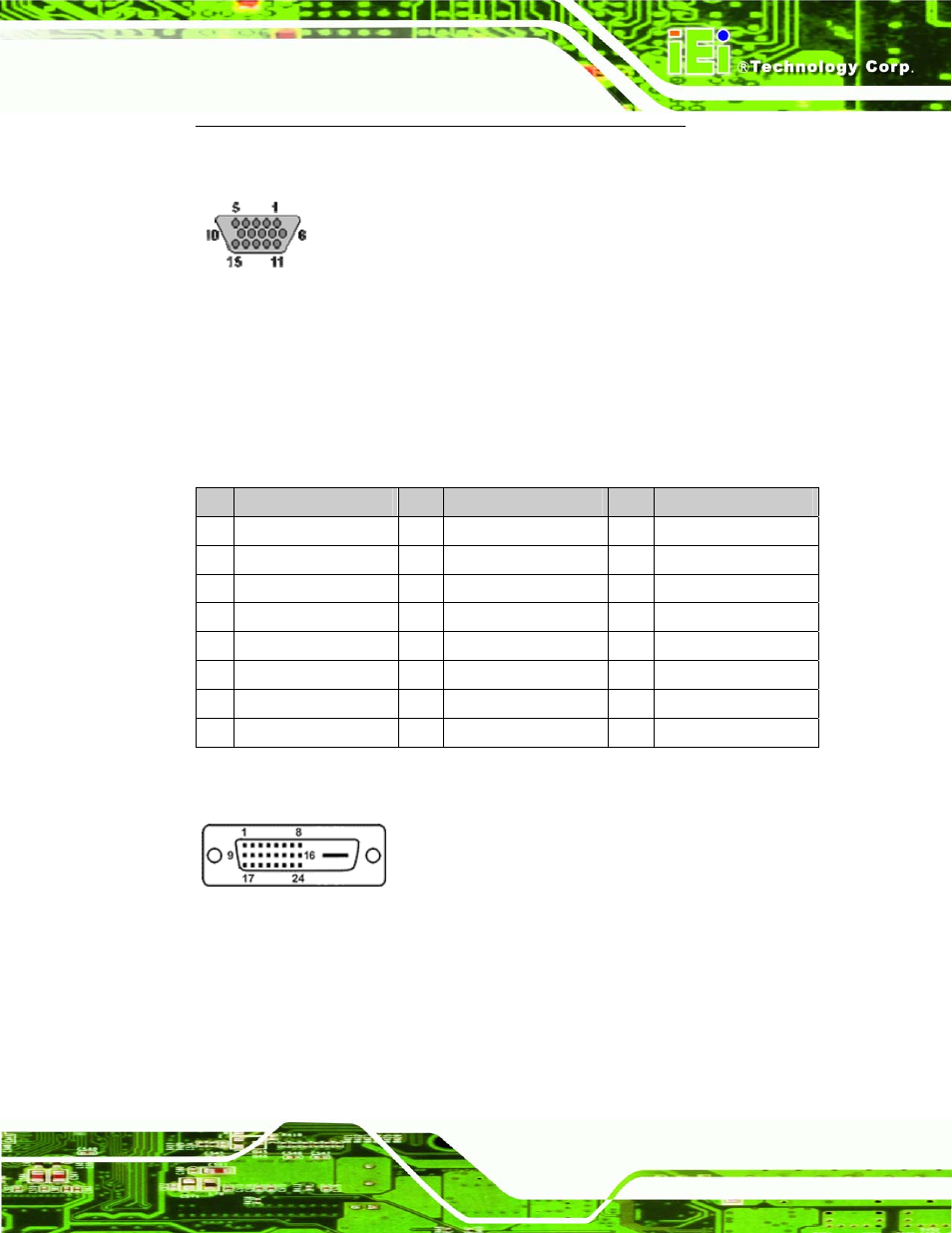

Table 5-2: VGA Connector Pinouts
Figure 5-2: VGA Connector
5.4.3 DVI-D Connector
Use the rear panel standard 24-pin female DVI-D connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDSData0+
3 TMDS Data2/4 Shield 11 TMDS Data1/3 Shield 19 TMDS Data0/5 Shield
4 TMDS Data4- 12 TMDS Data3- 20 TMDS Data5-
5 TMDS Data4+ 13 TMDS Data3+ 21 TMDS Data5+
6 DDC Clock [SCL] 14 +5 V Power 22 TMDS Clock Shield
7 DDC Data [SDA] 15 Ground (for +5 V) 23 TMDS Clock +
8 Analog vertical sync 16 Hot Plug Detect 24 TMDS Clock -
Table 5-3: DVI-D Connector Pinouts
Figure 5-3: DVI-D Connector
5.4.4 12V Power Connector
Use the rear panel +12V DC jack to connect the monitor to a power source.
