5.5.3 DIN Rail Installation
To mount the DM series industrial monitor onto a DIN rail, please follow the steps below.

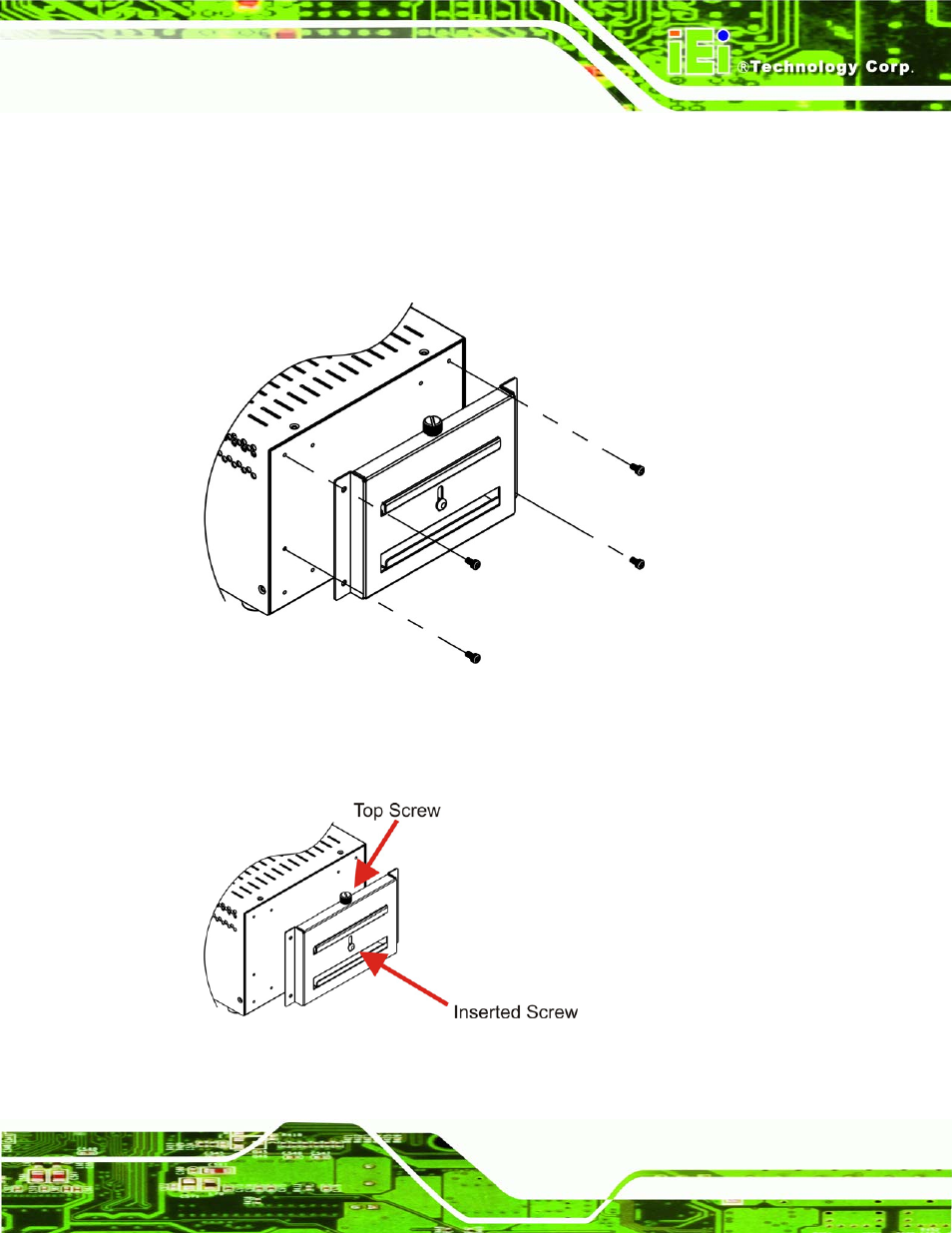

Step 1: Attach the DIN rail mounting bracket to the rear of the monitor. Secure the
bracket to the monitor with the supplied retention screws (Figure 5-17).
Figure 5-17: DIN Rail Mounting Bracket
Step 2: Make sure the inserted screw in the center of the bracket is at the lowest
position of the elongated hole (Figure 5-18).
Figure 5-18: Screw Locations
