DM Series Industrial Monitor
Page
117
The AV-5300 supports two internal power input connectors.
PIN
DESCRIPTION
1 +12V
2 GND
Table 4-40: Power Input Connector Pinouts (CN24)
PIN
DESCRIPTION
1 +12V
Input
2 GND
3
+9V~36V to external power module
Table 4-41: Power Input Connector Pinouts (CN25)

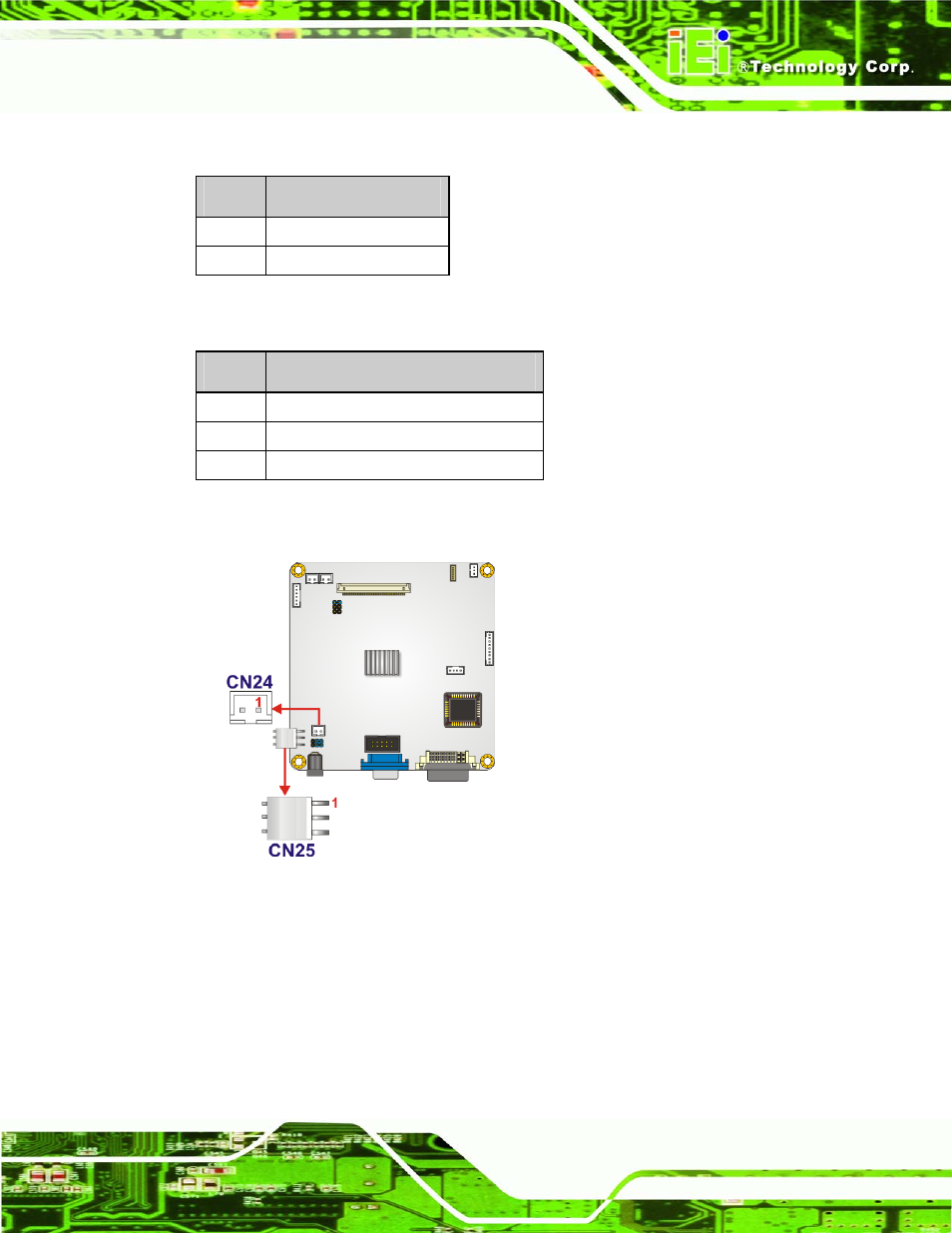

Figure 4-34: Power Input Connector Locations
