1.3.3 AD Board
The DM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing signals from a CPU card through cabling. Figure 1-3 shows the
AV-5300 AD board as a sample of a typical AD board for the DM series industrial monitor.
Refer to Chapter 4 for a complete description of AD boards and their connectors.

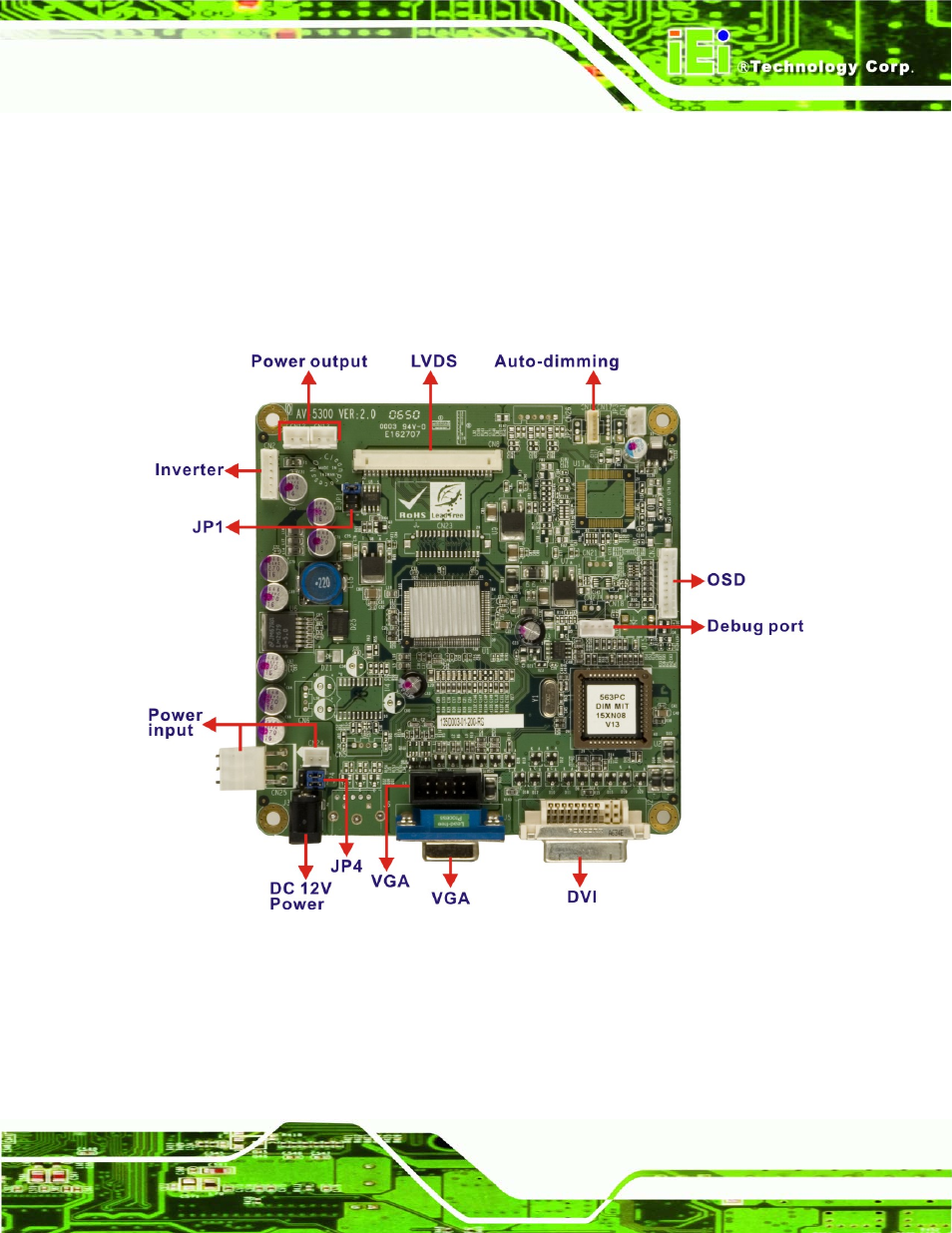

Figure 1-3: AV-5300 AD Board
