Figure 5-4: 12V Power Connector
5.4.5 Optional DC Power Connector
Use the rear panel 3-pin terminal block DC power connector to connect the monitor to a
DC power source.

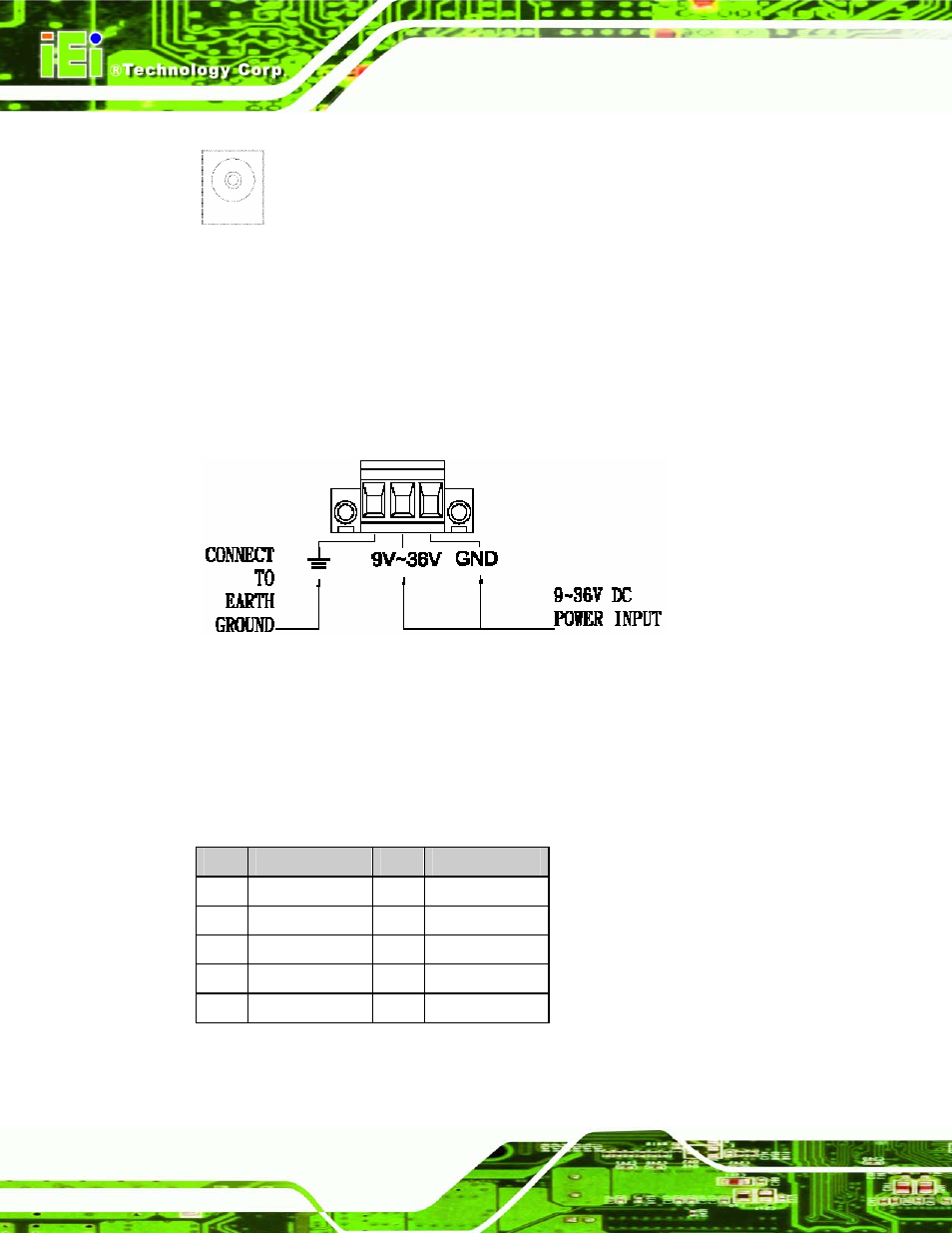

Figure 5-5: DC Power Connector
5.4.6 Optional RS-232 Touch Panel Connector
Use the rear panel standard RS-232 DB-9 female touch panel connector to connect the
monitor to the system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 DCD1 6 CTS1
2 DSR1 7 DTR1
3 RX1 8 RI1
4 RTS1 9 GND
5 TX1
Table 5-4: Optional RS-232 Touch Panel Connector Pinouts
