DM Series Industrial Monitor
Page 122
4.4.20 VGA Connector
CN Label:
J5
CN Type:
D-sub 15 female connector
CN Pinouts:
See Table 4-46 and Figure 4-39
CN Location:
Use the standard D-sub 15-pin VGA connector to connect the monitor to a system.
PIN
DESCRIPTION
PIN
DESCRIPTION
1 Red
9 No
Connect
2 Green
10 Ground
3 Blue
11 No
Connect
4
No Connect
12
DDC DAT
5 Ground
13 Horizontal
Synchronization
6 Ground
14 Vertical
Synchronization
7 Ground
15 DDC
Clock
8 Ground

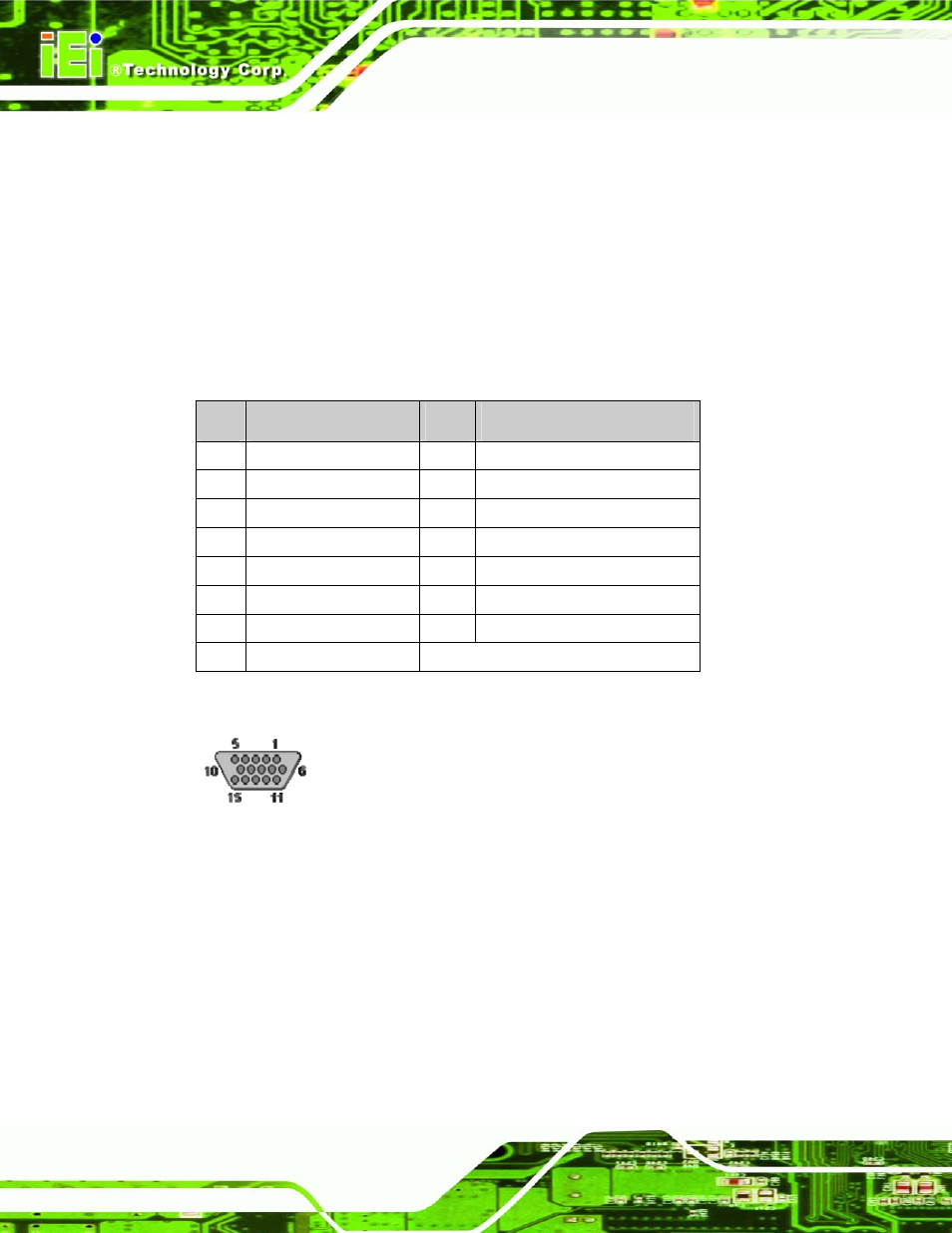

Table 4-46: VGA Connector Pinouts
Figure 4-39: VGA Connector Pinout Locations
