The AV-5300 supports two power output connectors, one for 12V and the other for 5V.
PIN DESCRIPTION
1 +12V
2 GND
Table 4-38: Power Output Connector Pinouts (CN12)
PIN DESCRIPTION
1 +5V
2 GND
Table 4-39: Power Output Connector Pinouts (CN13)

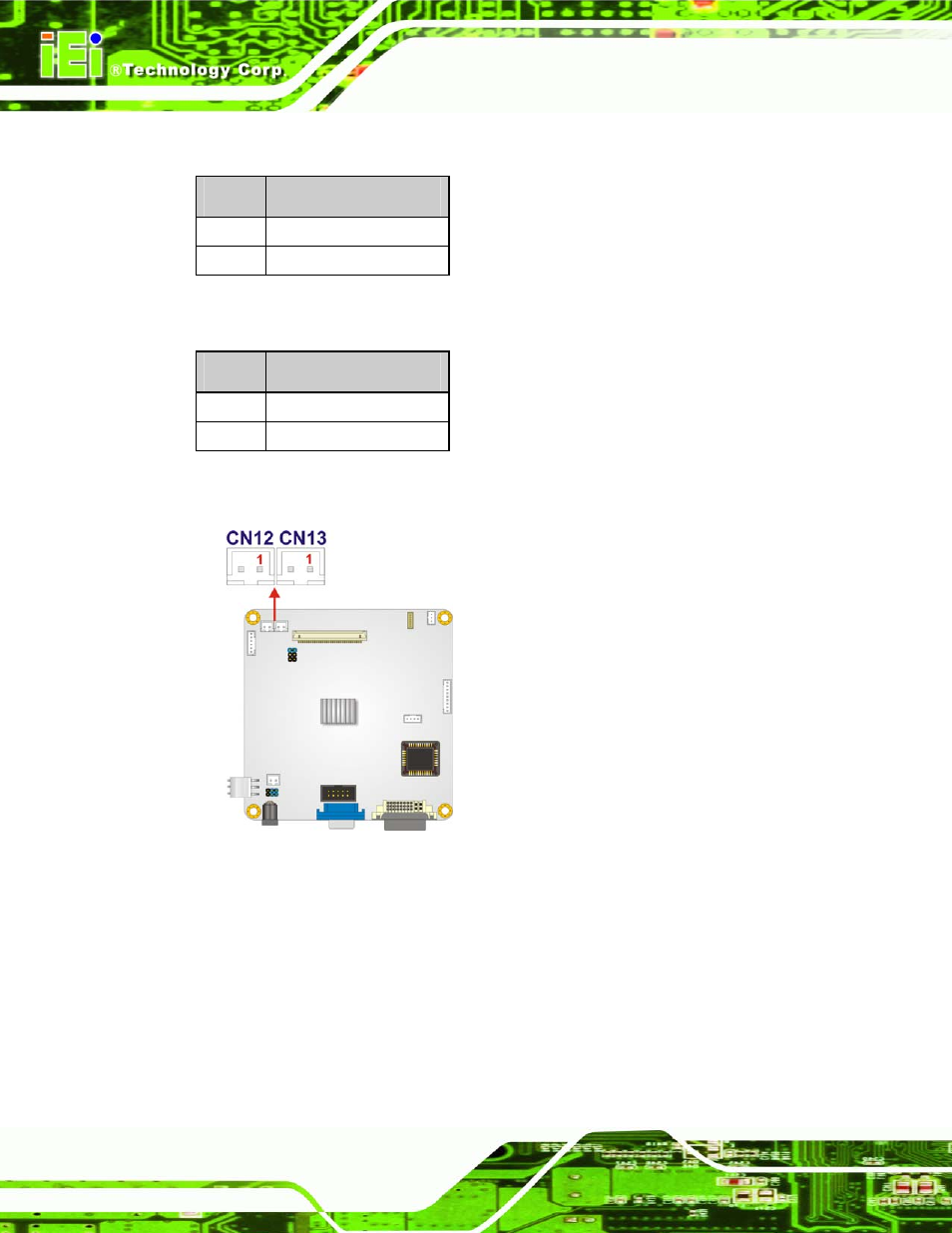

Figure 4-33: Power Output Connector Locations
4.4.13 Power Input Connector
CN Label: CN24, CN25
CN Type: 2-pin wafer connector, 3-pin wafer connector
CN Pinouts: See Table 4-40 and Table 4-41
CN Location: See Figure 4-34
