OMS OMNEO Main Station
System configuration | en
27
Bosch Security Systems, LLC
Technical Manual
01-2021 | 03 | F.01U.380.820
8.4
Configure the RVON interface
To
configure the RVON interface from the front panel
, do the following:
1.
Navigate to the
RVON icon
.
2.
Click the
ENC2 encoder knob
.

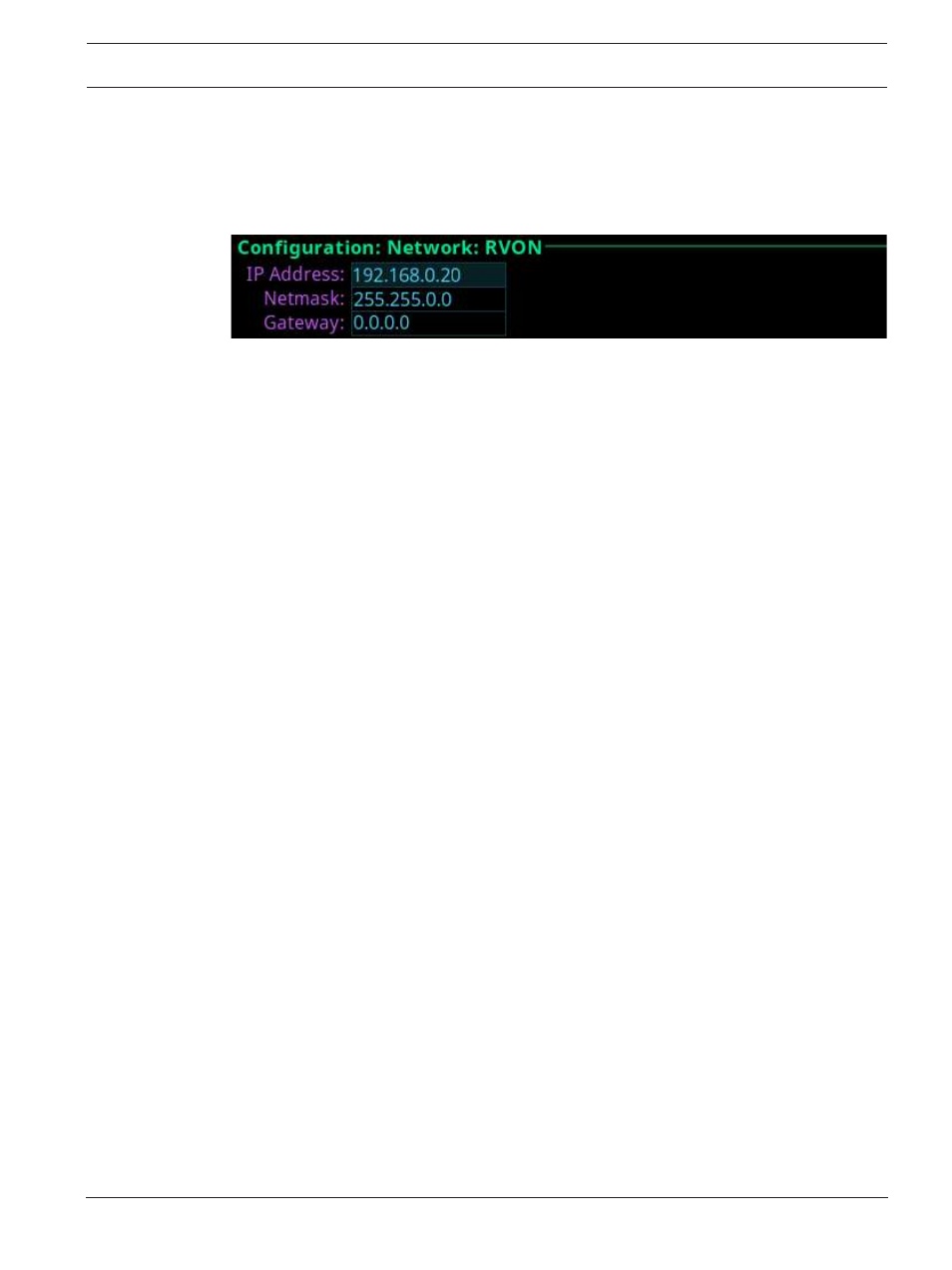

The RVON Configuration screen displays.
3.
Enter the
IP address
of the RVON interface.
4.
Enter the
Netmask address
for the RVON interface.
5.
Enter the
Gateway address
for the RVON interface, if applicable.
6.
Click the
ENC1 encoder knob
to exit.
A confirmation to save or discard changes appears.
7.
Rotate the
ENC2 encoder knob
to the
desired action
.
8.
Click the ENC2 encoder knob to
confirm
.
