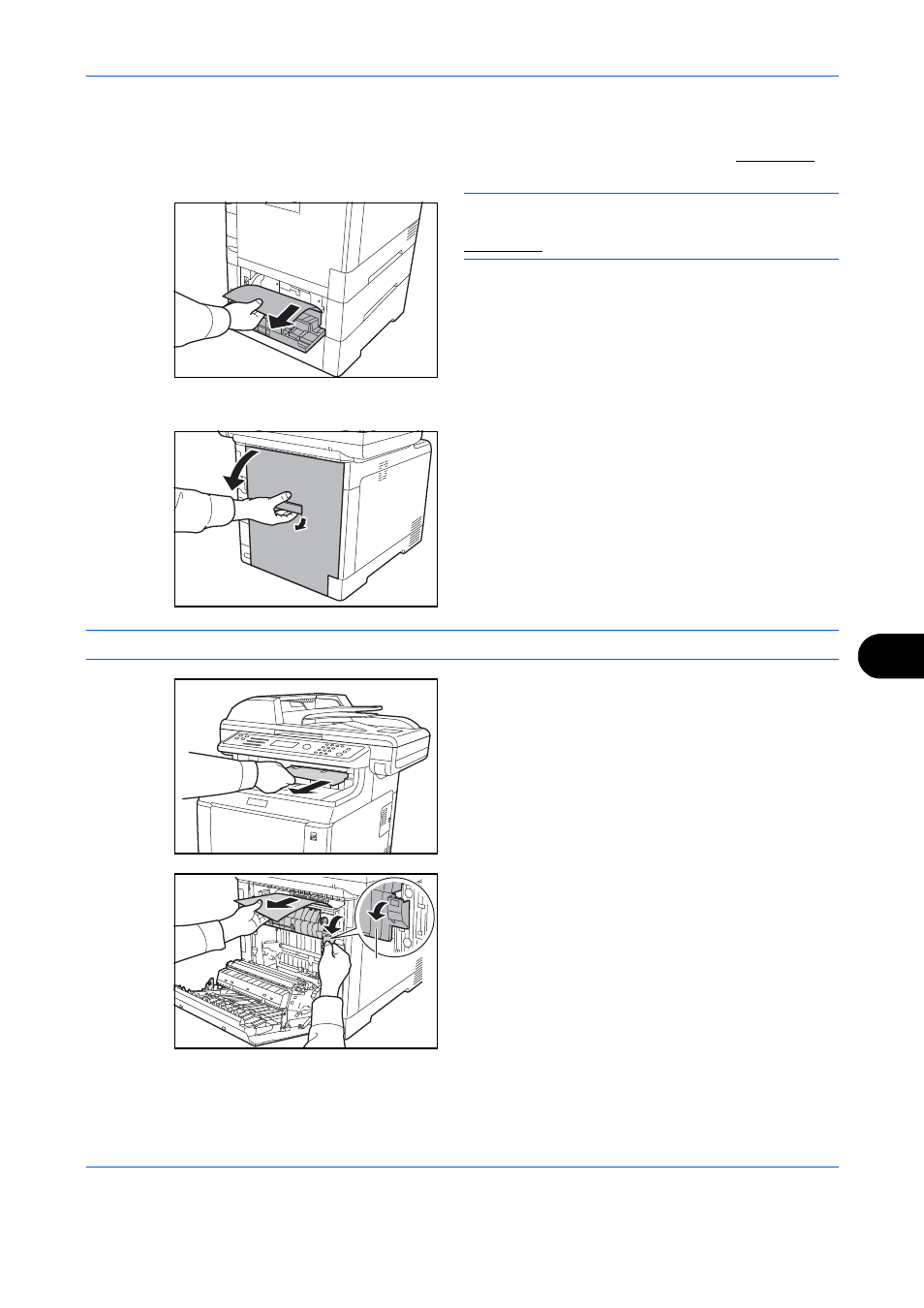

background image

Troubleshooting

10-19

10

Paper jam in the paper feeder

If the paper jam cannot be removed using the procedure in paper jam in the paper cassette on page 10-18,
open the rear cover of the paper feeder and remove the jammed paper.

NOTE:

If the paper cannot be removed, do not try to

forcefully remove it. Go to paper jam in the feed unit on
page 10-19

.

Inside the Machine

1

Pull up the rear cover lever and open the rear
cover.

CAUTION:

Some parts are very hot inside the machine. Exercise caution as there is a risk of burn injury.

2

If most of the jammed paper is out in the top tray,
grasp the paper and pull it out.

3

If the jammed paper reaches the fuser unit as
shown, open the fuser cover, grasp the paper, and
pull it out.

Fuser

Cover
