HEIDENHAIN MANUALplus 620 361
4.9 Dr
illing and milling pat
ter
ns

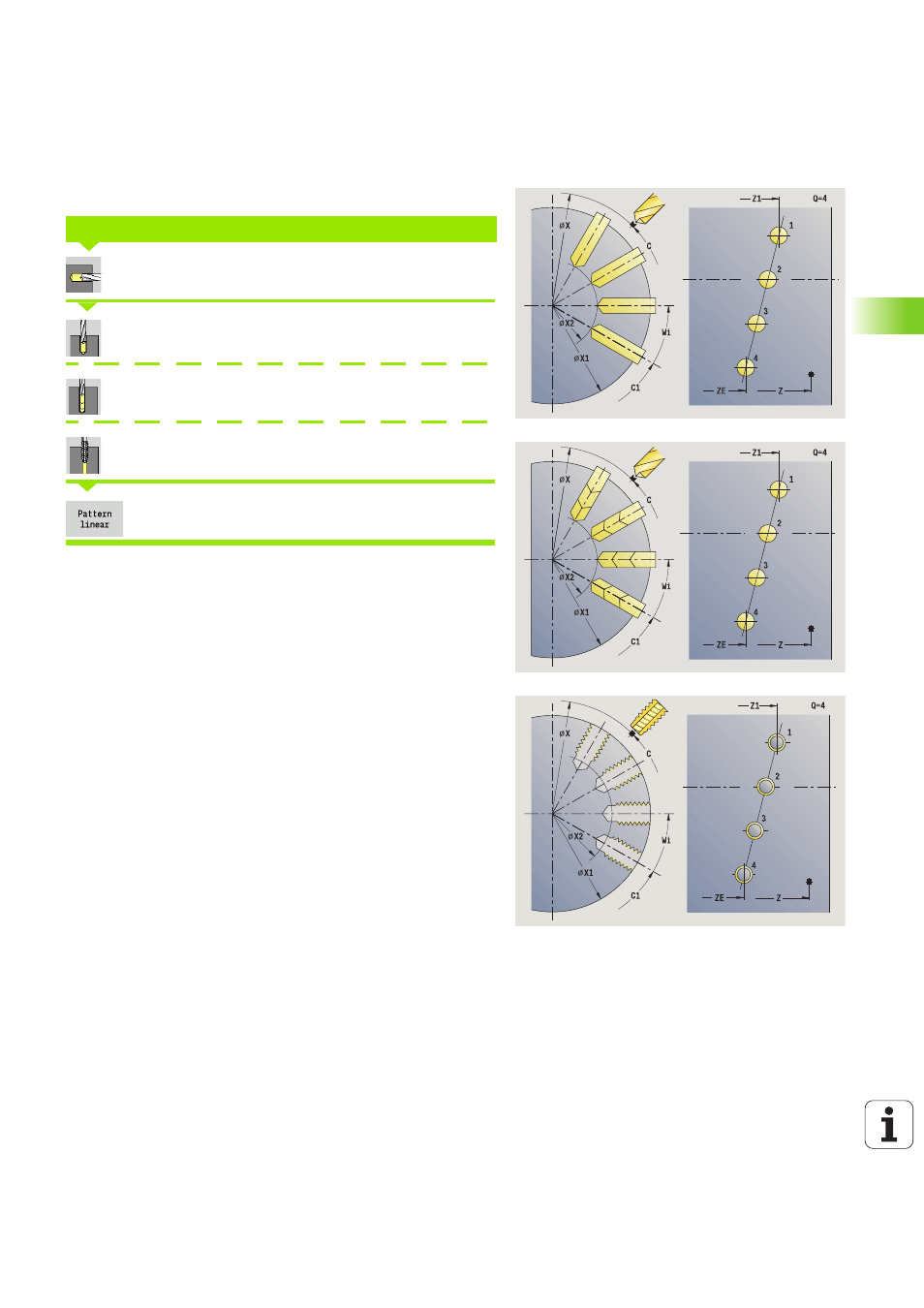

Drilling pattern linear, radial
Select drilling
Select drilling, radial
Select deep-hole drilling, radial
Select tapping, radial
Press the Pattern linear soft key
Press Pattern linear during drilling cycles to machine drilling patterns
in which the individual features are arranged at a regular spacing in a
straight line on the lateral surface.
You define the pattern position with end point of pattern and angle
increment
or angle increment and number of holes.
The parameters of the hole are also requested.
DRILLING PATTERN LINEAR, RADIAL
Cycle parameters
X, Z
Starting point
C Spindle angle (C-axis position)—(default: current spindle
angle)
Q Number of holes
Z1 Starting point of pattern (position of 1st hole)
ZE End point of pattern (default: Z1)
C1 Angle of 1st hole (starting angle)
Wi Angle increment (pattern spacing)—(default: holes are
regularly spaced on the lateral surface)
