Recessing, radial
Call the recessing cycles
Select recessing, radial

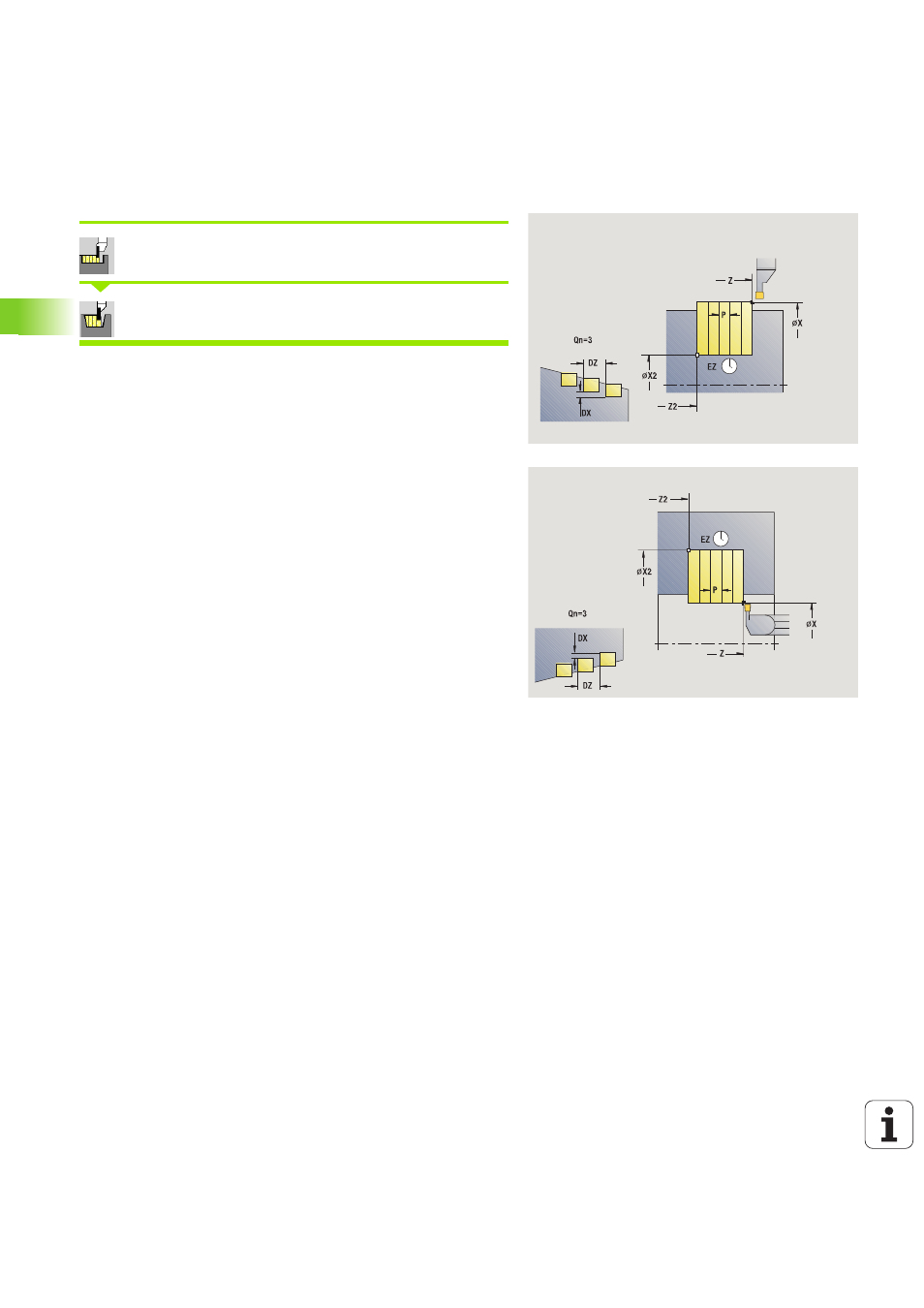

The cycle machines the number of recesses defined in number Qn. The
parameters for starting point and end point of contour define the
first recess (position, recess depth and recess width).
Cycle parameters
X, Z
Starting point
X2, Z2 Contour end point
P Recessing width: Infeeds <= P (no input: P = 0.8 * cutting
width of the tool)
EZ Dwell time for chip breaking (default: length of time for
two revolutions)
Qn Number of recess cycles (default: 1)
DX, DZ Distance to subsequent recess with respect to the
preceding recess
G47 Safety clearance (siehe Seite 142)
G14 Tool change point (siehe Seite 142)
T Turret pocket number
ID Tool ID number
S Spindle speed/cutting speed
F Feed per revolution
MT M after T: M function that is executed after the tool call T.
