Measuring
Lines constructed from a point and a circle
Up to three line constructions can be made from a point and a circle:
• Two point line:
The line from the point to the center of the circle
• Tangent line 1:
The line from the point to the first tangent of the circle
• Tangent line 2:
The line from the point to the second tangent of the circle
To construct a line from a point and a circle:
1 Touch the Measure line icon
2 Touch the point feature
3 Press the Enter key
4 Touch the circle feature
5 Press the Enter key
6 Press the Finish key
The two point line will be constructed. Alternative line constructions can be selected from the drop-down
menu in the DRO window.

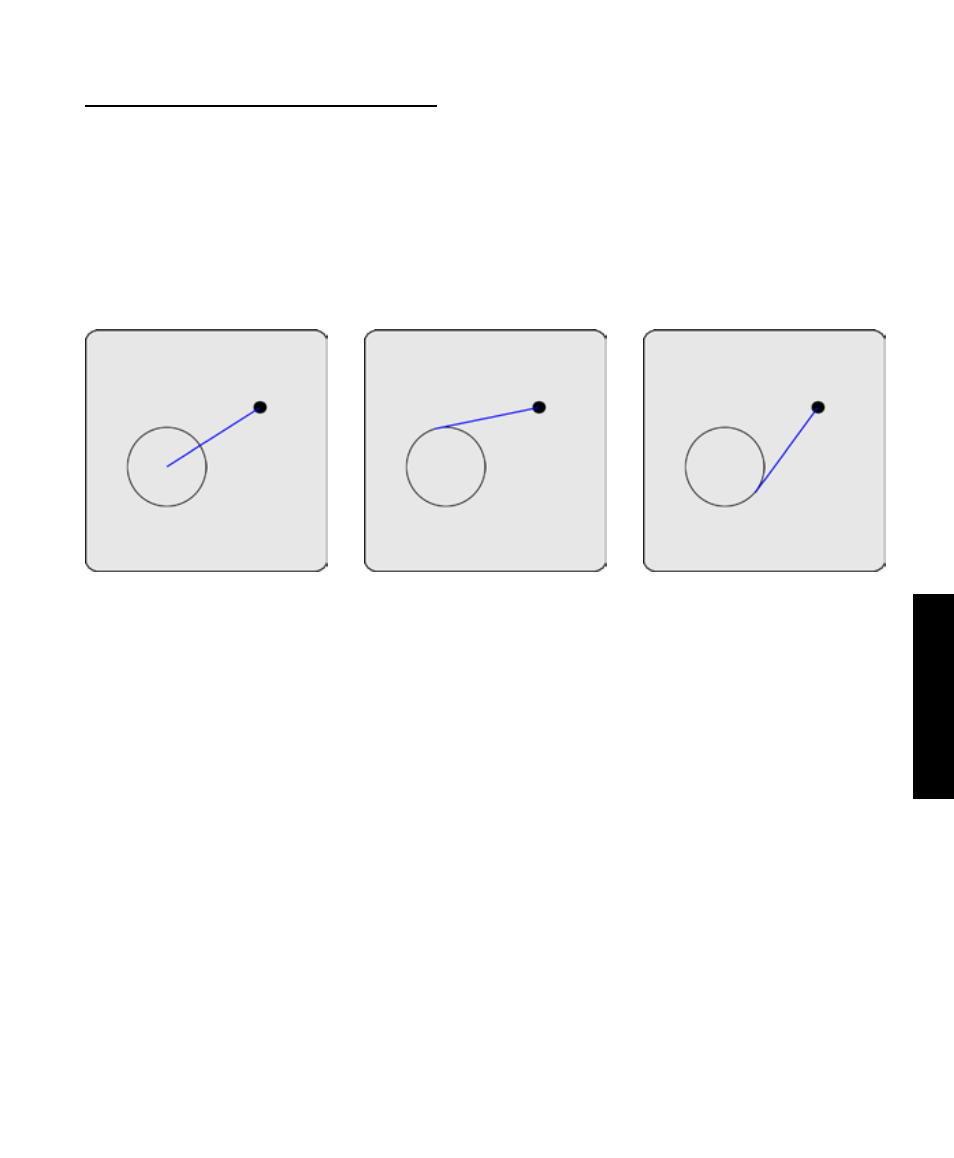

Two point line Tangent line 1 Tangent line 2
