Measuring

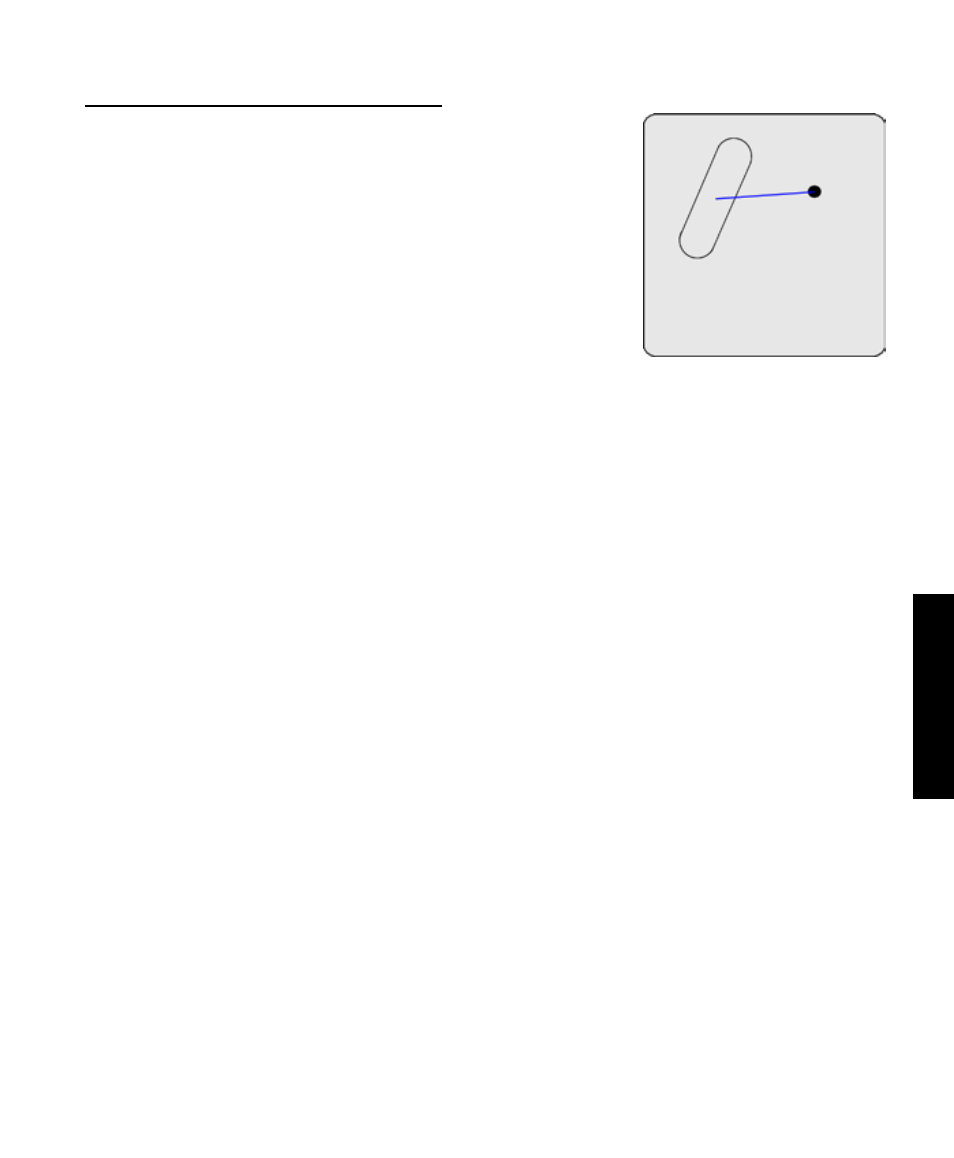

Distance constructed from a point and a slot
The distance feature will be constructed between the point and the cen-

ter of the slot.

To construct a distance from a point to a slot:

1 Touch the Measure Distance icon

2 Touch the point Feature

3 Press the Enter key

4 Touch the slot Feature

5 Press the Enter key

6 Press the Finish key

The new distance feature will be constructed between the point and the slot.

Constructing Features
