Angle constructed from two lines

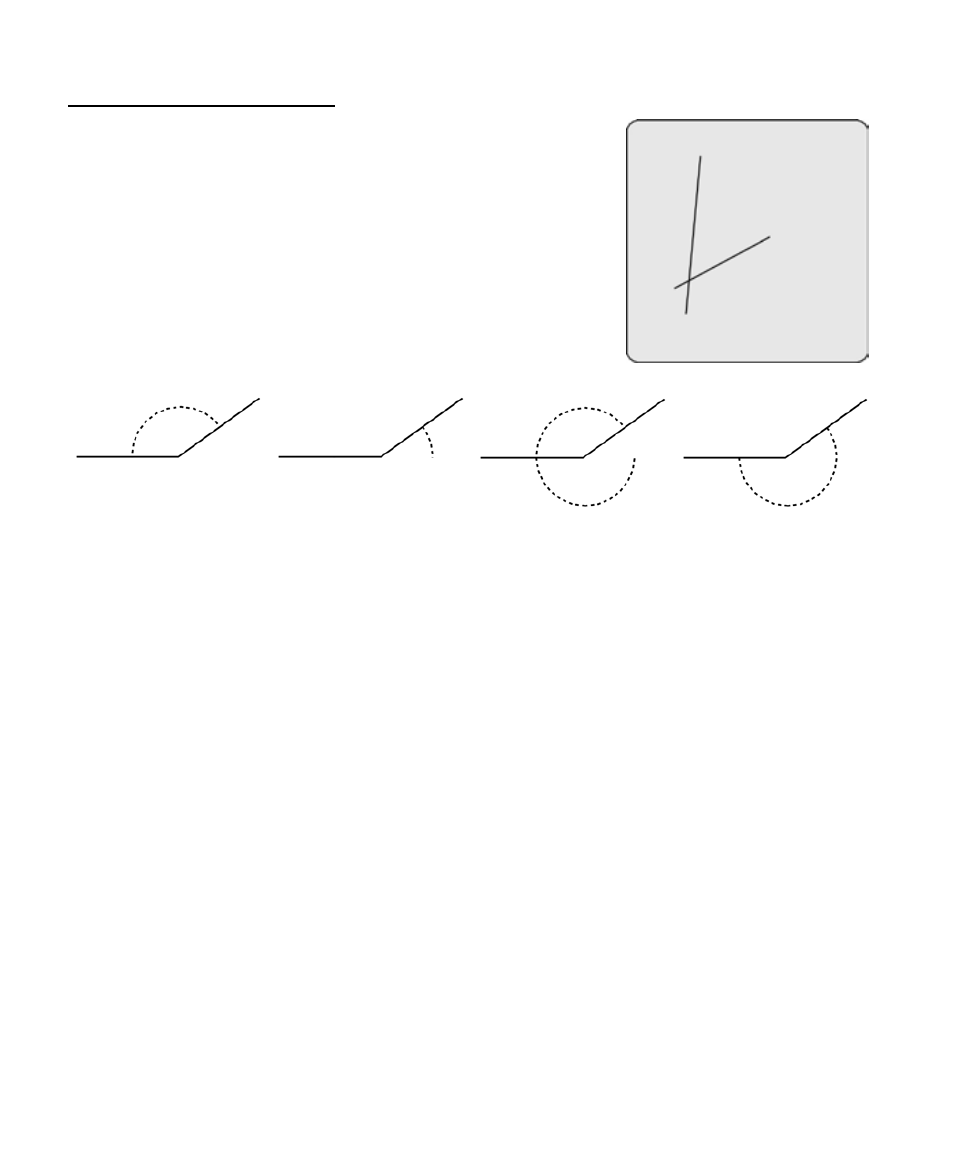

Up to four angle constructions can be made from two lines:
• Interior angle:
The angle included between the lines
• 180 minus:
180 degrees minus the angle included between the lines
• 180 plus:
180 degrees plus the angle included between the lines
• 360 minus
360 degrees minus the angle included between the lines
To construct angles from two lines:
1 Touch the Measure Angle icon
2 Touch the first line feature
3 Press the Enter key
4 Touch the second line feature
5 Press the Enter key
6 Press the Finish key
The interior angle will be constructed. Alternative angle constructions can be selected from the drop-down
menu in the DRO window.
Interior angle 180 minus 180 plus 360 minus
