57
6
Measuring

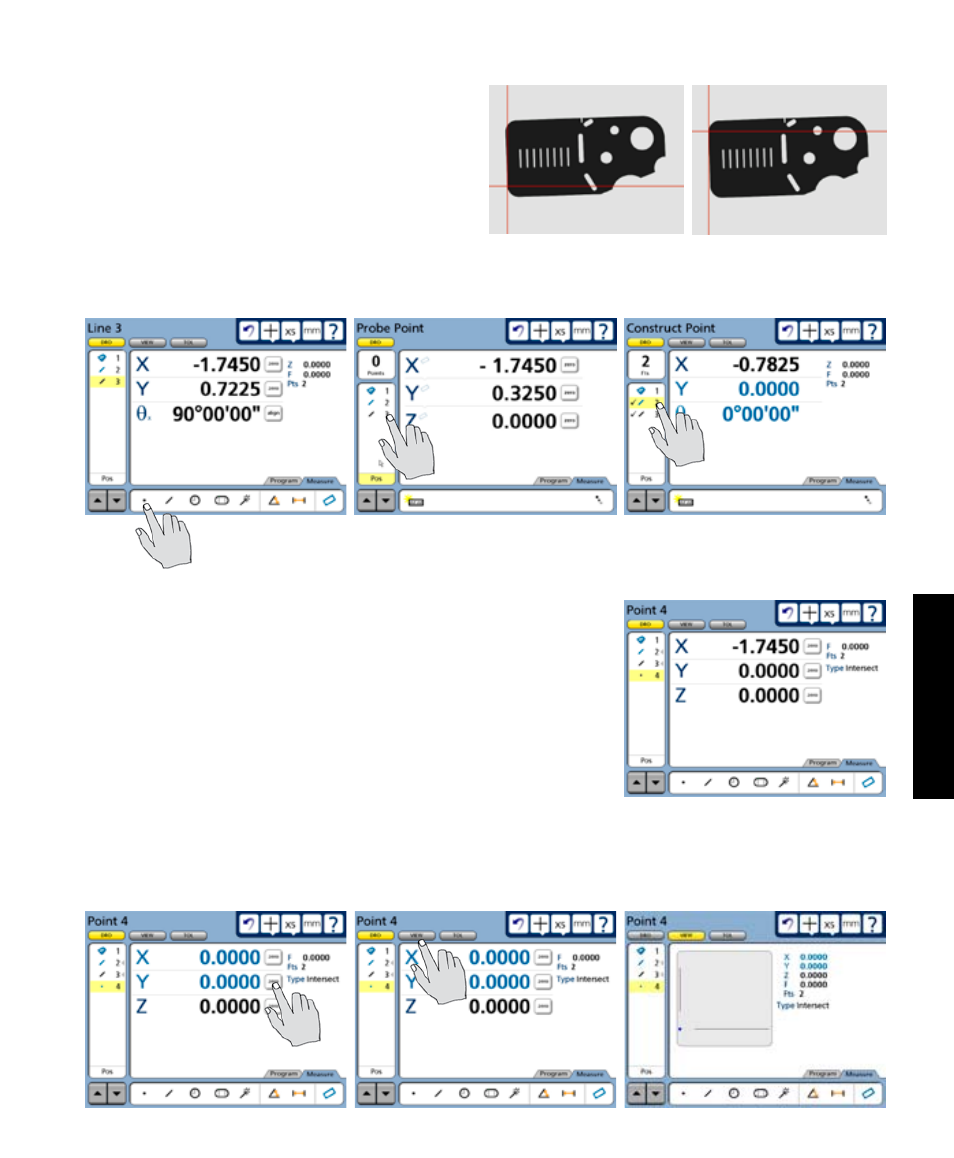

2 Probe two or more points well distributed
along the left side of the part, and then press the
Finish button. The line feature will be added to the
Features list.
3 Touch the Measure Point icon, and then touch each of the two lines in the feature list to checkmark
them.
4 Press the Finish key to complete the point construction.
5 While the constructed point is selected, touch the Zero buttons of the X and Y axes to define the
point’s location as the zero datum. Select the View window to see the zero datum at the intersection of the
X and Y axes.
