14 QC-300 Series User’s Guide
Measurement functions
The measurement functions are divided into two tabbed areas:
• Measure Select a measurement type, such as circle or line
• Program Record, edit or play back a program of measurement steps
Selecting a measurement type
Measurement types are selected from the Measure tab. Touch the Measure tab to display icons for the
different measure types.
Touch a measure icon to select the desired measure type. In some cases, such as when selecting circles and
slots, related measure types will also be presented as shown in this example of touching the circle icon to
display the arc measure type.
NOTE
Details regarding performing measurements and the use of measurement tools are
provided in Chapter 6: Measuring.

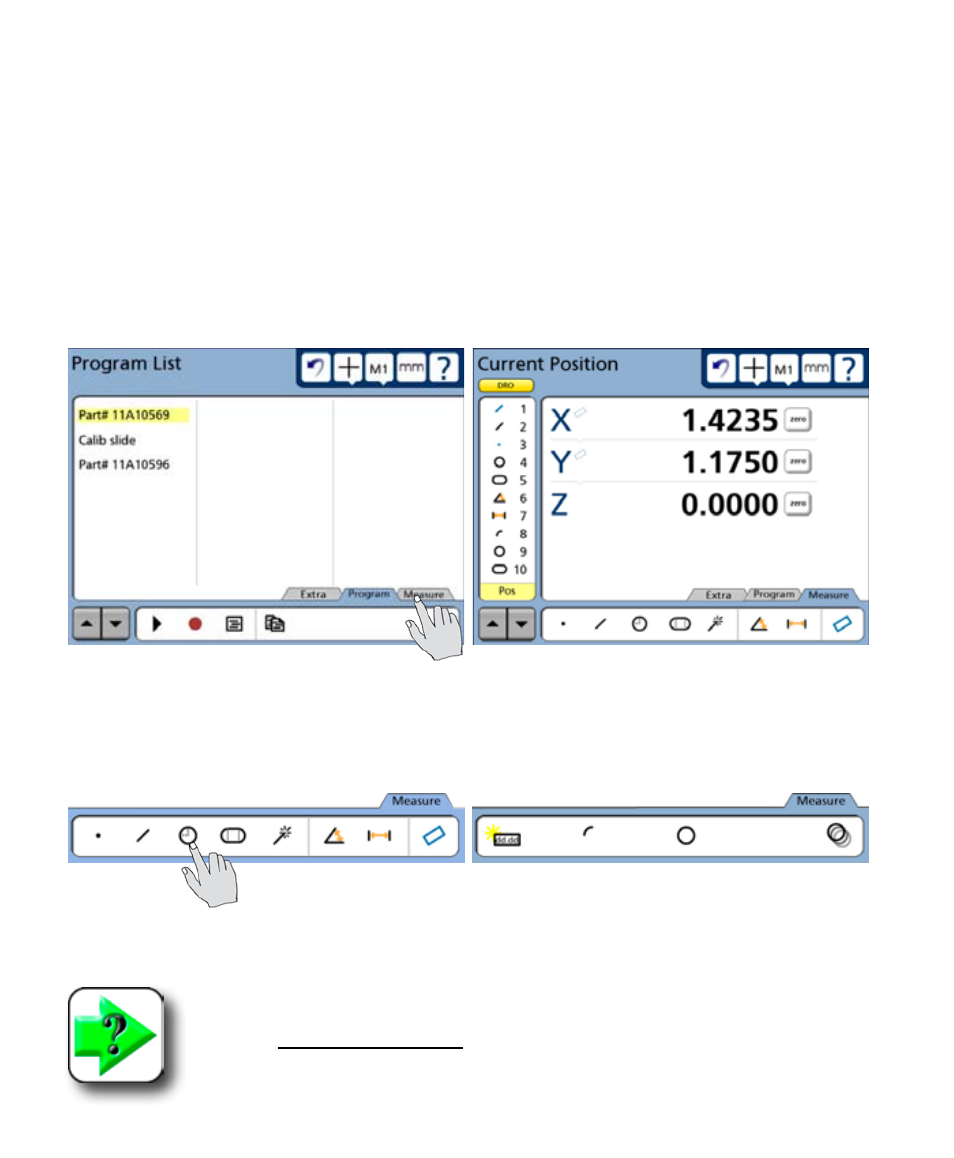

Touch the Measure tab... to display measure types
Touching the circle measure icon... also provides access to the arc measure type
